R$ 12.319,00
à vista no Pix ou Boleto
ou R$ 12.967,36 em 1x no cartão (via site)
ou R$ 13.687,77 no cartão em até 10x sem juros (apenas na loja física)
R$ 12.319,00
à vista no Pix ou Boleto
R$ 12.967,36
em 1x no cartão (via site)
R$ 13.687,77 no cartão
em até 10x sem juros
(apenas na loja física)
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 84733011
Condição de CSE-743TQ-R760B: Novo em embalagem comercial
Garantia de CSE-743TQ-R760B: 12 meses direto com a Net Computadores
| Especificações | |
| Form Factor | 4U chassis support for max. motherboard size - 12" x 13" E-ATX |
| Processor Support | Dual Xeon® 800 MHz FSB Processors |
| Dimensions | Height 7.0" (178mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross Weight 65 lbs (29.5kg) Available Colors Beige, Black |
| Expansion Slots | 7x PCI expansion slots |
| Drive Bays | Hot-swap 8x 3.5" SAS / SATA Hot-swap Drive Bays Peripheral Bay(s) 2x 5.25" Peripheral Drive Bay 1x 5.25" Bay For Floppy Drive |
| SAS / SATA Backplane | SAS / SATA Hard Drive Backplane |
| Front Panel | Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x USB Ports |
| System Cooling | Fans 4x 5000 RPM Hot-Swappable Cooling Fans 2x 5000 RPM Hot-Swappable Rear Exhaust Fan |
| System Monitoring | Chassis intrusion switch |
| Operating Environment (System) | Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing |
| Power Supply | 760W Triple-Redundant AC to DC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] AC Voltage 100 - 240V, 50-60Hz, 14 - 8 Amp DC Output 5V + 3.3V = 200W +5V 36.0 Amp +5V standby 3.5 Amp +12V 50.0 Amp (combined) -12V 1.0 AAmp +3.3V 36.0 Amp |
| Regulatory (Power Supply) | Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant |
| 1. Triple Redundant 760W Power Supply 2. 8x 3.5" SAS / SATA Hot-swappable Drive Bays 3. 2x 5.25" Peripheral Drive Bays 4. 1x 5.25" Drive Bay For 3.5" 1.44MB Floppy Drive 5. 7x Full-height, Full-length expansion slot 6. 4x 5000 RPM Hot-Swappable Cooling Fans 7. 2x 5000 RPM Hot-Swappable Rear-Exhaust Fans 8. 2x Front USB Ports 9. Locking Bezel with Filter 10. Power Switch, Reset Switch & 6 LED Indicators |
Maiores detalhes de CSE-743TQ-R760B no site do fabricante:
http://www.supermicro.com/products/chassis/4U/743/SC743TQ-R760.cfm
Tags de CSE-743TQ-R760B: CSE-743TQ-R760B, Gabinetes Torre Server, SUPERMICRO, 84733011, Gabinete de Servidor, Chassis de Servidor, Gabinete Servidor, Gabinete para Servidor, Chassis Server, SUPERMICRO

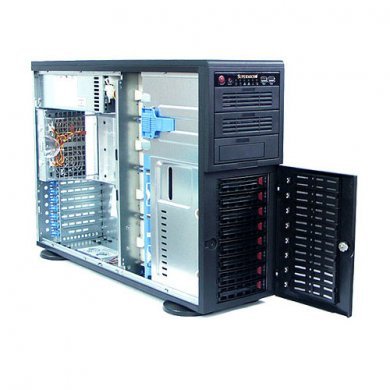

CSE-743TQ-R760B Chassis SUPERMICRO 4U 8 Baias SAS SATA
Condição de CSE-743TQ-R760B:
Novo em embalagem comercial
Garantia de CSE-743TQ-R760B:
12 meses direto com a Net Computadores
| Especificações | |
| Form Factor | 4U chassis support for max. motherboard size - 12" x 13" E-ATX |
| Processor Support | Dual Xeon® 800 MHz FSB Processors |
| Dimensions | Height 7.0" (178mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross Weight 65 lbs (29.5kg) Available Colors Beige, Black |
| Expansion Slots | 7x PCI expansion slots |
| Drive Bays | Hot-swap 8x 3.5" SAS / SATA Hot-swap Drive Bays Peripheral Bay(s) 2x 5.25" Peripheral Drive Bay 1x 5.25" Bay For Floppy Drive |
| SAS / SATA Backplane | SAS / SATA Hard Drive Backplane |
| Front Panel | Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x USB Ports |
| System Cooling | Fans 4x 5000 RPM Hot-Swappable Cooling Fans 2x 5000 RPM Hot-Swappable Rear Exhaust Fan |
| System Monitoring | Chassis intrusion switch |
| Operating Environment (System) | Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing |
| Power Supply | 760W Triple-Redundant AC to DC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] AC Voltage 100 - 240V, 50-60Hz, 14 - 8 Amp DC Output 5V + 3.3V = 200W +5V 36.0 Amp +5V standby 3.5 Amp +12V 50.0 Amp (combined) -12V 1.0 AAmp +3.3V 36.0 Amp |
| Regulatory (Power Supply) | Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant |
 | 1. Triple Redundant 760W Power Supply 2. 8x 3.5" SAS / SATA Hot-swappable Drive Bays 3. 2x 5.25" Peripheral Drive Bays 4. 1x 5.25" Drive Bay For 3.5" 1.44MB Floppy Drive 5. 7x Full-height, Full-length expansion slot 6. 4x 5000 RPM Hot-Swappable Cooling Fans 7. 2x 5000 RPM Hot-Swappable Rear-Exhaust Fans 8. 2x Front USB Ports 9. Locking Bezel with Filter 10. Power Switch, Reset Switch & 6 LED Indicators |
Maiores detalhes de CSE-743TQ-R760B no site do fabricante:
http://www.supermicro.com/products/chassis/4U/743/SC743TQ-R760.cfm
Tags de CSE-743TQ-R760B: CSE-743TQ-R760B, Gabinetes Torre Server, SUPERMICRO, 84733011, Gabinete de Servidor, Chassis de Servidor, Gabinete Servidor, Gabinete para Servidor, Chassis Server, SUPERMICRO
