Gabinetes / Gabinetes Server Rack / CSE-836E1-R800B

Gabinetes / Gabinetes Server Rack

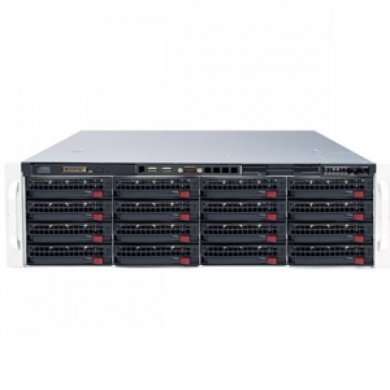

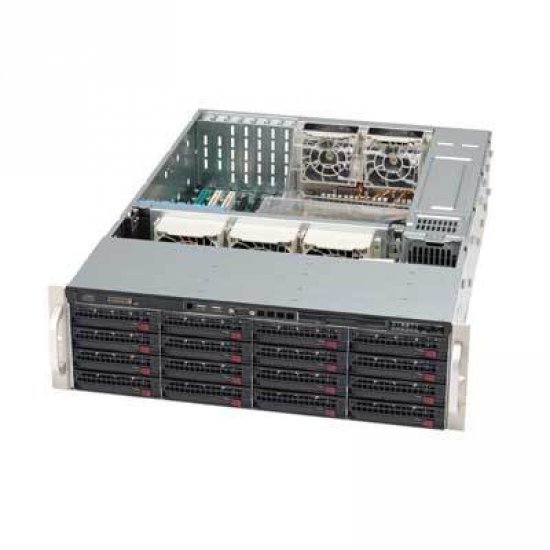

CSE-836E1-R800B SuperChassis Supermicro Rack 3U 16 Baias

Hot Swap SAS/SATA 3.5 Polegadas, 2 Fontes Redundantes 800W. Suporta Boards 13.68 x 13 Pol, Compatív

CSE-836E1-R800B SuperChassis Supermicro Rack 3U 16 Baias

*As imagens podem ser ilustrativas

SuperChassis Supermicro Rack 3U 16 Baias

avise-me quando disponível

R$ 4.520,00

à vista no Pix ou Boleto

ou R$ 4.757,06 em 1x no cartão (via site)

ou R$ 5.021,34 no cartão em até 10x sem juros (apenas na loja física)

R$ 4.520,00

à vista no Pix ou Boleto

R$ 4.757,06
em 1x no cartão (via site)

R$ 5.021,34 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733019

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733019

Cotação PJ mais de uma unidade

Indicar CSE-836E1-R800B

CSE-836E1-R800B SuperChassis Supermicro Rack 3U 16 Baias
Hot Swap SAS/SATA 3.5 Polegadas, 2 Fontes Redundantes 800W. Suporta Boards 13.68 x 13 Pol, Compatív

Condição de CSE-836E1-R800B: Novo em embalagem comercial

Garantia de CSE-836E1-R800B: 12 meses direto com a Net Computadores

Key Features
1. 800W Redundant Power Supply
2. 16 x 3.5" Hot-swappable SAS
    Drive Bays
3. 28-Port 3Gb/s SAS Expander with
    Enclosure Management
4. 1 x Slim DVD-ROM Drive
5. 7x Full-height, Full-length Expansion Slot
6. 100% Cooling Redundancy
7. Power Switch & 6 LED Indicators
8. Can be configured as either HEAD
    Or JBOD unit

Obs: Não acompanha placa mãe e processador.

Itens inclusos no chassis:
1x Chassis Rack 3U
2x Fontes Redundantes de 800W
1x Backplane HotSwap para 16 Hds 3.5 SAS/SATA
3x Coolers Redundantes
2x Coolers não Redundantes
1x Drive de DVD Slim

Product


CSE-836E1-R800B	SuperChassis 836E1-R800B (Black)


Form Factor

3U chassis support for max. motherboard size - 13.68" x 13"


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	5.2" (132mm)
Width	17.2" (437mm)
Depth	25.5" (648mm)
Gross Weight	72 lbs (32.7kg)
Available Colors	Black, Silver (OEM) *


Expansion Slots

• 7x full-height full-length expansion slots


Drive Bays

Hot-swap	16x 3.5" SAS/SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended


Backplane

3U Expander Backplane, features: • Scalability through cascading • 3Gb support • Inband SES-2 Enclosure Management • SAS/SATA support • Single input/output SFF 8087 connectors


Peripheral Drives

DVD-ROM	Slim DVD-ROM Drive
Floppy	Slim 1.44MB Floppy Drive (Optional)


Front Panel

Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED
Ports	2x USB Ports & DB9 COM Port

--------------------------------------------------------------------------------------

System Cooling

Fans	• 3x 80mm Hot-swap PWM Fans • 2x 80mm Rear-exhaust Fans


System Monitoring

Chassis intrusion switch


Operating Environment (System)

Operating Temperature Range	10 - 35°C (50° - 95°F)
Non-Operating Temperature Range	-40 - 70°C (-40° - 158°F)
Humidity Range	8 - 90% non-condensing
Non-Operating Humidity Range	5 - 95% non-condensing


Power Supply and Distributor

800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	100 - 240V, 50-60Hz, 10-4 Amp
+5V standby	4 Amp
+12V	66 Amp
+5V	30 Amp
+3.3V	24 Amp
-12V	0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
