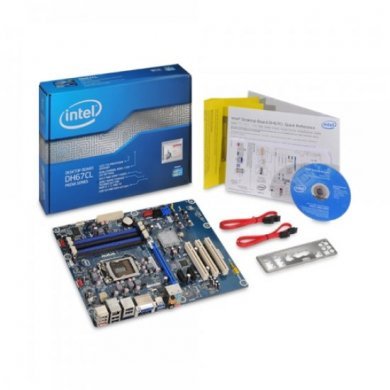

DH67CLB3 Desktop Board Intel Core i3 i5 i7

DH67CLB3 Desktop Board Intel Core i3 i5 i7 Socket 1155, 16 USB, Lan Intel PRO 10/100/1000, DVI-I + HDMI / 2 Portas SATA 6Gbs, Revision B3 / 32

Condição de DH67CLB3:
Novo em embalagem comercial

Garantia  de  DH67CLB3:
36 meses Assist. Técnica do Fabricante

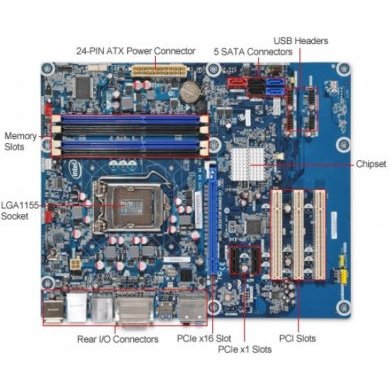

• Supports the 2nd-generation Intel® Core™ processors, including the Intel® Core™ i7 and Intel® Core™ i5 processors, and other Intel® processors in the LGA1155 package for exceptional performance
• Intel® H67 Express Chipset PCH
• Intel® Rapid Storage Technology for RAID 0, 1, 5, and 10
• Dual-channel DDR3 with four connectors for 1333 / 1066 MHz memory support (32 GB3 max):
  Supports 1.2 V to 1.8 V memory voltage control for maximum DIMM compatibility.
• PCI Express 2.0 x16 graphics connector
• Two PCI Express x1 connectors and three PCI connector

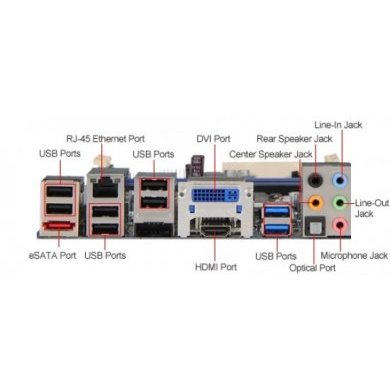

• Two SATA 6.0 Gb/s ports and three SATA 3.0 Gb/s ports, with one port compatible with an eSATA extension
• One eSATA 3.0 Gb/s port
• Two SuperSpeed USB 3.0 ports:
  5.0 Gb/s signaling rate for high-speed connections to peripherals.
• Fourteen Hi-Speed USB 2.0 ports:
  Six back panel ports and eight additional ports via four internal headers.
• Integrated Intel® PRO 10/100/1000 Network Connection for high speed and low power consumption
• Ten-channel Intel® High Definition Audio with multi-streaming capability:
  Features five stack analog audio ports, one optical S/PDIF out port, internal S/PDIF header, and front panel audio header.
• DVI-I + HDMI:
  Supports dual independent display and allows for the most flexible display output for Intel processors with Intel® HD Graphics.
• ATX Form Factor

• Intel® Core™ i7 and Intel® Core™ i5 processors and other Intel® processors in the LGA1155 package
• Supports Intel® 64 architecture

• Intel® 82H67 Platform Controller Hub (PCH)

• Two SATA 6.0 Gb/s ports
• Three SATA 3.0 Gb/s ports with one SATA port compatible with eSATA extension
• Two SuperSpeed USB 3.0 ports with 5.0 Gb/s link speed
• Fourteen Hi-Speed USB 2.0 ports (six back panel ports and eight additional ports via four internal headers)

• 32 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play
• Advanced configuration and power interface V3.0b, DMI 2.5
• Intel® Express BIOS update support

• Processor fan speed control
• Front and rear system chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management support

• Low-power design

• One PCI Express 2.0 x16 connector
• Two PCI Express 2.0 x1 connectors
• Three PCI connectors

• 7.1 + 2 multi-streaming Intel® High Definition Audio
• Five stack analog audio ports and one optical S/PDIF out port
• Internal S/PDIF header and front panel audio header

• DVI-I + HDMI: support dual independent display for Intel® processors with Intel® HD Graphics

• Four 240-pin DIMM connectors supporting up to two double-sided DIMMs
• Maximum system memory up to 32 GB6 using 8 GB double-sided DIMMs

• DDR3 1333 / 1066 SDRAM memory support
• Non-ECC Memory
• Dual- or single-channel operation support

• Memory voltage control from 1.2 V to 1.8 V
• 1.5 V standard JEDEC voltage

• Jumper access for BIOS maintenance mode

• Reset, HD LED, Power LEDs, power on/off
• Front-panel audio header

• Consumer IR emitter/receiver headers
• Chassis intrusion detect header

• ATX

• 9.6” x 9.6” (24.38cm x 24.38cm)

• ATX 12 V

• 0° C to +55° C

• -20° C to +70° C
