DNS-343 Unidade NAS D-Link 4 Baias RAID 0,1,5 and JBOD, HDD SATA 3.5in, Rede Gigabit ,USB Print Server Ports. Ds-Dh, RAID Status, IP A
Condição de DNS-343:
Novo em embalagem comercial
Garantia de DNS-343:
12 meses direto com a Net Computadores
The D-Link® 4-Bay Network Storage Enclosure (DNS-343) is the perfect way to store, share, and safeguard your documents, music, videos, and photos. With the D-Link tool-less installation, you can easily insert up to 4 SATA drives1 without any tools or attaching any cables. Plus, the DNS-343 is a scalable solution, allowing you to start off with one SATA hard disk drive (HDD) and add up to 3 more as you grow.
PROTECTION, PERFORMANCE AND FLEXIBILITY
By supporting RAID 0, 1, 5, and JBOD, the DNS-343 gives you a variety of data protection options to help avoid data loss due to hard drive failure. RAID 0 combines all drives in a striped configuration, splitting data evenly across the hard drives to provide the highest performance. RAID 1 causes two drives to mirror each other, providing maximum protection. If there are four drives present, you can set up two separate RAID 1 partitions. If one drive fails, the unaffected drive in the partition will continue to operate normally. Once you replace the failed drive, RAID 1 mirroring will resume and both drives will mirror each other again. Advanced RAID 5 offers the highest performance with the most reliable data recovery in the case of a drive failure. RAID 5 technology uses a clever algorithm to distribute your data over 4 SATA hard disk drives and, in the case of a hard drive failure, the DNS-343 will continue to with your data intact. Learn more about D-Link Green Technology |
SIMPLIFIED MANAGEMENT

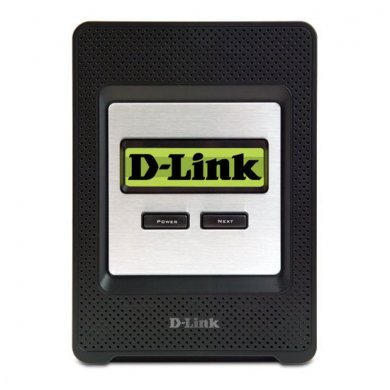

With the included backup software, you can create schedules and rules including real-time full or incremental backups and storage quotas for specific users and groups. Using backup software, you can automatically back up your data onto the DNS-343, creating a failsafe protection solution from accidental data loss on your PC. The 4-Bay Network Storage Enclosure features an OLED to display important information including IP address, hard drive statistics, temperature, RAID status, and server status (FTP and UPnP).USB PORT FUNCTIONALITY
The USB port can act as a print server port, allowing a USB printer to be added to your network without the need for a dedicated computer. The USB port can also support a Universal Power Supply (UPS) monitor that supports smart signaling over a USB connection. If a power outage were to occur, the compatible UPS monitor would allow the UPS unit to safely shut down the DNS-343. When power is restored, the UPS monitor would then automatically power up the DNS-343.
For flexible usage, the DNS-343 includes features such as a built-in FTP server2 to access files over the Internet and a UPnP Media server to stream digital content to compatible media players. With RAID 5 technology, an OLED that displays vital storage information, a management program that allows you to easily set rules and schedules, and a variety of built-in servers, the 4-Bay Network Storage Enclosure (DNS-343) is a secure expandable and reliable storage solution for the home and business.
WHAT THIS PRODUCT DOES
The 4-Bay Network Storage Enclosure (DNS-343) enables you to store and access your documents, music, photos, and videos across the network and on the Internet so family members, friends, or employees can access them. You can use this device to stream music, photos, and videos to UPnP AV compatible network media players.
SECURE BACKUP
The DNS-343 features RAID 5 technology, allowing you to securely store data across 4 hard disk drives. If one drive fails, the DNS-343 will continue to with your data intact.
| Specifications |
| Standards | | | IEEE 802.3 10Base-T Ethernet | | | IEEE 802.3u 100Base-TX Fast Ethernet | | | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
| Support Hard Drive Type |
|
| Ports | | | 1 Gigabit Ethernet Port with Jumbo Frame Support | | | 1 USB Print Server/UPS Monitoring Port |
|
| Drive Management | | | 5 Different Hard Drive Configurations | | | Scandisk | | | E-mail Alerts | | | Drive Quotas | | | Power Management |
|
| Device Management | | | Internet Explorer® v6 or other Java-enabled Browsers |
|
| LEDs | | | Power | | | LAN | | | HDD 1 | | | HDD 2 | | | HDD 3 | | | HDD 4 |
|
| OLED Display Screen | | | Device Name | | | UPnP Status (on/off) | | | IP Address | | | Formatting Percentage | | | Firmware Version | | | Hard Drive Space | | | Temperature | | | RAID Status | | | FTP Server Status (Started/Stopped) |
|
| Certifications | | | FCC Class B, CE, VCCI, CSA |
|
| Power Supply |
|
| Operating Temperature | | | 32°F to 104°F (0°C to 40°C) |
|
| Operating Humidity | | | 90% Maximum (Non-condensing) |
|
| Dimensions (W x D x H) | | | Item: 5.1 x 7.9 x 7.2 | | | Packaging: 12.4 x 10.5 x 11.2 |
|
| Warranty |
|
| Minimum System Requirements | | | Devices Supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet | | | Network Interface Card for Each Computer | | | CD-ROM Drive to View Product Documentation |
|
| Package Contents | | | 4-Bay Network Storage Enclosure | | | Power Adapter | | | Rubber Feet | | | CD ROM*** with: | | Installation Wizard | | | Product Documentation |
|
|
Maiores detalhes de DNS-343 no site do fabricante:
http://www.d-link.com/products/?pid=667
Tags de DNS-343: DNS-343, Storage e Acessórios, Unidades NAS, D-Link LatinAmerica, D-Link LatinAmerica
