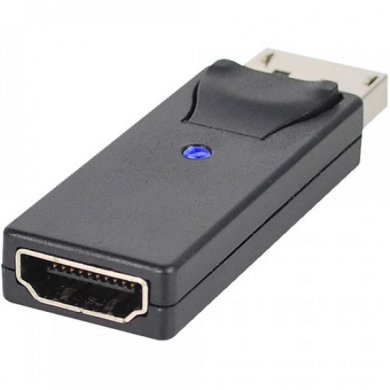

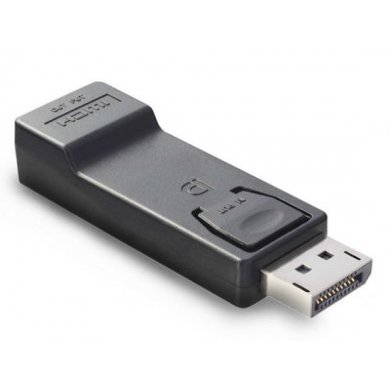

DPM-HDMIF-8 Adaptador Displayport Macho x HDMI Femea

DPM-HDMIF-8 Adaptador Displayport Macho x HDMI Femea

Condição de DPM-HDMIF-8:
Novo em embalagem comercial

Garantia  de  DPM-HDMIF-8:
12 meses direto com a Net Computadores

• Support Display Port 1.1a input and HDMI 1.3b output
• Support HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel)
• Support HDMI 12 per channel (36bit all channel deep color
• Support uncompressed audio such as LPCM
• Support compressed audio such as DTS digital, Dolby Digital, including DTS-HD and Dolby True HD
• Power from DisplayPort Source

  Specification

• Input Video Signal: 5 Volts p-p (TTL)
• Maximum Single Link Range: 1920 x 1080p
• Output Video: HDMI 1.3b
• Input/Output Connector: Input: Display Port Male 20 pin Output: HDMI Female Type A 19 pin
• Operating Frequency
• Vertical Frequency Range: 50/60Hz
• Video Amplifier Bandwidth: 2.25Gbps/225MHz
• Resolutions (HDTV)
• Interlaced(50&60Hz): 480i/576i/1080i
• Progressive(50&60Hz): 480p/576p/720p/1080p
• Operating Temperature: 0C to 70C
• Operating Humidity: 10% to 85% RH (no condensation)
• Storage Temperature: -10C to +80C
