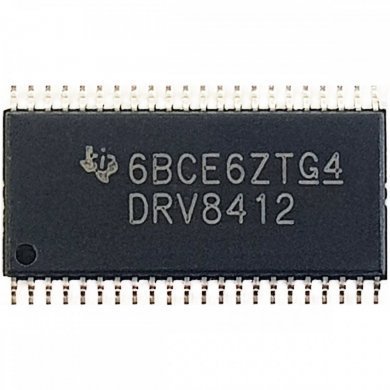

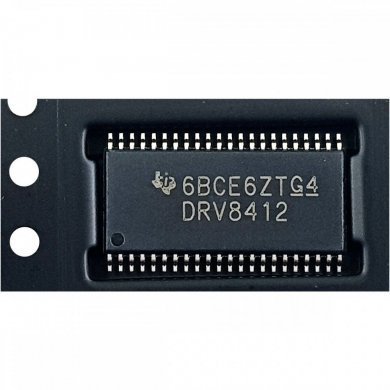

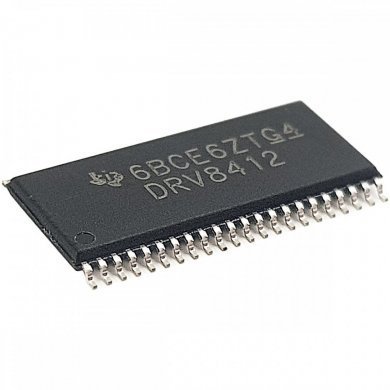

DRV8412DDWR Driver motor de passo 70V 6A Dual H-bridge

Name: DRV8412DDWR Driver motor de passo 70V 6A Dual H-bridge
Brand: Texas Instruments
SKU: DRV8412DDWR
Price: 25.00 BRL
Availability: InStock

HTSSOP-44

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 25,00

à vista no Pix ou Boleto

ou R$ 25,79 em 1x no cartão (via site)

ou R$ 27,23 no cartão em até 10x sem juros (apenas na loja física)

R$ 25,00

à vista no Pix ou Boleto

R$ 25,79
em 1x no cartão (via site)

R$ 27,23 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 25,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar DRV8412DDWR

DRV8412DDWR Driver motor de passo 70V 6A Dual H-bridge
HTSSOP-44

Condição de DRV8412DDWR: Novo em embalagem comercial

Garantia de DRV8412DDWR: 3 meses direto com a Net Computadores

Features for the DRV8412

High-Efficiency Power Stage (up to 97%) With Low RDS(on) MOSFETs (110 m- at TJ 25C)
Operating Supply Voltage up to 52 V
DRV8412 (Power Pad Down): up to 2 3-A Continuous Output Current (2 6-A Peak) in Dual Full-Bridge Mode or 6-A Continuous Current in Parallel Mode (12-A Peak)
DRV8432 (Power Pad Up): up to 2 7-A Continuous Output Current (2 12-A Peak) in Dual Full-Bridge Mode or 14-A Continuous Current in Parallel Mode (24-A Peak)
PWM Operating Frequency up to 500 kHz
Integrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overload, and Short Circuit
Programmable Cycle-by-Cycle Current Limit Protection
Independent Supply and Ground Pins for Each Half Bridge
Intelligent Gate Drive and Cross Conduction Prevention
No External Snubber or Schottky Diode is Required

Description for the DRV8412

The DRV841x2 are high-performance, integrated dual full-bridgemotor driver with an advanced protection system.
Because of the low RDS(on) of the H-Bridge MOSFETs andintelligent gate drive design, the efficiency of these motor drivers can be up to 97%. This highefficiency enables the use of smaller power supplies and heatsinks, and the devices are goodcandidates for energy-efficient applications.
The DRV841x2 requires two power supplies, one at 12 V for GVDD and VDD, and another upto 50 V for PVDD. The DRV841x2 can operate at up to 500-kHz switching frequency stillmaintaining precise control and high efficiency. The devices also have an innovative protectionsystem safeguarding the device against a wide range of fault conditions that could damage thesystem. These safeguards are short-circuit protection, overcurrent protection, undervoltageprotection, and two-stage thermal protection. The DRV841x2 has a current-limiting circuit thatprevents device shutdown during load transients such as motor start-up. A programmable overcurrentdetector allows adjustable current limit and protection level to meet different motorrequirements.
The DRV841x2 has unique independent supply and ground pins for each half-bridge. Thesepins make it possible to provide current measurement through external shunt resistor and supportmultiple motors with different power supply voltage requirements.

Manufacturer:	Texas Instruments
Product Category:	Motor / Motion / Ignition Controllers e Drivers
RoHS:
Product:	Fan / Motor Controllers / Drivers
Type:	PWM Motor Driver
Operating Supply Voltage:	0 V to 52.5 V
Output Current:	3 A
Operating Supply Current:	9 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	HTSSOP-44
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Features:	Outputs can be paralleled
Moisture Sensitive:	Yes
Number of Outputs:	2 Output
Operating Frequency:	500 kHz
Output Voltage:	0.2 V
Product Type:	Motor / Motion / Ignition Controllers

Maiores detalhes de DRV8412DDWR no site do fabricante:
https://www.ti.com/store/ti/en/p/product/?p=DRV8412DDWR

Tags de DRV8412DDWR: 8412, DRV8412DDWR, BD6384EFV, DRV8412, DRV8432, BD6384E, BD6384EF, Drivers BIPOLAR STEPPR MOTOR 5V 40PIN, Stepper Motor Controllers Drivers, Stepper Driver, driver para motor de passo, Bipolar stepper motor driver, controlador bipolar de motor, HTSSOP-B-40, ROHM Semiconductor, ci driver motor, ic driver motor de passo, HTSSOP-44, PWM motor driver, Texas Instruments
