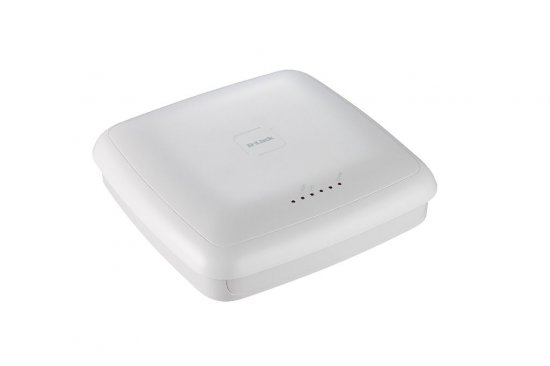

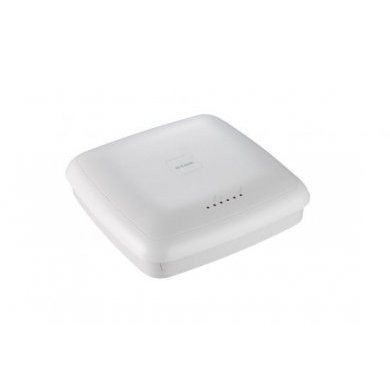

DWL-3600AP Access Point D-Link Wireless N 300 Mbps AP Single Band Gigabit POE
Condição de DWL-3600AP:
Novo em embalagem comercial
Garantia de DWL-3600AP:
6 meses Assist. Técnica do Fabricante
The DWL-3600AP is an indoor 802.11n Wi-Fi Access Point designed specifically for deployment in business environments. Highly manageable and capable of high data transmission speeds, the DWL-3600AP integrates seamlessly into existing network infrastructure and can be easily scaled up to meet future demands.
High Performance
The DWL-3600APs 2x2 MIMO 2.4GHz radio delivers up to 300 Mbps of network throughput. In addition, the DWL-3600AP features RadioProtect technology, which ensures all users receive an adequate level of service even in an environment where many users are accessing the network through legacy 802.11b and 802.11g devices.
Self-Configuring Cluster
For small businesses that need to deploy multiple Access Points but lack the resources to tackle the complicated task of network management, the DWL-3600APs self-configuring cluster feature offers the ideal solution. When a small number of DWL-3600APs is deployed on the network, they may be configured to form a self-configuring cluster. Once the administrator configures the master Access Point, the same configuration can then be applied to all remaining APs. Up to 16 Access points may be used to form a cluster.
Unified Management
When deployed in conjunction with D-Links DWC-1000 Wireless Controller or DWS-3016/DWS-4026 Unified Switch, up to 256 DWL-3600AP units can be centrally managed and provisioned, thus enabling the administrator to scale up the Wi-Fi network to cover a very large area.
Security
The DWL-3600AP supports the latest standards in Wi-Fi security, including WPA, WPA2, and 802.1x. In addition, the DWL-3600AP supports up to 16 Virtual Access Points (VAP), which allows the administrator to assign different access privileges to different groups of users. When used together with D-Links Wireless Controller, security can be raised to a new level. Rogue APs in the network can be easily detected, and the administrator will be immediately notified of any security threat.
Automatic RF Management
When a number of Access Points are deployed close to each other, interference may result if proper RF management is not implemented. When a DWL-3600AP senses a neighbor nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and allows the administrator to deploy APs more densely. To further minimise interference, when a nearby AP is operating on the same channel, the DWL 3600AP will automatically lower its transmission power. When, for whatever reason, the nearby AP is no longer present, the DWL-3600AP will increase its transmit power to expand coverage.
Quality of Service
The DWL-3600AP is WMM-certified, so in the event of network congestion, time-sensitive traffic can be given priority ahead of the rest of traffic. Furthermore, when a number of DWL-3600APs are in close proximity with each other, an Access Point will refuse new association requests once its resources are fully utilised. Instead, the association request will be picked up by a neighboring unit. This feature ensures that no single AP is overburdened others nearby sit idle.
3rd party support
The DWL-3600AP supports AirMagnet, one of the industrys most accurate software solutions for planning, designing and troubleshooting wireless networks for optimal performance, security and compliance. AirMagnet calculates the ideal quantity, placement and configuration of APs for a successful WLAN deployment. It also allows IT administrators to test and diagnose wireless performance issues. Additionally, a RFID-based location tracking system is supported with Aeroscout technology. Aeroscout allows tracking of persons, objects and assets by means of RFID tags which have built-in location capabilities. This is especially useful within healthcare, manufacturing and security sectors.
Specifivations:
Wi-Fi Interface
802.11b/g/n 2.4 GHz
LAN Interface
10/100/1000 Gigabit Ethernet
Antenna
2x2 MIMO embedded antenna with 4 internal antennas
Antenna Gain
4.7 dBi
Power Method
IEEE 802.3af Power Over Ethernet or external power adapter
Wireless Frequency
802.11b/g/n: 2.4 GHz - 2.497 GHz
Data Transfer Rate
802.11n: 6.5 Mbps-130 Mbps (20 MHz)
6.5 Mbps- 300 Mbps (40 Mbps)
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
System Management
HTTP/HTTPS Web-based User Interface
SNMP, SSH, Telnet Command Line
SSID
16 SSID
Station Isolation
Wireless Security
WEP
Dynamic WEP
WPA Personal/Enterprise
WPA2 Personal/Enterprise
Detection & Prevention
Rogue and Valid AP Classification
Authentication
MAC Address Filtering
802.1x
Power Adapter
5V/2.5A
Power over Ethernet
48 VDC +/- 10%
Stand-Alone Mode
WEP/WPA/WPA2 Security
Rogue AP Detection
Station Isolation
MAC Address Filtering
AP Load Balancing Setup
WDS
AP Clustering
QoS/WMM
Local Storage Configuration
Managed Mode (Managed by D-Link Wireless Switch/ Wireless Controller)
Centralized Management
Centralized Firmware Dispatch
Visualized AP Management Tool
Auto-Power Adjustment
Dynamic Auto-Channel Selection
L2 Fast Roaming
L3 Fast Roaming
Captive Portal
WEP/WPA/WPA2 Security
Rogue AP Detection
Rogue AP Mitigation
WIDS
Station Isolation
MAC Address Filtering
AP Load Balancing Setup
WDS
QoS/WMM
Dimensions
203 x 203 x 48 mm (7.99 x 7.99 x 1.89)
Weight
635 g (1.4 lbs)
Operating Temperature
(32°F to 104°F) 0° to 40°C
Operating Humidity
10% to 90% non-condensing
EMI/EMC/RF
FCF Class B
CE Class B
C-tick
IC
VCCI
NCC
TELEC
Wi-Fi®
Safety
cUL, LVD (EN60950-1)
UL2043
EN60601-1-2
