DYNATRONB3 Heatsink Dynatron B3 FCLGA 3647

For 1U Server up to CPU power 165 Watts

DYNATRONB3 - Dynatron

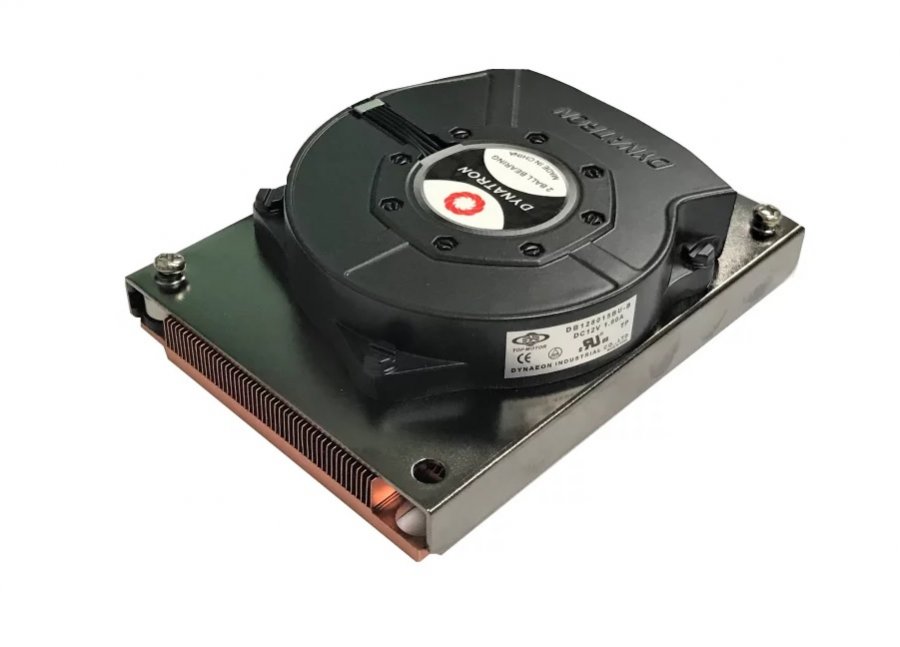

DYNATRONB3 Heatsink Dynatron  B3 FCLGA 3647
*As imagens podem ser ilustrativas
Heatsink Dynatron  B3 FCLGA 3647Heatsink Dynatron  B3 FCLGA 3647

R$ 719,00

à vista no Pix ou Boleto

ou R$ 756,17 em 1x no cartão (via site)

ou R$ 798,17 no cartão em até 10x sem juros (apenas na loja física)

R$ 719,00

à vista no Pix ou Boleto

R$ 756,17
em 1x no cartão (via site)

R$ 798,17 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84145910

R$ 719,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84145910

DYNATRONB3 Heatsink Dynatron B3 FCLGA 3647
For 1U Server up to CPU power 165 Watts

Condição de DYNATRONB3:    Novo em embalagem comercial

Garantia  de  DYNATRONB3:     12 meses direto com a Net Computadores



CPU Support
Intel
CPU Socket
FCLGA3647
Solution
1U Server and Up
Dimensions
107.0 x 80.5 x 28.0 mm
Weight
460 g
Material
Copper 1100 with Skived Fins
Fan Dimension
80 x 15 mm
Speed
At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 19.2 W
Air Flow
At Duty Cycle 20%: 3.0 CFM
At Duty Cycle 50%: 12.0 CFM
At Duty Cycle 100%: 21.0 CFM
Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 44.9 dBA
At Duty Cycle 100%: 57.1 dBA
Air Pressure
At Duty Cycle 20%: 1.5 mm-H2O
At Duty Cycle 50%: 23.2 mm-H2O
At Duty Cycle 100%: 70.9 mm-H2O
Lead Wire Pin Out
Lead Wire Pin Out
Pin1- (-)
Pin2- ( )
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed

Tags de DYNATRONB3: Dynatron B3, Cooler DYNATRON B3, Heatsink DYNATRON B3, Heatsink LGA 3647, Socket LGA 3647, LGA 3647, LGA3647, Dynatron

DYNATRONB3 Heatsink Dynatron B3 FCLGA 3647 For 1U Server up to CPU power 165 Watts

Condição de DYNATRONB3:
Novo em embalagem comercial

Garantia  de  DYNATRONB3:
12 meses direto com a Net Computadores


CPU Support
Intel
CPU Socket
FCLGA3647
Solution
1U Server and Up
Dimensions
107.0 x 80.5 x 28.0 mm
Weight
460 g
Material
Copper 1100 with Skived Fins
Fan Dimension
80 x 15 mm
Speed
At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 20%: 0.60 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 19.2 W
Air Flow
At Duty Cycle 20%: 3.0 CFM
At Duty Cycle 50%: 12.0 CFM
At Duty Cycle 100%: 21.0 CFM
Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 44.9 dBA
At Duty Cycle 100%: 57.1 dBA
Air Pressure
At Duty Cycle 20%: 1.5 mm-H2O
At Duty Cycle 50%: 23.2 mm-H2O
At Duty Cycle 100%: 70.9 mm-H2O
Lead Wire Pin Out
Lead Wire Pin Out
Pin1- (-)
Pin2- ( )
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed

Tags de DYNATRONB3: Dynatron B3, Cooler DYNATRON B3, Heatsink DYNATRON B3, Heatsink LGA 3647, Socket LGA 3647, LGA 3647, LGA3647, Dynatron
