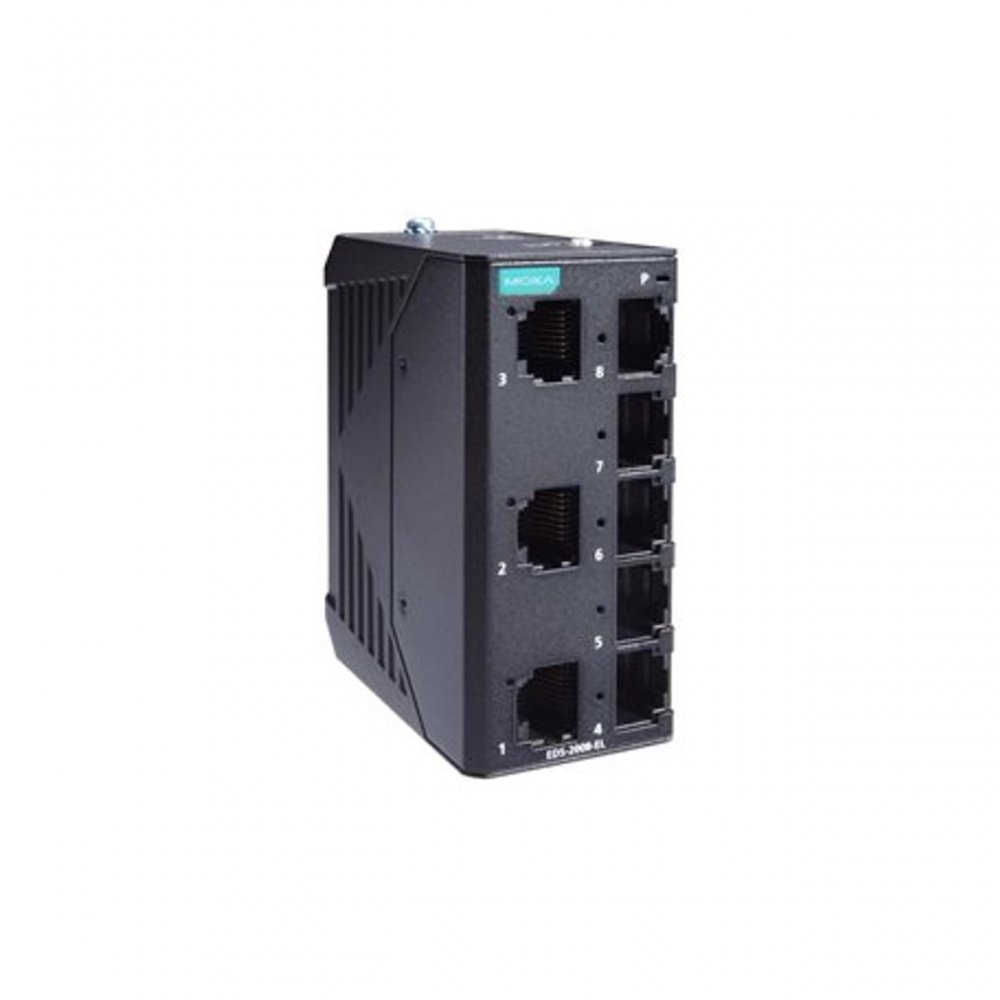

EDS-2008-ELP Moxa Switch Ethernet Industrial 10/100Base-TX 8P

8x 10/100Base-TX, RJ45

EDS-2008-ELP - MOXA
EDS-2008-ELP Moxa Switch Ethernet Industrial 10/100Base-TX 8P
*As imagens podem ser ilustrativas
Moxa Switch Ethernet Industrial 10/100Base-TX 8PMoxa Switch Ethernet Industrial 10/100Base-TX 8P

R$ 1.809,00

à vista no Pix ou Boleto

ou R$ 1.903,45 em 1x no cartão (via site)

ou R$ 2.009,20 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.809,00

à vista no Pix ou Boleto

R$ 1.903,45
em 1x no cartão (via site)

R$ 2.009,20 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176259

R$ 1.809,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

EDS-2008-ELP Moxa Switch Ethernet Industrial 10/100Base-TX 8P
8x 10/100Base-TX, RJ45

Condição de EDS-2008-ELP:    Novo em embalagem comercial

Garantia  de  EDS-2008-ELP:     12 meses direto com a Net Computadores




Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
EDS-2008-EL: 8
EDS-2008-EL-M-ST: 7
EDS-2008-EL-M-SC: 7
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
100BaseFX Ports (multi-mode SC connector)
EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector)
EDS-2008-EL-M-ST: 1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
Optical Fiber
Read more

Switch Properties
Processing Type
Store and Forward
MAC Table Size
2 K
Packet Buffer Size
768 kbits

DIP Switch Configuration
Ethernet Interface
Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters
Connection
1 removable 2-contact terminal block(s)
Input Current
EDS-2008-EL: 0.067A @ 24 VDC
EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
Input Voltage
12/24/48 VDC
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported

Physical Characteristics
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Weight
163 g (0.36 lb)
Housing
Metal
Dimensions
EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)
EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)

Environmental Limits
Ambient Relative Humidity
5 to 95% (non-condensing)
Operating Temperature
EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60C (14 to 140F)
EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75C (-40 to 167F)
Storage Temperature (package included)
-40 to 85C (-40 to 185F)

Standards and Certifications
Safety
UL 61010-2-201
EN 62368-1 (LVD)
EMC
EN 55032/35
EN 61000-6-2/-6-4
EMI
CISPR 22, 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32

MTBF
Time
3,696,394 hrs
Standards
Telcordia (Bellcore), GB

Tags de EDS-2008-ELP: EDS-2008-EL, Unmanaged Ind Ethernet Switch, 8 x 10/100Base-TX, RJ45, switch moxa industrial, switch industrial ethernet, switch moxa 5 portas rj45, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, moxa switch, switch moxa 8 portas, switch 8 portas moxa, switch base TX, switch moxa base tx, switch moxa cat6, switch moxa 8 portas base tx, switch moxa industrial 8 portas, switch moxa industrial base tx, switch moxa industrial 8 portas, switch moxa industrial 8p rj45,, MOXA

EDS-2008-ELP Moxa Switch Ethernet Industrial 10/100Base-TX 8P 8x 10/100Base-TX, RJ45

Condição de EDS-2008-ELP:
Novo em embalagem comercial

Garantia  de  EDS-2008-ELP:
12 meses direto com a Net Computadores



Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
EDS-2008-EL: 8
EDS-2008-EL-M-ST: 7
EDS-2008-EL-M-SC: 7
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
100BaseFX Ports (multi-mode SC connector)
EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector)
EDS-2008-EL-M-ST: 1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
Optical Fiber
Read more

Switch Properties
Processing Type
Store and Forward
MAC Table Size
2 K
Packet Buffer Size
768 kbits

DIP Switch Configuration
Ethernet Interface
Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters
Connection
1 removable 2-contact terminal block(s)
Input Current
EDS-2008-EL: 0.067A @ 24 VDC
EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
Input Voltage
12/24/48 VDC
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported

Physical Characteristics
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Weight
163 g (0.36 lb)
Housing
Metal
Dimensions
EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)
EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)

Environmental Limits
Ambient Relative Humidity
5 to 95% (non-condensing)
Operating Temperature
EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60C (14 to 140F)
EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75C (-40 to 167F)
Storage Temperature (package included)
-40 to 85C (-40 to 185F)

Standards and Certifications
Safety
UL 61010-2-201
EN 62368-1 (LVD)
EMC
EN 55032/35
EN 61000-6-2/-6-4
EMI
CISPR 22, 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-32

MTBF
Time
3,696,394 hrs
Standards
Telcordia (Bellcore), GB

Tags de EDS-2008-ELP: EDS-2008-EL, Unmanaged Ind Ethernet Switch, 8 x 10/100Base-TX, RJ45, switch moxa industrial, switch industrial ethernet, switch moxa 5 portas rj45, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, moxa switch, switch moxa 8 portas, switch 8 portas moxa, switch base TX, switch moxa base tx, switch moxa cat6, switch moxa 8 portas base tx, switch moxa industrial 8 portas, switch moxa industrial base tx, switch moxa industrial 8 portas, switch moxa industrial 8p rj45,, MOXA
