5x 10/100Base-TX, RJ45
R$ 1.765,00
à vista no Pix ou Boleto
ou R$ 1.857,14 em 1x no cartão (via site)
ou R$ 1.960,31 no cartão em até 10x sem juros (apenas na loja física)
R$ 1.765,00
à vista no Pix ou Boleto
R$ 1.857,14
em 1x no cartão (via site)
R$ 1.960,31 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 1.765,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176259
Condição de EDS-205A: Novo em embalagem comercial
Garantia de EDS-205A: 12 meses direto com a Net Computadores
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 5 |
| Auto negotiation speed | |
| Full/Half duplex mode | |
| Auto MDI/MDIX connection | |
| Standards | IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) and 100BaseFX | |
| IEEE 802.3x for flow control | |
| Optical Fiber | Read more |
| Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 384 kbits |
| Processing Type | Store and Forward |
| Power Parameters | |
| Connection | 1 removable 4contact terminal block(s) |
| Input Current | 0.09 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| DIP Switch Configuration | |
| Ethernet Interface | Broadcast storm protection |
| Physical Characteristics | |
| Housing | Aluminum |
| IP Rating | IP30 |
| Dimensions | 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) |
| Weight | 175 g (0.39 lb) |
| Installation | DINrail mounting, Wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | 10 to 60C (14 to 140F) |
| Storage Temperature (package included) | 40 to 85C (40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 6100042 ESD: Contact: 6 kV; Air: 8 kV |
| IEC 6100043 RS: 80 MHz to 1 GHz: 10 V/m | |
| IEC 6100044 EFT: Power: 2 kV; Signal: 1 kV | |
| IEC 6100045 Surge: Power: 2 kV; Signal: 2 kV | |
| IEC 6100046 CS: 10 V | |
| IEC 6100048 PFMF | |
| Hazardous Locations | IECEx, ATEX, Class I Division 2 |
| Maritime | ABS, DNVGL, LR, NK |
| Railway | EN 501214 |
| Safety | UL 508 |
| Shock | IEC 60068227 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 6006826 |
| Freefall | IEC 60068231 |
| MTBF | |
| Time | 3,040,784 hrs |
| Standards | Telcordia (Bellcore), GB |
Maiores detalhes de EDS-205A no site do fabricante:
https://www.moxa.com/en/products/industrial-network-infrastructure/ethernet-swit
Tags de EDS-205A: EDS-205, EDS 205, EDS205, Unmanaged Ind Ethernet Switch, 5 x 10/100Base-TX, RJ45, switch moxa industrial, switch industrial ethernet, switch moxa 5 portas rj45, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EDS-205, MOXA

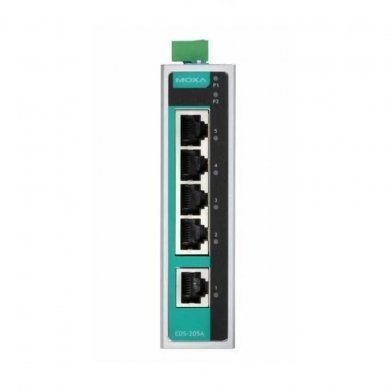

EDS-205A Moxa Switch Ethernet Industrial 5 Portas 5x 10/100Base-TX, RJ45
Condição de EDS-205A:
Novo em embalagem comercial
Garantia de EDS-205A:
12 meses direto com a Net Computadores
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 5 |
| Auto negotiation speed | |
| Full/Half duplex mode | |
| Auto MDI/MDIX connection | |
| Standards | IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) and 100BaseFX | |
| IEEE 802.3x for flow control | |
| Optical Fiber | Read more |
| Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 384 kbits |
| Processing Type | Store and Forward |
| Power Parameters | |
| Connection | 1 removable 4contact terminal block(s) |
| Input Current | 0.09 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| DIP Switch Configuration | |
| Ethernet Interface | Broadcast storm protection |
| Physical Characteristics | |
| Housing | Aluminum |
| IP Rating | IP30 |
| Dimensions | 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) |
| Weight | 175 g (0.39 lb) |
| Installation | DINrail mounting, Wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | 10 to 60C (14 to 140F) |
| Storage Temperature (package included) | 40 to 85C (40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 6100042 ESD: Contact: 6 kV; Air: 8 kV |
| IEC 6100043 RS: 80 MHz to 1 GHz: 10 V/m | |
| IEC 6100044 EFT: Power: 2 kV; Signal: 1 kV | |
| IEC 6100045 Surge: Power: 2 kV; Signal: 2 kV | |
| IEC 6100046 CS: 10 V | |
| IEC 6100048 PFMF | |
| Hazardous Locations | IECEx, ATEX, Class I Division 2 |
| Maritime | ABS, DNVGL, LR, NK |
| Railway | EN 501214 |
| Safety | UL 508 |
| Shock | IEC 60068227 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 6006826 |
| Freefall | IEC 60068231 |
| MTBF | |
| Time | 3,040,784 hrs |
| Standards | Telcordia (Bellcore), GB |
Maiores detalhes de EDS-205A no site do fabricante:
https://www.moxa.com/en/products/industrial-network-infrastructure/ethernet-swit
Tags de EDS-205A: EDS-205, EDS 205, EDS205, Unmanaged Ind Ethernet Switch, 5 x 10/100Base-TX, RJ45, switch moxa industrial, switch industrial ethernet, switch moxa 5 portas rj45, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EDS-205, MOXA
