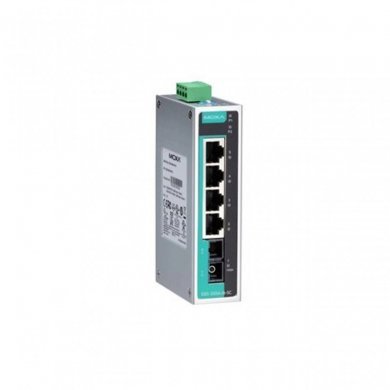

EDS-205A-M-SC Moxa Switch 4 portas 10/100BaseTX 1x 100Base FX

multi-mode port SC connector

EDS-205A-M-SC - MOXA
EDS-205A-M-SC Moxa Switch 4 portas 10/100BaseTX 1x 100Base FX
EDS-205A-M-SC Moxa Switch 4 portas 10/100BaseTX 1x 100Base FX
clique para ampliar
*As imagens podem ser ilustrativas
EDS-205A-M-SC Moxa Switch 4 portas 10/100BaseTX 1x 100Base FX

R$ 3.563,00

à vista no Pix ou Boleto

ou R$ 3.750,07 em 1x no cartão (via site)

ou R$ 3.958,41 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.563,00

à vista no Pix ou Boleto

R$ 3.750,07
em 1x no cartão (via site)

R$ 3.958,41 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176294

R$ 3.563,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

EDS-205A-M-SC Moxa Switch 4 portas 10/100BaseTX 1x 100Base FX
multi-mode port SC connector

Condição de EDS-205A-M-SC:    Novo em embalagem comercial

Garantia  de  EDS-205A-M-SC:     12 meses direto com a Net Computadores



Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDIX connection
100BaseFX Ports (multimode SC connector)
1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Optical Fiber
Read more

Switch Properties
MAC Table Size
1 K
Packet Buffer Size
384 kbits
Processing Type
Store and Forward
Power Parameters
Connection
1 removable 4contact terminal block(s)
Input Current
0.1 A @ 24 VDC
Input Voltage
12/24/48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
DIP Switch Configuration
Ethernet Interface
Broadcast storm protection
Physical Characteristics
Housing
Aluminum
IP Rating
IP30
Dimensions
30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Weight
175 g (0.39 lb)
Installation
DINrail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
10 to 60C (14 to 140F)
Storage Temperature (package included)
40 to 85C (40 to 185F)


Tags de EDS-205A-M-SC: EDS-205A-M-SC, switch moxa industrial fibra mm sc, switch 4 portas rj45 1 porta fibra mm sc, switch industrial fibra mm sc, switch industrial 4 portas fibra sc, switch industrial 4 portas fibra mm sc, switch industral fibra optica multimodo sc, switch industrial fibra multimodo sc,, MOXA

EDS-205A-M-SC Moxa Switch 4 portas 10/100BaseTX 1x 100Base FX multi-mode port SC connector

Condição de EDS-205A-M-SC:
Novo em embalagem comercial

Garantia  de  EDS-205A-M-SC:
12 meses direto com a Net Computadores


Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDIX connection
100BaseFX Ports (multimode SC connector)
1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Optical Fiber
Read more

Switch Properties
MAC Table Size
1 K
Packet Buffer Size
384 kbits
Processing Type
Store and Forward
Power Parameters
Connection
1 removable 4contact terminal block(s)
Input Current
0.1 A @ 24 VDC
Input Voltage
12/24/48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
DIP Switch Configuration
Ethernet Interface
Broadcast storm protection
Physical Characteristics
Housing
Aluminum
IP Rating
IP30
Dimensions
30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Weight
175 g (0.39 lb)
Installation
DINrail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
10 to 60C (14 to 140F)
Storage Temperature (package included)
40 to 85C (40 to 185F)


Tags de EDS-205A-M-SC: EDS-205A-M-SC, switch moxa industrial fibra mm sc, switch 4 portas rj45 1 porta fibra mm sc, switch industrial fibra mm sc, switch industrial 4 portas fibra sc, switch industrial 4 portas fibra mm sc, switch industral fibra optica multimodo sc, switch industrial fibra multimodo sc,, MOXA
