Fibra Óptica / CONVERSORES DE MÍDIA / MULTIMODO / EDS-208A-MM-SC

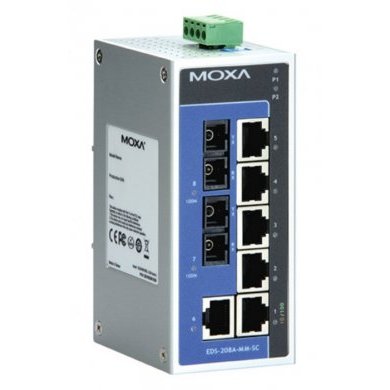

EDS-208A-MM-SC Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX

Name: EDS-208A-MM-SC Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX
Brand: MOXA
SKU: EDS-208A-MM-SC
Price: 6538.00 BRL
Availability: InStock

multimodo SC (não gerenciável)

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 6.538,00

à vista no Pix ou Boleto

ou R$ 6.881,59 em 1x no cartão (via site)

ou R$ 7.263,90 no cartão em até 10x sem juros (apenas na loja física)

R$ 6.538,00

à vista no Pix ou Boleto

R$ 6.881,59
em 1x no cartão (via site)

R$ 7.263,90 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 6.538,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar EDS-208A-MM-SC

EDS-208A-MM-SC Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX
multimodo SC (não gerenciável)

Condição de EDS-208A-MM-SC: Novo em embalagem comercial

Garantia de EDS-208A-MM-SC: 12 meses direto com a Net Computadores

Interface
DIP Switches	Enable/Disable broadcast storm protection
Fiber Ports	100BaseFX ports (SC/ST connector, multi-mode, single-mode)
LED Indicators	Power, 10/100M (TP port), 100M (fiber port)
RJ45 Ports	10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Power Requirements
Overload Current Protection	1.1 A
Reverse Polarity Protection	Present
Input Voltage	12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs
Input Current	EDS-205A: 0.1 A @ 24 V EDS-205A-M/S: 0.11 A @ 24 V EDS-208A: 0.13 A @ 24 V EDS-208A-M: 0.17 A @ 24 V EDS-208A-MM/SS: 0.22 A @ 24 V
Connection	1 removable 4-contact terminal block
Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control
Flow Control	IEEE 802.3x flow control, back pressure flow control
Processing Type	Store and Forward
Environmental Limits
Operating Temperature	Standard Models: -10 to 60C (14 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
MTBF (mean time between failures)
Time	425,000 hrs
Database	Telcordia (Bellcore), GB
Physical Characteristics
Weight	EDS-205A: 175 g EDS-208A: 275 g
Dimensions	EDS-205A: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) EDS-208A: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
Installation	DIN-Rail mounting, wall mounting (with optional kit)
Housing	Aluminum, IP30 protection
Switch Properties
MAC Table Size	1 K
Packet Buffer Size	512 Kbit
Standards and Certifications
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
Safety	UL 508, UL 60950-1
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
Rail Traffic	EN 50121-4
Note	Please check Moxa-s website for the most up-to-date certification status.
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Freefall	IEC 60068-2-32
Traffic Control	NEMA TS2
Wheeled Vehicles	e-Mark (E1) (EDS-208A only)
Marine	DNV, GL, LR, ABS, NK

Tags de EDS-208A-MM-SC: EDS-208A-MM-SC, EDS 208A MM SC, EDS208AMMSC, Conversor de midia, conversor midia moxa, moxa media converter, conversor de midia multimodo, conversor de fibra, =EDS-208A-MM-SC, MOXA

EDS-208A-MM-SC Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX multimodo SC (não gerenciável)

Condição de EDS-208A-MM-SC:
Novo em embalagem comercial

Garantia de EDS-208A-MM-SC:
12 meses direto com a Net Computadores

Interface
DIP Switches	Enable/Disable broadcast storm protection
Fiber Ports	100BaseFX ports (SC/ST connector, multi-mode, single-mode)
LED Indicators	Power, 10/100M (TP port), 100M (fiber port)
RJ45 Ports	10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Power Requirements
Overload Current Protection	1.1 A
Reverse Polarity Protection	Present
Input Voltage	12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs
Input Current	EDS-205A: 0.1 A @ 24 V EDS-205A-M/S: 0.11 A @ 24 V EDS-208A: 0.13 A @ 24 V EDS-208A-M: 0.17 A @ 24 V EDS-208A-MM/SS: 0.22 A @ 24 V
Connection	1 removable 4-contact terminal block
Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control
Flow Control	IEEE 802.3x flow control, back pressure flow control
Processing Type	Store and Forward
Environmental Limits
Operating Temperature	Standard Models: -10 to 60C (14 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
MTBF (mean time between failures)
Time	425,000 hrs
Database	Telcordia (Bellcore), GB
Physical Characteristics
Weight	EDS-205A: 175 g EDS-208A: 275 g
Dimensions	EDS-205A: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) EDS-208A: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
Installation	DIN-Rail mounting, wall mounting (with optional kit)
Housing	Aluminum, IP30 protection
Switch Properties
MAC Table Size	1 K
Packet Buffer Size	512 Kbit
Standards and Certifications
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
Safety	UL 508, UL 60950-1
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
Rail Traffic	EN 50121-4
Note	Please check Moxa-s website for the most up-to-date certification status.
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Freefall	IEC 60068-2-32
Traffic Control	NEMA TS2
Wheeled Vehicles	e-Mark (E1) (EDS-208A only)
Marine	DNV, GL, LR, ABS, NK
