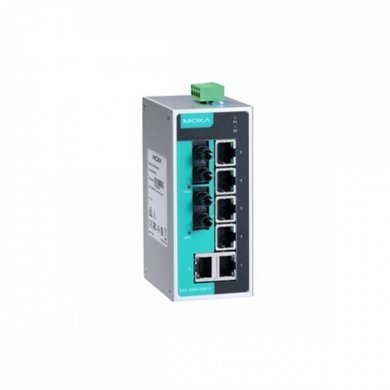

EDS-208A-MM-ST-T Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX

multimodo ST (não gerenciável) -40 à 75°C

EDS-208A-MM-ST-T - MOXA
EDS-208A-MM-ST-T Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX
EDS-208A-MM-ST-T Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX
clique para ampliar
*As imagens podem ser ilustrativas
EDS-208A-MM-ST-T Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX

R$ 6.730,00

à vista no Pix ou Boleto

ou R$ 7.083,99 em 1x no cartão (via site)

ou R$ 7.477,55 no cartão em até 10x sem juros (apenas na loja física)

R$ 6.730,00

à vista no Pix ou Boleto

R$ 7.083,99
em 1x no cartão (via site)

R$ 7.477,55 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176294

R$ 6.730,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

EDS-208A-MM-ST-T Moxa Switch Industrial 6x 10/100BaseTX 2x 100BaseFX
multimodo ST (não gerenciável) -40 à 75°C

Condição de EDS-208A-MM-ST-T:    Novo em embalagem comercial

Garantia  de  EDS-208A-MM-ST-T:     12 meses direto com a Net Computadores



- DIP Switches: Enable/Disable broadcast storm protection
- Fiber Ports: 100BaseFX ports (SC/ST connector, multi-mode, single-mode)
- LED Indicators: Power, 10/100M (TP port), 100M (fiber port)
- RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Overload Current Protection: 1.1 A
- Reverse Polarity Protection: Present
- Input Voltage: 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs
- Input Current:  EDS-208A-MM/SS:  0.22 A @ 24 V
- Connection: 1 removable 4-contact terminal block
- Standards: IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3x for Flow Control
- Flow Control: IEEE 802.3x flow control, back pressure flow control
- Processing Type: Store and Forward
- Operating Temperature:  Standard Models:  -10 to 60C (14 to 140F); Wide Temp. Models:  -40 to 75C (-40 to 167F)
- Storage Temperature: -40 to 85C (-40 to 185F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Time: 425,000 hrs
- Database: Telcordia (Bellcore), GB
- Weight:  EDS-208A:  275 g
- Dimensions: EDS-208A:  50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
- Installation: DIN-Rail mounting, wall mounting (with optional kit)
- Housing: Aluminum, IP30 protection
- MAC Table Size: 1 K
- Packet Buffer Size: 512 Kbit
- EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
- Safety: UL 508, UL 60950-1
- Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
- Rail Traffic: EN 50121-4
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
- Freefall: IEC 60068-2-32
- Traffic Control: NEMA TS2
- Wheeled Vehicles: e-Mark (E1) (EDS-208A only)
- Marine: DNV, GL, LR, ABS, NK


Tags de EDS-208A-MM-ST-T: EDS-208A-MM-ST-T, EDS208AMMSTT, EDS 208A MM ST T, Conversor de midia, conversor midia moxa, moxa media converter, conversor de midia multimodo, conversor de fibra, switch industrial multimodo st, switch industrial fibra optica ST, switch industrial fibra ST,, MOXA
