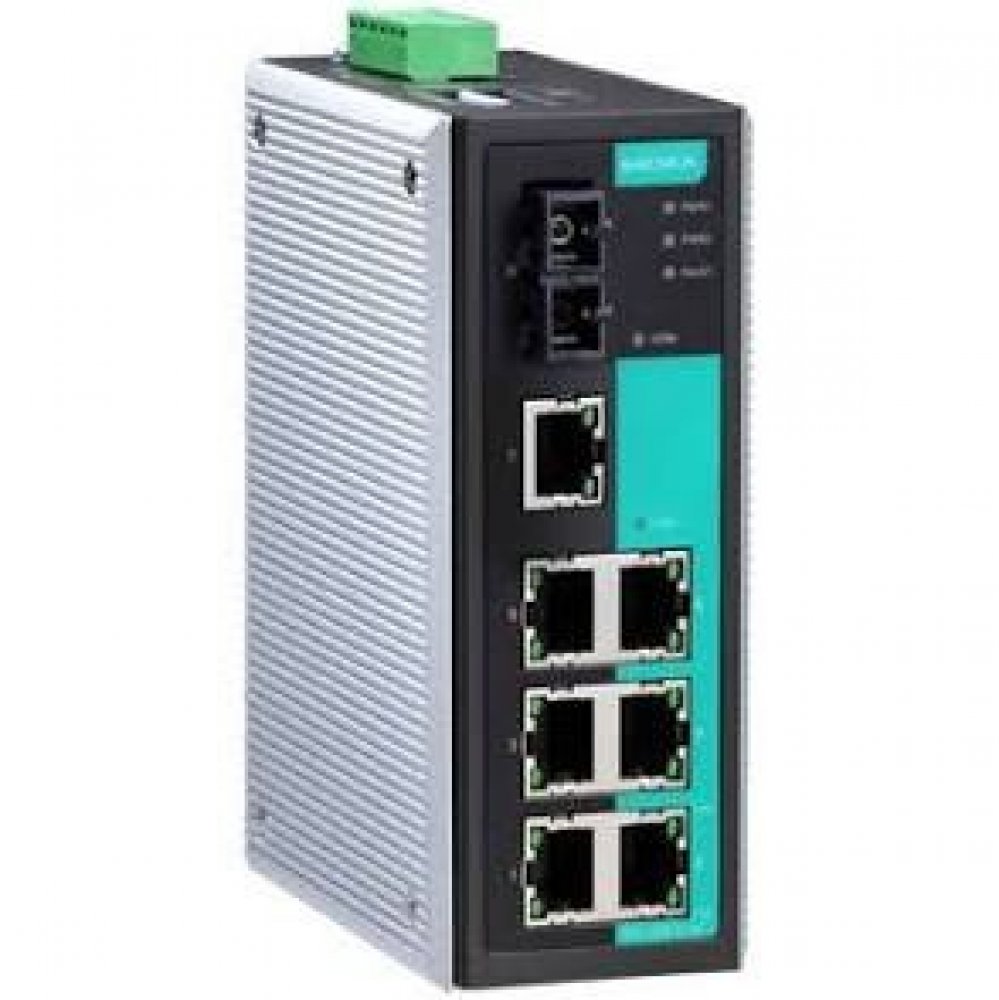

EDS-308-S-SC Moxa Switch Industrial Single mode SC

7x 10/100BaseT(X) Ports, 1x 100BaseFX Port

EDS-308-S-SC Moxa Switch Industrial Single mode SC

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 9.448,00

à vista no Pix ou Boleto

ou R$ 9.944,84 em 1x no cartão (via site)

ou R$ 10.497,33 no cartão em até 10x sem juros (apenas na loja física)

R$ 9.448,00

à vista no Pix ou Boleto

R$ 9.944,84
em 1x no cartão (via site)

R$ 10.497,33 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176259

R$ 9.448,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

Cotação PJ mais de uma unidade

Indicar EDS-308-S-SC

EDS-308-S-SC Moxa Switch Industrial Single mode SC
7x 10/100BaseT(X) Ports, 1x 100BaseFX Port

Condição de EDS-308-S-SC: Novo em embalagem comercial

Garantia de EDS-308-S-SC: 12 meses direto com a Net Computadores

Interface
DIP Switches:
Port alarm mask
Enable/disable broadcast storm protection (EDS316)

Fiber Ports: 100BaseFX ports (SC/ST connector)

LED Indicators: PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port)

Alarm Contact: 1 relay output with current carrying capacity of 1 A @ 24 VDC

RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDIX connection

Power Requirements
Overload Current Protection:
EDS305, EDS305M, EDS305S, EDS308: 1.1 A
EDS308M/S/MM/SS,: 1.6 A

Reverse Polarity Protection: Present

Input Voltage: 24 VDC (12 to 48 VDC), redundant dual inputs

Input Current:
EDS305: 0.13 A @ 24 V
EDS305M/S: 0.17 A @ 24 V
EDS308: 0.13 A @ 24 V
EDS308M/S: 0.21 A @ 24 V
EDS308MM/SS: 0.26 A @ 24 V

Connection: 1 removable 6pin terminal blocks

Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control

Flow Control: IEEE 802.3x flow control, back pressure flow control

Processing Type: Store and Forward

Environmental Limits
Operating Temperature:
Standard Models: 0 to 60C (32 to 140F)
Wide Temp. Models: 40 to 75C (40 to 167F)

Storage Temperature: 40 to 85C (40 to 185F)

Ambient Relative Humidity: 5 to 95% (noncondensing)

MTBF (mean time between failures)
Time:
EDS305 series: 422,000 hrs
EDS308 series: 255,000 hrs

Database: MILHDBK217F, GB 25C

Physical Characteristics
Weight: 790 g

Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Installation: DINRail mounting, wall mounting (with optional kit)

Housing: Metal, IP30 protection

Switch Properties
MAC Table Size: 1 K (EDS305/308/309), 4 K (EDS316)
Packet Buffer Size: n/a (EDS305), 512 Kbit (EDS308/309), 1.25 Mbit (EDS316)

Standards and Certifications
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

Safety:
EDS305 Series: UL 508, UL 609501, CSA C22.2 No. 609501
EDS308Series: UL 508, UL 609501, CSA C22.2 No. 609501, EN 609501

Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC (EDS316 Series V2.0 pending)

Note: Please check Moxas website for the most uptodate certification status.

Shock: IEC 60068227

Vibration: IEC 6006826

EMS:
EN 6100042 (ESD) Level 3, EN 6100043 (RS) Level 3,
EN 6100044 (EFT) Level 3, EN 6100045 (Surge) Level 3,
EN 6100046 (CS) (EDS305/308: Level 2; EDS309/316: Level 3)

Freefall: IEC 60068232

Marine: DNV, GL
