Rede / Switch até 10 Portas / EDS-405A

Rede / Switch até 10 Portas

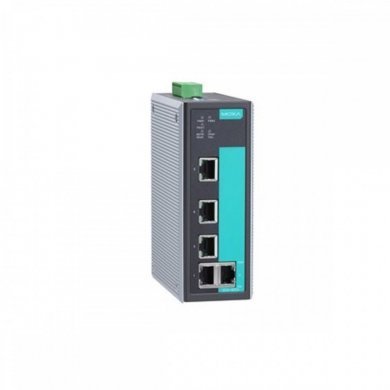

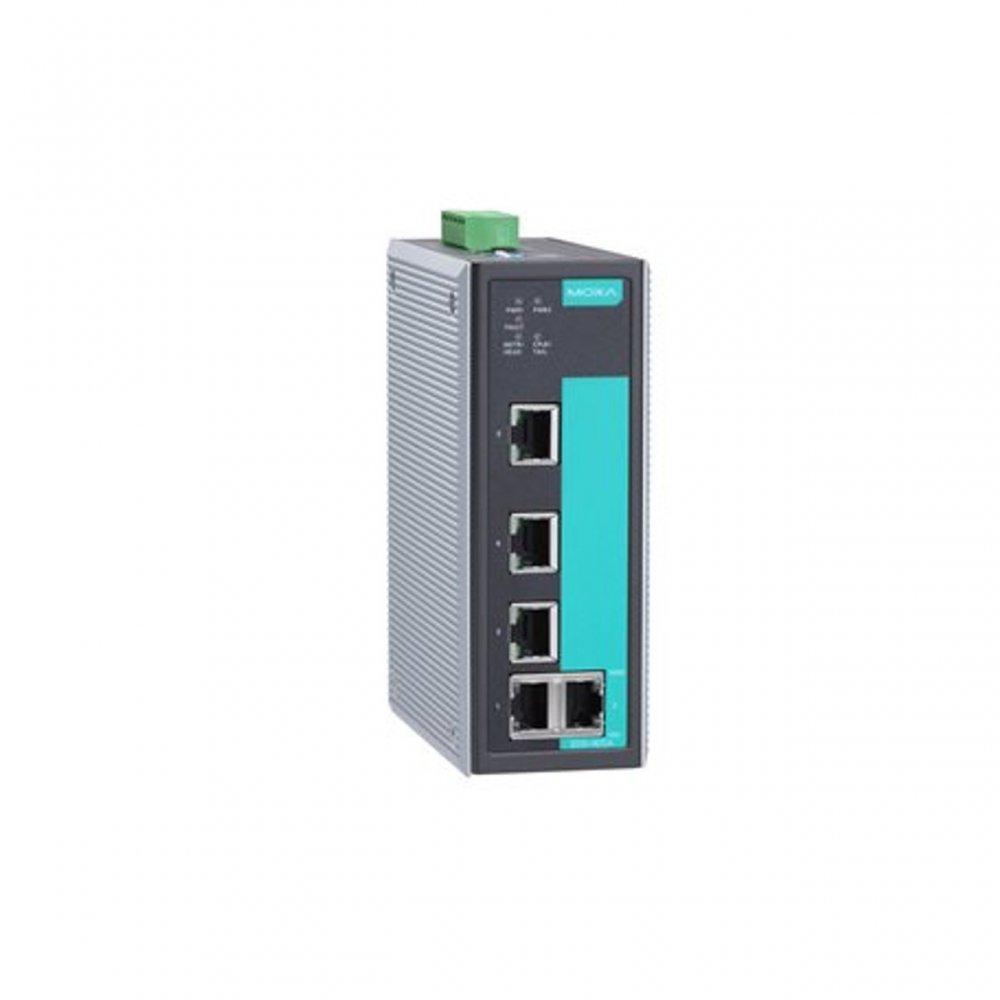

EDS-405A MOXA INDUSTRIAL ETHERNET SWITCH 5 10/100 BaseTx

*As imagens podem ser ilustrativas

MOXA INDUSTRIAL ETHERNET SWITCH 5 10/100 BaseTx

envio de 30 a 60 dias uteis

R$ 7.498,00

à vista no Pix ou Boleto

ou R$ 7.891,89 em 1x no cartão (via site)

ou R$ 8.330,32 no cartão em até 10x sem juros (apenas na loja física)

R$ 7.498,00

à vista no Pix ou Boleto

R$ 7.891,89
em 1x no cartão (via site)

R$ 8.330,32 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 7.498,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar EDS-405A

EDS-405A MOXA INDUSTRIAL ETHERNET SWITCH 5 10/100 BaseTx

Condição de EDS-405A: Novo em embalagem comercial

Garantia de EDS-405A: 12 meses direto com a Net Computadores

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)

5
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

Optical Fiber
Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features
Filter

802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Industrial Protocols

EtherNet/IP, Modbus TCP

Management

Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols

RSTP, STP, Turbo Chain, Turbo Ring v1/v2

Time Management

NTP Server/Client, SNTP

Switch Properties
IGMP Groups

MAC Table Size

Max. No. of VLANs

Packet Buffer Size

1 Mbits

Priority Queues

VLAN ID Range

VID 1 to 4094

Serial Interface
Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration
Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Input/Output Interface
Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters
Input Voltage

12/24/48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

0.594 A @ 12 VDC
0.286 A @ 24 VDC
0.154 A @ 48 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Connection

1 removable 6-contact terminal block(s)

Physical Characteristics
Housing

Metal

IP Rating

IP30

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

650 g (1.44 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits
Operating Temperature

-10 to 60C (14 to 140F)

Storage Temperature (package included)

-40 to 85C (-40 to 185F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications
Safety

UL 508, UL 60950-1

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Hazardous Locations

ATEX, Class I Division 2

Maritime

Traffic Control

NEMA TS2

Freefall

IEC 60068-2-31

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

MTBF
Time

1,547,941 hrs

Standards

Telcordia (Bellcore), GB
