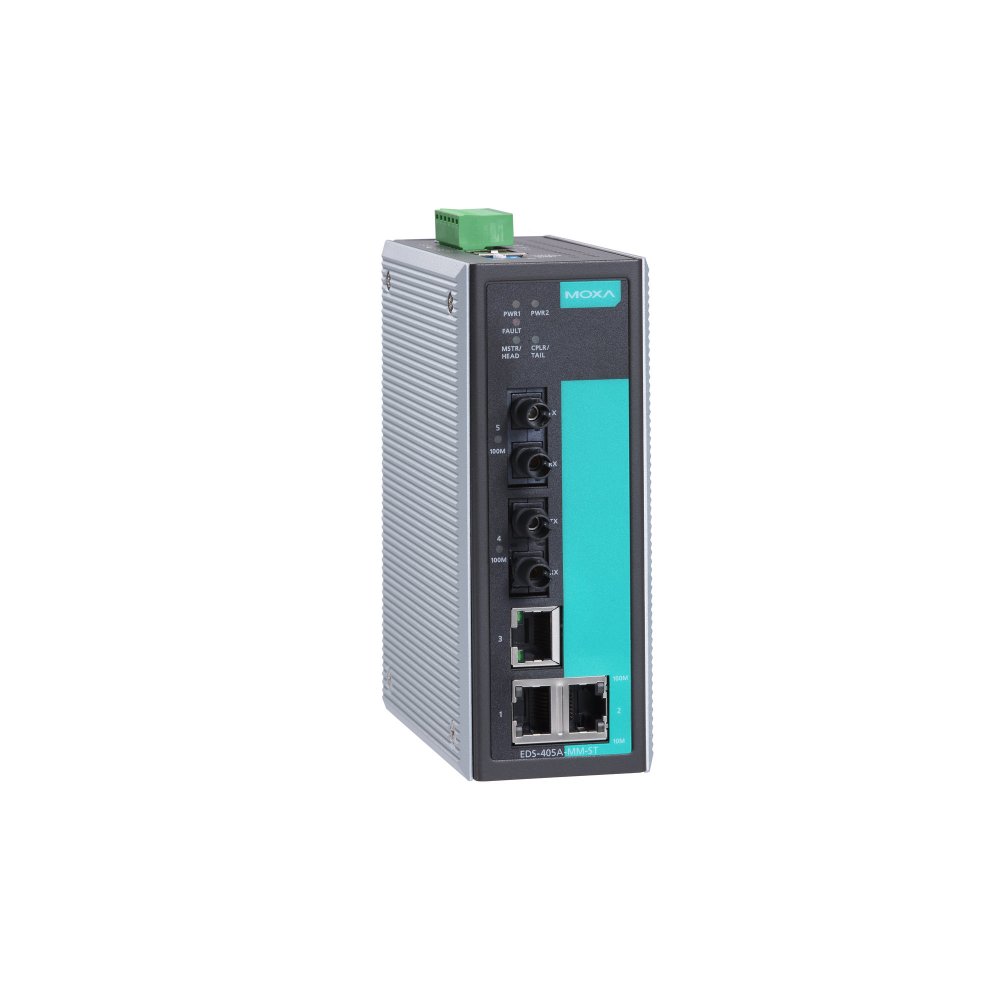

EDS-405A-MM-SC MOXA INDUSTRIAL ETHERNET SWITCH 3 10/100 BaseTX

*As imagens podem ser ilustrativas

MOXA INDUSTRIAL ETHERNET SWITCH 3 10/100 BaseTX

envio de 30 a 60 dias uteis

R$ 11.190,00

à vista no Pix ou Boleto

ou R$ 11.778,36 em 1x no cartão (via site)

ou R$ 12.432,71 no cartão em até 10x sem juros (apenas na loja física)

R$ 11.190,00

à vista no Pix ou Boleto

R$ 11.778,36
em 1x no cartão (via site)

R$ 12.432,71 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 11.190,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar EDS-405A-MM-SC

EDS-405A-MM-SC MOXA INDUSTRIAL ETHERNET SWITCH 3 10/100 BaseTX

Condição de EDS-405A-MM-SC: Novo em embalagem comercial

Garantia de EDS-405A-MM-SC: 12 meses direto com a Net Computadores

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 3
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDIX connection
100BaseFX Ports (multimode SC connector) 2
Optical Fiber Read more
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
Ethernet Software Features
Filter 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Portbased VLAN
Industrial Protocols EtherNet/IP, Modbus TCP
Management Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB Bridge MIB, Ethernetlike MIB, MIBII, PBRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Time Management NTP Server/Client, SNTP
Switch Properties
IGMP Groups 256
MAC Table Size 2 K
Max. No. of VLANs 64
Packet Buffer Size 1 Mbits
Priority Queues 4
VLAN ID Range VID 1 to 4094
Serial Interface
Console Port RS232 (TxD, RxD, GND), 10pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
Ethernet Interface Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
Alarm Contact Channels Relay output with current carrying capacity of 1 A @ 24 VDC
Power Parameters
Input Voltage 12/24/48 VDC, Redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Input Current 0.594 A @ 12 VDC
0.286 A @ 24 VDC
0.154 A @ 48 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Connection 1 removable 6contact terminal block(s)
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight 650 g (1.44 lb)
Installation DINrail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature 10 to 60C (14 to 140F)
Storage Temperature (package included) 40 to 85C (40 to 185F)
Ambient Relative Humidity 5 to 95% (noncondensing)
Standards and Certifications
Safety UL 508, UL 609501
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 6100042 ESD: Contact: 6 kV; Air: 8 kV
IEC 6100043 RS: 80 MHz to 1 GHz: 20 V/m
IEC 6100044 EFT: Power: 2 kV; Signal: 2 kV
IEC 6100045 Surge: Power: 2 kV; Signal: 2 kV
IEC 6100046 CS: 10 V
IEC 6100048 PFMF
Hazardous Locations ATEX, Class I Division 2
Maritime DNV
Traffic Control NEMA TS2
Freefall IEC 60068231
Shock IEC 60068227
Vibration IEC 6006826
