Rede / Switch até 10 Portas / EDS-405A-MM-ST-T

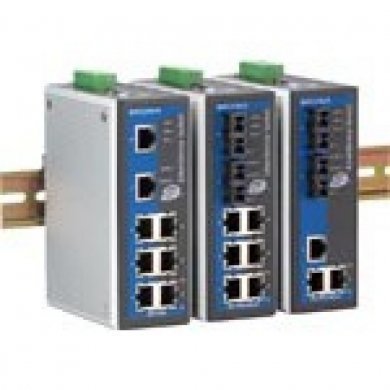

EDS-405A-MM-ST-T Moxa Switch 8 RS-232 RJ45 Portas multimodo ST

Name: EDS-405A-MM-ST-T Moxa Switch 8 RS-232 RJ45 Portas multimodo ST
Brand: MOXA
SKU: EDS-405A-MM-ST-T
Price: 9043.00 BRL
Availability: InStock

3x 10/100BTX e 2x 100BaseFX

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 9.043,00

à vista no Pix ou Boleto

ou R$ 9.518,55 em 1x no cartão (via site)

ou R$ 10.047,36 no cartão em até 10x sem juros (apenas na loja física)

R$ 9.043,00

à vista no Pix ou Boleto

R$ 9.518,55
em 1x no cartão (via site)

R$ 10.047,36 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176239

R$ 9.043,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176239

Cotação PJ mais de uma unidade

Indicar EDS-405A-MM-ST-T

EDS-405A-MM-ST-T Moxa Switch 8 RS-232 RJ45 Portas multimodo ST
3x 10/100BTX e 2x 100BaseFX

Condição de EDS-405A-MM-ST-T: Novo em embalagem comercial

Garantia de EDS-405A-MM-ST-T: 12 meses direto com a Net Computadores

Console Port   RS-232 (RJ45 connector)
DIP Switches   Turbo Ring, Master, Coupler, Reserve
Fiber Ports   100BaseFX ports (SC/ST connector)
LED Indicators   PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M
Alarm Contact   1 relay output with current carrying capacity of 1 A @ 24 VDC
RJ45 Ports   10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

Power Requirements
Overload Current Protection   Present
Reverse Polarity Protection   Present
Input Voltage   24 VDC (12 to 45 VDC), redundant dual inputs
Input Current   EDS-405A: 0.24 A @ 24 V
EDS-405A-MM/SS: 0.32 A @ 24 V
EDS-408A: 0.26 A @ 24 V
EDS-408A-MM/SS: 0.35 A @ 24 V
EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V
Connection   1 removable 6-contact terminal block

Technology
Standards   IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
Flow Control   IEEE 802.3x flow control, back pressure flow control
Protocols   IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client
MIB   MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Environmental Limits
Operating Temperature   Standard Models: 0 to 60C (32 to 140F)
Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature   -40 to 85C (-40 to 185F)
Ambient Relative Humidity   5 to 95% (non-condensing)
MTBF (mean time between failures)
Time   EDS-405A Series: 392,000 hrs
EDS-408A Series: 363,000 hrs
Database   Telcordia (Bellcore), GB

Physical Characteristics
Weight   EDS-405A, EDS-405A-MM, EDS-405A-SS: 650 g
EDS-408A, EDS-408A-MM, EDS-408A-SS: 650 g
EDS-408A-3M/3S/2M1S/1M2S: 890 g
Dimensions   53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Installation   DIN-Rail mounting, wall mounting (with optional kit)
Packing Size   EDS-405A, EDS 408A Series: 19.2 x 16.8 x 9.3 cm
Packing Weight   EDS-405A series: 1140 g
EDS-408A series: 1220 g
Housing   Metal, IP30 protection

Switch Properties
MAC Table Size   2 K (EDS-405A), 8 K (EDS-408A)
Packet Buffer Size   1 Mbit

Standards and Certifications
EMI   FCC Part 15 Subpart B Class A, EN 55022 Class A
Safety   UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1**
Hazardous Location   UL/cUL Class I Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nC IIC*
Rail Traffic   EN 50121-4**
Shock   IEC 60068-2-27
Vibration   IEC 60068-2-6
EMS   EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Freefall   IEC 60068-2-32
Traffic Control   NEMA TS2
Marine   EDS-405A, EDS-405A-MM, EDS-405A-SS: DNV, GL
EDS-408A, EDS-408A-MM, EDS-408A-SS: DNV, GL
EDS-408A-3M/3S/2M1S/1M2S: DNV, GL, LR, ABS, NK

Maiores detalhes de EDS-405A-MM-ST-T no site do fabricante:

Tags de EDS-405A-MM-ST-T: EDS-405A-MM-ST-T, EDS-405A-MM-ST, EDS-405A MM ST-T, Moxa Switch 8 Portas Gerenciavel 3x 10/100BTX, 2x 100BaseFX, switch Moxa, switch 8 portas, switch industrial, switch 8 portas, switch porta ST, switch gerenciavel moxa, switch moxa gerenciável, Moxa Switch 8 Portas multimodo ST-T, EDS-405A, =EDS-405A-MM-ST-T, MOXA
