Cotações
e dúvidas
e dúvidas
2x Portas Fibra Optica Multi-mode ST
R$ 15.321,00
à vista no Pix ou Boleto
ou R$ 16.126,52 em 1x no cartão (via site)
ou R$ 17.022,44 no cartão em até 10x sem juros (apenas na loja física)
R$ 15.321,00
à vista no Pix ou Boleto
R$ 16.126,52
em 1x no cartão (via site)
R$ 17.022,44 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 15.321,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176239
Condição de EDS-408A-MM-ST: Novo em embalagem comercial
Garantia de EDS-408A-MM-ST: 12 meses direto com a Net Computadores
| - Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Protocols | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| - Switch Properties | |
| MAC Table Size | 8 K (EDS-408A) |
| Packet Buffer Size | 1 Mbit |
| - Interface | |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| - Optical Fiber | |
| - Power Requirements | |
| Input Voltage | 24 VDC (12 to 45 VDC), redundant dual inputs |
| Input Current | EDS-408A: 0.26 A @ 24 V EDS-408A-MM/SS: 0.35 A @ 24 V EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| - Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Packing Size | EDS-405A, EDS 408A Series: 19.2 x 16.8 x 9.3 cm |
| Weight | EDS-408A, EDS-408A-MM, EDS-408A-SS: 650 g EDS-408A-3M/3S/2M1S/1M2S: 890 g |
| Packing Weight | EDS-408A series: 1220 g |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| - Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| - Standards and Certifications | |
| Safety | UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1** |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nC IIC* |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 |
| Marine | EDS-408A, EDS-408A-MM, EDS-408A-SS: DNV, GL EDS-408A-3M/3S/2M1S/1M2S: DNV, GL, LR, ABS, NK |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4** |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| - * EDS-405A, EDS-405A-MM/SS, EDS-408A, EDS-408A-MM/SS only ** EDS-408A series only | |
| Note | Please check Moxa-s website for the most up-to-date certification status. |
| - MTBF (mean time between failures) | |
| Time | EDS-408A Series: 363,000 hrs |
| Database | Telcordia (Bellcore), GB |
Tags de EDS-408A-MM-ST: EDS-408A-MM-ST, EDS408AMMST, EDS 408A MM ST, Moxa Switch 8 Portas Gerenciavel 6x 10/100BTX, switch Moxa, switch 8 portas, switch industrial, switch 8 portas, switch porta ST, switch gerenciavel moxa, switch moxa gerenciável, =EDS-408A-MM-ST, MOXA

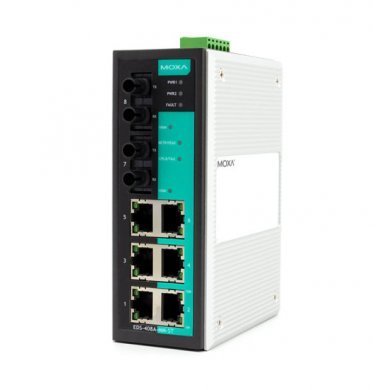

EDS-408A-MM-ST Moxa Switch 8 Portas Gerenciavel 6x 10/100BTX 2x Portas Fibra Optica Multi-mode ST
Condição de EDS-408A-MM-ST:
Novo em embalagem comercial
Garantia de EDS-408A-MM-ST:
12 meses direto com a Net Computadores
| - Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Protocols | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| - Switch Properties | |
| MAC Table Size | 8 K (EDS-408A) |
| Packet Buffer Size | 1 Mbit |
| - Interface | |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| - Optical Fiber | |
| - Power Requirements | |
| Input Voltage | 24 VDC (12 to 45 VDC), redundant dual inputs |
| Input Current | EDS-408A: 0.26 A @ 24 V EDS-408A-MM/SS: 0.35 A @ 24 V EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| - Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Packing Size | EDS-405A, EDS 408A Series: 19.2 x 16.8 x 9.3 cm |
| Weight | EDS-408A, EDS-408A-MM, EDS-408A-SS: 650 g EDS-408A-3M/3S/2M1S/1M2S: 890 g |
| Packing Weight | EDS-408A series: 1220 g |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| - Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| - Standards and Certifications | |
| Safety | UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1** |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nC IIC* |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 |
| Marine | EDS-408A, EDS-408A-MM, EDS-408A-SS: DNV, GL EDS-408A-3M/3S/2M1S/1M2S: DNV, GL, LR, ABS, NK |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4** |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| - * EDS-405A, EDS-405A-MM/SS, EDS-408A, EDS-408A-MM/SS only ** EDS-408A series only | |
| Note | Please check Moxa-s website for the most up-to-date certification status. |
| - MTBF (mean time between failures) | |
| Time | EDS-408A Series: 363,000 hrs |
| Database | Telcordia (Bellcore), GB |
Tags de EDS-408A-MM-ST: EDS-408A-MM-ST, EDS408AMMST, EDS 408A MM ST, Moxa Switch 8 Portas Gerenciavel 6x 10/100BTX, switch Moxa, switch 8 portas, switch industrial, switch 8 portas, switch porta ST, switch gerenciavel moxa, switch moxa gerenciável, =EDS-408A-MM-ST, MOXA
