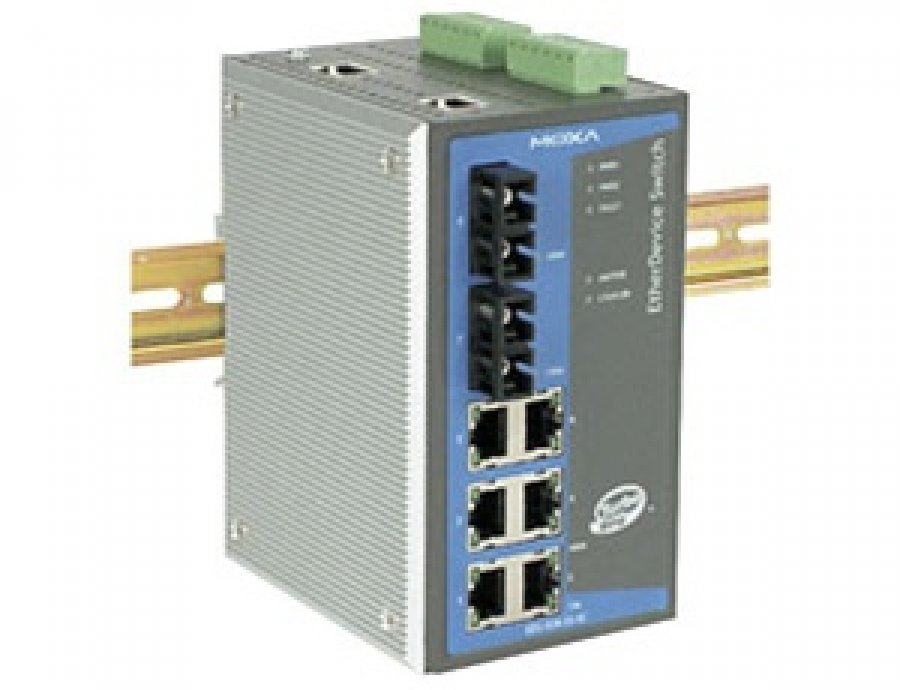

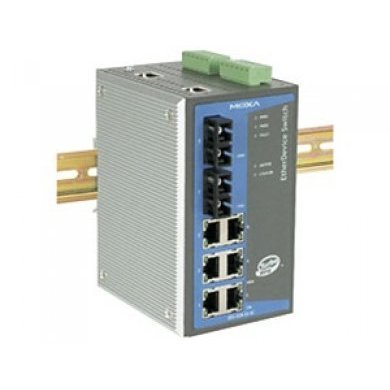

EDS-508A-SS-SC Moxa Conversor 8 Port Managed Ethernet Switch 6 X 10/100BTX ports, 2 x single-mode SC fiber ports
Condição de EDS-508A-SS-SC:
Novo em embalagem comercial
Garantia de EDS-508A-SS-SC:
12 meses direto com a Net Computadores
Moxa 8 port managed Ethernet switch w/(6) 10/100BTX ports e (2) single-mode SC fiber ports
Technology
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, GMRP, LACP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, SNMP Inform, EtherNet/IP, Modbus/TCP, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client
MIB MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues 4
Max. Number of Available VLANs 64
VLAN ID Range VID 1 to 4094
IGMP Groups 256
MAC Table Size 8 K
Packet Buffer Size 1 Mbit (EDS-505A/508A), 2 Mbit (EDS-516A)
Interface
Fiber Ports 100BaseFX ports (SC/ST connector)
RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Console Port RS-232 (RJ45 connector)
DIP Switches Turbo Ring, Master, Coupler, Reserve (EDS-505A/508A series only)
LED Indicators PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M
Alarm Contact 2 relay outputs with current carrying capacity of 1 A @ 24 VDC
Digital Inputs 2 inputs with the same ground, but electrically isolated from the electronics.
13 to 30V for state -1-
-30 to 3V for state -0-
Max. input current: 8 mA
Optical Fiber
Power Requirements
Input Voltage 24 VDC (12 to 45 VDC), redundant dual inputs
Input Current EDS-505A: 0.24 A @ 24 V
EDS-505A-MM/SS: 0.35 A @ 24 V
EDS-508A: 0.26A @ 24 V
EDS-508A-MM/SS: 0.36 A @ 24 V
Overload Current Protection Present
Connection 2 removable 6-contact terminal blocks
Reverse Polarity Protection Present
Physical Characteristics
Housing Metal, IP30 protection
Dimensions 80.2 x 135 x 105 mm
(3.16 x 5.31 x 4.13 in)
Weight 1040 g
Installation DIN-Rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature Standard Models: 0 to 60C (32 to 140F)
Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature -40 to 85C (-40 to 185F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
Safety UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
Hazardous Location UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS
EN 61000-4-2 (ESD) (EDS-505A/508A: Level 3; EDS-516A: Level 2),
EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,
EN 61000-4-8
Marine DNV, GL
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa-s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time EDS-505A Series: 352,000 hrs
EDS-508A Series: 339,000 hrs
Database Telcordia (Bellcore), GB
