Rede / Switch até 10 Portas / EDS-510A-1GT2SFP

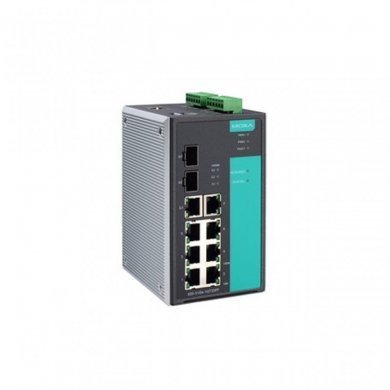

EDS-510A-1GT2SFP Moxa Switch PoE 8 Portas 2 Combo Gigabit

Name: EDS-510A-1GT2SFP Moxa Switch PoE 8 Portas 2 Combo Gigabit
Brand: MOXA
SKU: EDS-510A-1GT2SFP
Price: 26516.00 BRL
Availability: InStock

Managed Ethernet PoE Switch with 8 PoE+ Ports and 2 Combo Gigabit Ports

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 26.516,00

à vista no Pix ou Boleto

ou R$ 27.911,47 em 1x no cartão (via site)

ou R$ 29.462,10 no cartão em até 10x sem juros (apenas na loja física)

R$ 26.516,00

à vista no Pix ou Boleto

R$ 27.911,47
em 1x no cartão (via site)

R$ 29.462,10 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176239

R$ 26.516,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176239

Cotação PJ mais de uma unidade

Indicar EDS-510A-1GT2SFP

EDS-510A-1GT2SFP Moxa Switch PoE 8 Portas 2 Combo Gigabit
Managed Ethernet PoE Switch with 8 PoE+ Ports and 2 Combo Gigabit Ports

Condição de EDS-510A-1GT2SFP: Novo em embalagem comercial

Garantia de EDS-510A-1GT2SFP: 12 meses direto com a Net Computadores

Input/Output Interface
Alarm Contact Channels 2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels 2
Digital Inputs 13 to 30 V for state 1, 30 to 3 V for state 0, Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 7
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDIX connection
10/100/1000BaseT(X) Ports (RJ45 connector) 1
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDIX connection
1000BaseSFP Slots 2
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.1X for authentication
IEEE 802.1D2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
Filter 802.1Q VLAN, Portbased VLAN, IGMP v1/v2, GVRP, GMRP
Industrial Protocols EtherNet/IP, Modbus TCP
Management IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
MIB, MIBII, Bridge MIB, Ethernetlike MIB, PBRIDGE MIB, QBRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
Security HTTPS/SSL, RADIUS, TACACS , Port Lock, SSH
Time Management NTP Server/Client, SNTP
Switch Properties
IGMP Groups 256
MAC Table Size 8 K
Max. No. of VLANs 64
Packet Buffer Size 1 Mbits
Priority Queues 4
VLAN ID Range VID 1 to 4094
LED Interface
LED Indicators PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL
Serial Interface
Console Port RS232 (TxD, RxD, GND), 10pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
Ethernet Interface Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection 2 removable 6contact terminal block(s)
Input Current 0.38 A @ 24 VDC
Input Voltage 24 VDC, Redundant dual inputs
Operating Voltage 12 to 45 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight 1170 g (2.58 lb)
Installation DINrail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature 10 to 60C (14 to 140F)
Storage Temperature (package included) 40 to 85C (40 to 185F)
Ambient Relative Humidity 5 to 95% (noncondensing)
Standards and Certifications
Safety EN 609501, UL 609501, CSA C22.2 No. 609501, UL 508
Hazardous Locations ATEX, Class I Division 2
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 6100042 ESD: Contact: 6 kV; Air: 8 kV
IEC 6100043 RS: 80 MHz to 1 GHz: 20 V/m
IEC 6100044 EFT: Power: 2 kV; Signal: 2 kV
IEC 6100045 Surge: Power: 2 kV; Signal: 2 kV
IEC 6100046 CS: 10 V
IEC 6100048 PFMF
Traffic Control NEMA TS2
Shock IEC 60068227
Freefall IEC 60068231
Vibration IEC 6006826
MTBF
Time 204,901 hrs
Standards Telcordia (Bellcore), GB
