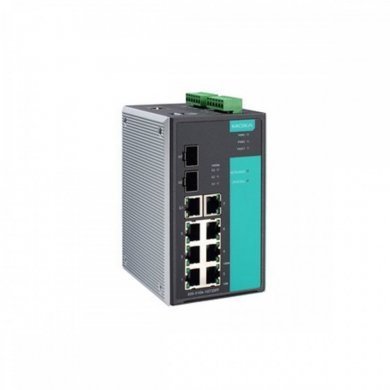

EDS-510A-1GT2SFP-T Moxa Switch PoE 7 Portas POE 2 Combo Gigabit

EDS-510A-1GT2SFP-T Moxa Switch PoE 7 Portas POE 2 Combo Gigabit Managed Ethernet -40 to 75°C operating temperature

Condição de EDS-510A-1GT2SFP-T:
Novo em embalagem comercial

Garantia  de   EDS-510A-1GT2SFP-T:
12 meses direto com a Net Computadores

• 2, Relay output with current carrying capacity of 1 A @ 24 VDC

• 2

• 13 to 30 V for state 1
  -30 to 3 V for state 0
  Max. input current: 8 mA

• 7
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection

• 1
  Auto negotiation speed
  Full/Half duplex mode
  Auto MDI/MDI-X connection

• 2

• IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  IEEE 802.1X for authentication
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1p for Class of Service
  IEEE 802.3x for flow control
  IEEE 802.3ad for Port Trunk with LACP

• 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP

• EtherNet/IP, Modbus TCP

• IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP

• MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

• STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2

• HTTPS/SSL, RADIUS, TACACS , Port Lock, SSH

• NTP Server/Client, SNTP

• 256

• 8 K

• 64

• 1 Mbits

• 4

• VID 1 to 4094

• PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL

• RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

• Turbo Ring, Master, Coupler, Reserve

• 2 removable 6-contact terminal block(s)

• 0.38 A @ 24 VDC

• 24 VDC, Redundant dual inputs

• 12 to 45 VDC

• Supported

• Supported

• Metal

• IP30

• DIN-rail mounting, Wall mounting (with optional kit)

• -40 to 75C (-40 to 167F)

• -40 to 85C (-40 to 185F)

• 5 to 95% (non-condensing)

• EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508

• ATEX, Class I Division 2

• EN 55032/24

• CISPR 32, FCC Part 15B Class A

• IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• NEMA TS2

• IEC 60068-2-27

• IEC 60068-2-31

• IEC 60068-2-6

• 204,901 hrs

• Telcordia (Bellcore), GB
