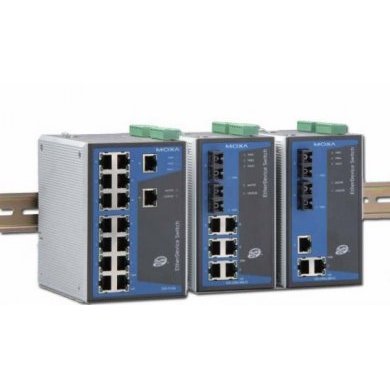

EDS-516A Moxa Switch 16 Portas 10/100Base-TX Gerenciável

Name: EDS-516A Moxa Switch 16 Portas 10/100Base-TX Gerenciável
Brand: MOXA
SKU: EDS-516A
Price: 24504.00 BRL
Availability: InStock

VLAN, IGMP Snooping, Port trunking, RMON and QoS

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 24.504,00

à vista no Pix ou Boleto

ou R$ 25.792,85 em 1x no cartão (via site)

ou R$ 27.225,78 no cartão em até 10x sem juros (apenas na loja física)

R$ 24.504,00

à vista no Pix ou Boleto

R$ 25.792,85
em 1x no cartão (via site)

R$ 27.225,78 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176259

R$ 24.504,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

Cotação PJ mais de uma unidade

Indicar EDS-516A

EDS-516A Moxa Switch 16 Portas 10/100Base-TX Gerenciável
VLAN, IGMP Snooping, Port trunking, RMON and QoS

Condição de EDS-516A: Novo em embalagem comercial

Garantia de EDS-516A: 12 meses direto com a Net Computadores

EDS-516A is a standalone 16-port managed Ethernet switch. With the technology of Fast Ethernet Redundant Turbo Ring (recovery time < 300 ms), EDS-516A increases the reliability and speed of your network backbone. EDS-516A also supports intelligent network management s, including QoS, IGMP Snooping/GMRP, VLAN, Port Trunking, SNMP V1/V2c/V3, IEEE 802.1X, and https/SSL.
Industrial Advanced Managed Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60C
Feature:

Industrial Networking Capability
	Redundant Ethernet Ring (recovery time < 300 ms at full load) and RSTP/STP (IEEE802.1W/D)
	IGMP Snooping and GMRP for filtering multicast traffic from industrial Ethernet Protocols
	Supports IEEE802.1Q VLAN and GVRP protocol to ease network planning
	Supports QoS-IEEE802.1p/1Q and TOS/DiffServ to increase determinism
	Supports 802.3ad, LACP for optimum bandwidth utilization
	Supports IEEE802.1X and https/SSL to enhance network security
	SNMP V1/V2c/V3 for different levels of network management
	RMON for efficient network monitoring and proactive capability

Designed for Industrial Applications
	Bandwidth management prevents unpredictable network status
	Supports ABC-01 (Automatic Backup Configurator) for system configuration back up
	Lock port for authorized only MAC address access
	Port mirroring for online debugging
	Automatic warning by exception through email, relay output
	Digital inputs to integrate sensors and alarms with IP networks
	Automatic recovery of connected devices IP addresses
	Line-swap fast recovery (Patented)
	Redundant, dual DC power inputs
	IP30, rugged high-strength case
	DIN-Rail or panel mounting capability
	Send ping commands to identify network segment integrity
	Redundant 12-45 VDC power inputs and over current protection

Recommended Software and Accessories
	SNMP OPC Server Pro
	DR-4524, DR-75-24, and DR-120-24 DIN-Rail 24 VDC Power Supply Series

Specifications:

Technology

Standards

IEEE802.3, 802.3u, 802.3x, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X, 802.3ad

Protocols

IGMP V1/ V2/ V3 device, GMRP, GVRP, SNMP V1/V2c/V3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON and EDS-SNMP OPC Server Pro (Optional)

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1,2,3,9

Flow Control

IEEE802.3x flow control, back pressure flow control

Interface

RJ45 Ports

10/100BaseT(X) auto negotiation speed

Fiber Ports

100BaseFX(SC/ST connector)

Console

RS-232 (RJ45)

LED Indicators

PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), MASTER, COUPLER

Alarm Contact

Two relay outputs with current carrying capacity of 1A @ 24 VDC

Digital Input

Two inputs with the same ground, but electrically isolated from the electronics

13 to 30V for state -1-
-30 to 3V for state -0-
Max. input current: 8 mA

Optical Fiber

100BaseFX

Distance

Multi mode:
0 to 5 km, 1300 nm (50/125 -m, 800 MHz*km)
0 to 4 km, 1300 nm (62.5/125 -m, 500 MHz*km)

Min. TX Output

Multi mode: -20 dBm

Max. TX Output

Multi mode: -14 dBm

Sensitivity

-34 to -30 dBm (Multi mode)

Power

Input Voltage

24 VDC (12 to 45 VDC), redundant dual inputs

Input Current (@24V)

0.31A: (EDS-516A)
0.39A: (EDS-516A-MM-SC/ST)

Connection

Two removable 6-pin terminal blocks

Overload Current Protection

Present

Reverse Polarity Protection

Present

Mechanical

Casing

IP30 protection

Dimensions

95 x 135 x 140 mm (W x H x D)
3.74 x 5.31 x 5.51 in. (W x H x D)

Weight

1586 g

Installation

DIN-Rail, Wall Mounting (optional kit)

Environmental

Operating Temperature

0 to 60C (32 to 140F)

Storage Temperature

-40 to 85C (-40 to 185F)

Ambient Relative Humidity

5% to 95% (non-condensing)

Regulatory Approvals

Safety

UL508 (Pending), UL60950-1, CSA C22.2 No. 60950-1, EN60950-1

Hazardous Location

UL/cUL Class I, Division 2, Groups A, B, C and D
ATEX Class I, Zone 2, EEx nC IIC (Pending)

EMI

FCC Part 15, CISPR (EN55022) class A

EMS

EN61000-4-2 (ESD), level 3
EN61000-4-3 (RS), level 3
EN61000-4-4 (EFT), level 2
EN61000-4-5 (Surge), level 3
EN61000-4-6 (CS), level 3
EN61000-4-8
EN61000-4-11
EN61000-4-12

Shock

IEC60068-2-27

Freefall

IEC60068-2-32

Vibration

IEC60068-2-6

Maritime

DNV, GL

Tags de EDS-516A: EDS516A, EDS 516A, EDS-516A Series, switch industrial 16 portas, switch industrial moxa 16 portas, switch 16 portas trilho din, switch 16 portas industrial,, MOXA
