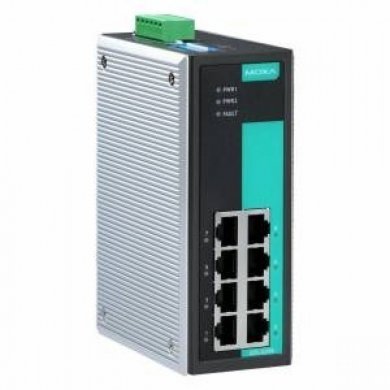

6 Portas Gigabit 10/100/1000BTX + 2 Portas Combo 10/100/1000BTX ou SFP
R$ 9.093,00
à vista no Pix ou Boleto
ou R$ 9.570,89 em 1x no cartão (via site)
ou R$ 10.102,61 no cartão em até 10x sem juros (apenas na loja física)
R$ 9.093,00
à vista no Pix ou Boleto
R$ 9.570,89
em 1x no cartão (via site)
R$ 10.102,61 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 9.093,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176259
Condição de EDS-G308: Novo em embalagem comercial
Garantia de EDS-G308: 12 meses direto com a Net Computadores
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Switch Properties | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1088 Kbit (EDSG205), 1408 Kbit (EDSG308) |
| Jumbo Frame Size | 9.6 KB |
| Interface | |
| Fiber Ports | 100/1000BaseSFP slot (EDSG3082SFP series only) |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDIX connection |
| DIP Switches | One for port alarm, one for Enable/Disable broadcast storm protection and jumbo frame |
| LED Indicators | PWR1, PWR2, FAULT, 10/100/1000M |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Power Requirements | |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs |
| Input Current | EDSG308: 0.32 A @ 24 V EDSG3082SFP: 0.34 A @ 24 V |
| Connection | 1 removable 6contact terminal block |
| Reverse Polarity Protection | Present |
| Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g |
| Installation | DINRail mounting, wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: 40 to 75C (40 to 167F) |
| Storage Temperature | 40 to 85C (40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 6100042 (ESD) Level 3, EN 6100043 (RS) Level 3, EN 6100044 (EFT) Level 3, EN 6100045 (Surge) Level 3, EN 6100046 (CS) Level 3 |
| Marine | DNV, GL, LR, ABS, NK |
| Shock | IEC 60068227 |
| Freefall | IEC 60068232 |
| Vibration | IEC 6006826 |
| Note | Please check Moxas website for the most uptodate certification status. |
| MTBF (mean time between failures) | |
| Time | 478,000 hrs |
| Database | Telcordia (Bellcore), GB (EDSG308 series) |
Tags de EDS-G308: EDS-G308-2SFP, switch moxa 8 portas, switch 8 portas moxa, switch SFP moxa, switch Ethernet Moxa, switch para rede, switch com 8 portas, EDS-G308-2SFP, MOXA
EDS-G308 Moxa Switch 8 Portas Gigabit + SFP 6 Portas Gigabit 10/100/1000BTX + 2 Portas Combo 10/100/1000BTX ou SFP
Condição de EDS-G308:
Novo em embalagem comercial
Garantia de EDS-G308:
12 meses direto com a Net Computadores
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Switch Properties | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1088 Kbit (EDSG205), 1408 Kbit (EDSG308) |
| Jumbo Frame Size | 9.6 KB |
| Interface | |
| Fiber Ports | 100/1000BaseSFP slot (EDSG3082SFP series only) |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDIX connection |
| DIP Switches | One for port alarm, one for Enable/Disable broadcast storm protection and jumbo frame |
| LED Indicators | PWR1, PWR2, FAULT, 10/100/1000M |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Power Requirements | |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs |
| Input Current | EDSG308: 0.32 A @ 24 V EDSG3082SFP: 0.34 A @ 24 V |
| Connection | 1 removable 6contact terminal block |
| Reverse Polarity Protection | Present |
| Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g |
| Installation | DINRail mounting, wall mounting (with optional kit) |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60C (32 to 140F) Wide Temp. Models: 40 to 75C (40 to 167F) |
| Storage Temperature | 40 to 85C (40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (noncondensing) |
| Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 6100042 (ESD) Level 3, EN 6100043 (RS) Level 3, EN 6100044 (EFT) Level 3, EN 6100045 (Surge) Level 3, EN 6100046 (CS) Level 3 |
| Marine | DNV, GL, LR, ABS, NK |
| Shock | IEC 60068227 |
| Freefall | IEC 60068232 |
| Vibration | IEC 6006826 |
| Note | Please check Moxas website for the most uptodate certification status. |
| MTBF (mean time between failures) | |
| Time | 478,000 hrs |
| Database | Telcordia (Bellcore), GB (EDSG308 series) |
Tags de EDS-G308: EDS-G308-2SFP, switch moxa 8 portas, switch 8 portas moxa, switch SFP moxa, switch Ethernet Moxa, switch para rede, switch com 8 portas, EDS-G308-2SFP, MOXA
