Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control
Processing Type	Store and Forward
Flow Control	IEEE 802.3x flow control, back pressure flow control
- Switch Properties
MAC Table Size	8 K
Packet Buffer Size	1088 Kbit (EDS-G205), 1408 Kbit (EDS-G308)
Jumbo Frame Size	9.6 KB
- Interface
Fiber Ports	100/1000BaseSFP slot (EDS-G308-2SFP series only)
RJ45 Ports	10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
DIP Switches	One for port alarm, one for Enable/Disable broadcast storm protection and jumbo frame
LED Indicators	PWR1, PWR2, FAULT, 10/100/1000M
Alarm Contact	1 relay output with current carrying capacity of 1 A @ 24 VDC
- Power Requirements
Input Voltage	12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current	EDS-G308: 0.32 A @ 24 V EDS-G308-2SFP: 0.34 A @ 24 V
Connection	1 removable 6-contact terminal block
Reverse Polarity Protection	Present
- Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g
Installation	DIN-Rail mounting, wall mounting (with optional kit)
- Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
- Standards and Certifications
Safety	UL 508
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3
Marine	DNV, GL, LR, ABS, NK
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Note	Please check Moxa-s website for the most up-to-date certification status.
- MTBF (mean time between failures)
Time	478,000 hrs
Database	Telcordia (Bellcore), GB (EDS-G308 series)

Tags de EDS-G308-2SFP: EDS-G308-2SFP, switch moxa 8 portas, switch 8 portas moxa, switch SFP moxa, switch Ethernet Moxa, switch para rede, switch com 8 portas, =EDS-G308-2SFP, MOXA

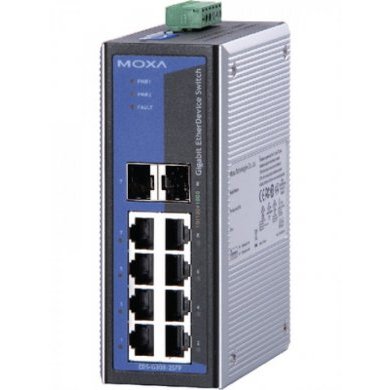

EDS-G308-2SFP Moxa Switch 8 Portas Gigabit + SFP 6 Portas Gigabit 10/100/1000BTX + 2 Portas Combo 10/100/1000BTX ou SFP

Condição de EDS-G308-2SFP:
Novo em embalagem comercial

Garantia de EDS-G308-2SFP:
12 meses direto com a Net Computadores

Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control
Processing Type	Store and Forward
Flow Control	IEEE 802.3x flow control, back pressure flow control
- Switch Properties
MAC Table Size	8 K
Packet Buffer Size	1088 Kbit (EDS-G205), 1408 Kbit (EDS-G308)
Jumbo Frame Size	9.6 KB
- Interface
Fiber Ports	100/1000BaseSFP slot (EDS-G308-2SFP series only)
RJ45 Ports	10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
DIP Switches	One for port alarm, one for Enable/Disable broadcast storm protection and jumbo frame
LED Indicators	PWR1, PWR2, FAULT, 10/100/1000M
Alarm Contact	1 relay output with current carrying capacity of 1 A @ 24 VDC
- Power Requirements
Input Voltage	12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current	EDS-G308: 0.32 A @ 24 V EDS-G308-2SFP: 0.34 A @ 24 V
Connection	1 removable 6-contact terminal block
Reverse Polarity Protection	Present
- Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g
Installation	DIN-Rail mounting, wall mounting (with optional kit)
- Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
- Standards and Certifications
Safety	UL 508
Hazardous Location	UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3
Marine	DNV, GL, LR, ABS, NK
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Note	Please check Moxa-s website for the most up-to-date certification status.
- MTBF (mean time between failures)
Time	478,000 hrs
Database	Telcordia (Bellcore), GB (EDS-G308 series)
