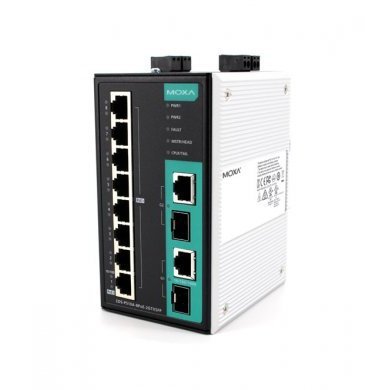

Managed Ethernet PoE Switch with 8 PoE+ Ports and 2 Combo Gigabit Ports
R$ 23.566,00
à vista no Pix ou Boleto
ou R$ 24.805,92 em 1x no cartão (via site)
ou R$ 26.184,02 no cartão em até 10x sem juros (apenas na loja física)
R$ 23.566,00
à vista no Pix ou Boleto
R$ 24.805,92
em 1x no cartão (via site)
R$ 26.184,02 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 23.566,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176239
Condição de EDS-P510A-8POE-2GTXSFP-T: Novo em embalagem comercial
Garantia de EDS-P510A-8POE-2GTXSFP-T: 12 meses direto com a Net Computadores
| - Technology | |
| Standards | IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| Protocols | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| - Switch Properties | |
| Priority Queues | 4 |
| Max. Number of Available VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| - Interface | |
| Fiber Ports | 100/1000BaseSFP slot |
| RJ45 Ports | 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed |
| PoE Pinout | V , V , V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A) |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| LED Indicators | PWR1, PWR2, FAULT, 10/100/1000, 10/100, MSTR/HEAD, CPLR/TAIL, PoE |
| Alarm Contact | 1 relay output with current carrying capacity of 0.5 A @ 48 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics. - 13 to 30 V for state -1- - -30 to 3 V for state -0- - Max. input current: 8 mA |
| - Power Requirements | |
| Input Voltage | 48 (46 to 57 V) VDC redundant dual inputs (> 50 VDC for PoE output recommended) |
| Input Current | 0.27 A @ 48 VDC (w/o PDs connected), 0.42 A @ 48 VDC (w/ 8 PDs connected, excluding PDs consumption)* |
| Overload Current Protection | Present |
| Connection | 2 removable 2-contact terminal blocks |
| Reverse Polarity Protection | Present |
| *Note | When selecting power supply, check the PD power consumption |
| - Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in) |
| Weight | 1030 g |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| - Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60C (14 to 140F) Wide Operating Temp. Models: -40 to 75C (-40 to 167F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| - Standards and Certifications | |
| Safety | UL 508 (Pending) |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3 |
| Traffic Control | NEMA-TS2 |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa-s website for the most up-to-date certification status. |
| - MTBF (mean time between failures) | |
| Time | TBD |
| Database | Telcordia (Bellcore), GB |
Tags de EDS-P510A-8POE-2GTXSFP-T: EDS-P510A-8PoE-2GTXSFP-T, EDS P510A 8PoE 2GTXSFP T, EDSP510A8PoE2GTXSFPT, Moxa managed Ethernet PoE switch w/(8) PoE+ ports & (2) combo gigabit ports, switch moxa 8 portas poe, switch 8 portas poe, switch poe ethernet, switch moxa 8 portas, =EDS-P510A-8POE-2GTXSFP-T, =EDS-P510A-8POE-2GTXSFP-T, MOXA
