EISK5-100T CControls Skorpion 5-Port 10/100Mbps Switch

10Base-T/100Base-TX DIN-rail mount

EISK5-100T - Contemporary Controls

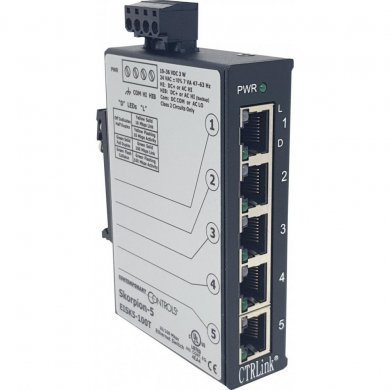

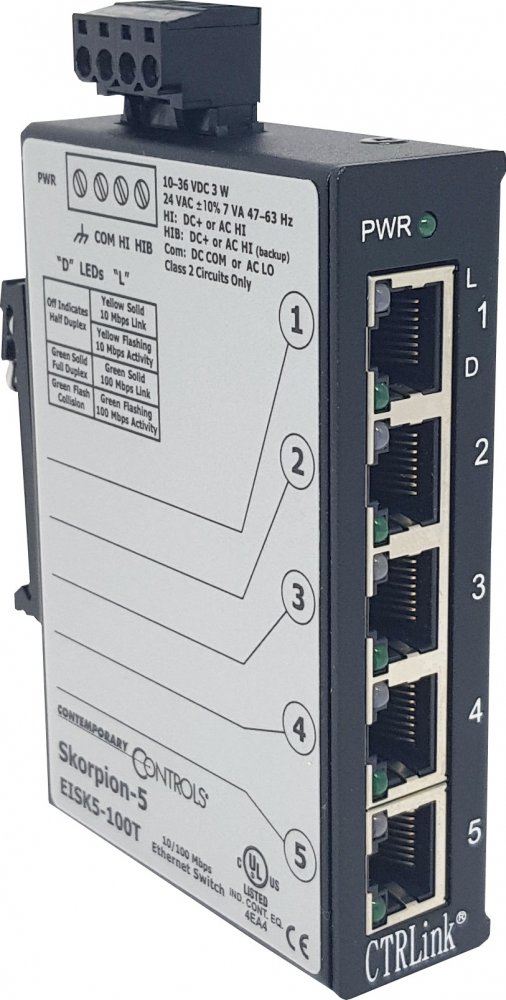

EISK5-100T CControls Skorpion 5-Port 10/100Mbps Switch
*As imagens podem ser ilustrativas
CControls Skorpion 5-Port 10/100Mbps SwitchCControls Skorpion 5-Port 10/100Mbps SwitchCControls Skorpion 5-Port 10/100Mbps Switch

R$ 2.337,00

à vista no Pix ou Boleto

ou R$ 2.459,42 em 1x no cartão (via site)

ou R$ 2.596,06 no cartão em até 10x sem juros (apenas na loja física)

R$ 2.337,00

à vista no Pix ou Boleto

R$ 2.459,42
em 1x no cartão (via site)

R$ 2.596,06 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176259

R$ 2.337,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

EISK5-100T CControls Skorpion 5-Port 10/100Mbps Switch
10Base-T/100Base-TX DIN-rail mount

Condição de EISK5-100T:    Novo em embalagem comercial

Garantia  de  EISK5-100T:     12 meses direto com a Net Computadores



The Skorpion Switch is intended for control panel installations where DIN-rail space is at a premium by requiring a width of only one inch (26mm) of rail space. A metal DIN-rail clip attached to the aluminium enclosure can survive the toughest installation. A writable side label allows the installer an opportunity to document field cabling locations right on the unit.
There are three fibre models: multimode with ST connectors, multimode with SC connectors and single-mode with SC connectors. With single-mode, distances up to 15 km are possible.
The switch can be powered from a 1036 VDC or a 24 VAC (10%) source. Its half-wave rectified low-voltage power supply allows the sharing of power with other 24 VAC/VDC control devices from a common power supply. With redundant power connections, a backup power scheme can be supported. A removable power connector facilitates the servicing of the unit.
LEDs built into the connector indicate data rate and activity on each of the five ports. For each port, the data rate will be indicated along with port activity thereby greatly assisting in troubleshooting connection issues.
The switch is UL 508 Listed and c-UL Listed for Industrial Control Equipment. It complies with CFR 47 Part 15 Class A, and carries the CE Mark. It is RoHS compliant.
Specifications
Item Number EISK5-100T
Brand Contemporary Controls
Operating Temperature Range 0 C to 60 C
Ports 5
Speed 10/100
Switch Type Basic


Maiores detalhes de EISK5-100T no site do fabricante:
https://www.ccontrols.com/pdf/ds/DS-EISK5000B.pdf


Tags de EISK5-100T: EISK5-100T, EISK5 100T, EISK5100T, Switch Ethernet Industrial 5 Portas - EISK5-100T - Contemporary Controls, contemporary controls skorpion 5-port 10/100mpbs switch, switch EISK5-100T, switch industrial EISK5-100T, Contemporary Controls

EISK5-100T CControls Skorpion 5-Port 10/100Mbps Switch 10Base-T/100Base-TX DIN-rail mount

Condição de EISK5-100T:
Novo em embalagem comercial

Garantia  de  EISK5-100T:
12 meses direto com a Net Computadores


The Skorpion Switch is intended for control panel installations where DIN-rail space is at a premium by requiring a width of only one inch (26mm) of rail space. A metal DIN-rail clip attached to the aluminium enclosure can survive the toughest installation. A writable side label allows the installer an opportunity to document field cabling locations right on the unit.
There are three fibre models: multimode with ST connectors, multimode with SC connectors and single-mode with SC connectors. With single-mode, distances up to 15 km are possible.
The switch can be powered from a 1036 VDC or a 24 VAC (10%) source. Its half-wave rectified low-voltage power supply allows the sharing of power with other 24 VAC/VDC control devices from a common power supply. With redundant power connections, a backup power scheme can be supported. A removable power connector facilitates the servicing of the unit.
LEDs built into the connector indicate data rate and activity on each of the five ports. For each port, the data rate will be indicated along with port activity thereby greatly assisting in troubleshooting connection issues.
The switch is UL 508 Listed and c-UL Listed for Industrial Control Equipment. It complies with CFR 47 Part 15 Class A, and carries the CE Mark. It is RoHS compliant.
Specifications
Item Number EISK5-100T
Brand Contemporary Controls
Operating Temperature Range 0 C to 60 C
Ports 5
Speed 10/100
Switch Type Basic


Maiores detalhes de EISK5-100T no site do fabricante:
https://www.ccontrols.com/pdf/ds/DS-EISK5000B.pdf


Tags de EISK5-100T: EISK5-100T, EISK5 100T, EISK5100T, Switch Ethernet Industrial 5 Portas - EISK5-100T - Contemporary Controls, contemporary controls skorpion 5-port 10/100mpbs switch, switch EISK5-100T, switch industrial EISK5-100T, Contemporary Controls
