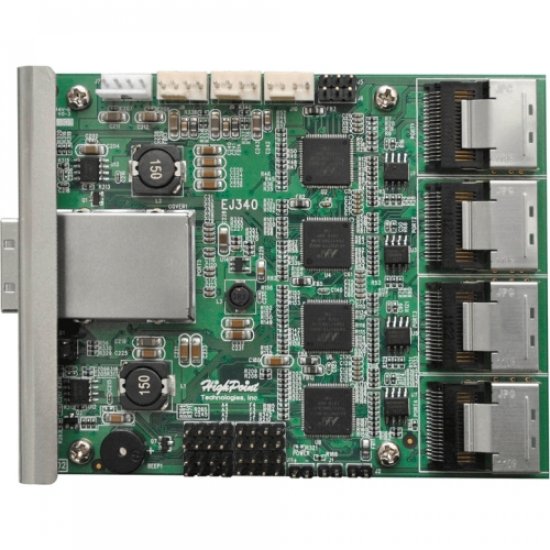

EJ340 HIGH POINT HighPoint Rocket HBA EJ340 SAS 16 Canais

EJ340 HIGH POINT HighPoint Rocket HBA EJ340 SAS 16 Canais 6Gbs, 1 Portas Externa SFF-8088 4 Portas Internas SFF-8087

Condição de EJ340:
Novo em embalagem comercial

Garantia  de  EJ340:
12 meses direto com a Net Computadores

Introducing the Rocket EJ340: The Industrys First 6Gb/s SATA Expander Module Quadruples the storage capacity of each RocketRAID SFF-8088 Port! The Rocket EJ340 allows RocketRAID series 6Gb/s HBAs support up to 16 SATA hard drives from a single connector, effectively quadrupling the storage capability of each external Mini-SAS port! Rocket EJ340 SATA Expander Modules EXPAND the Storage Capability of RocketRAID 6Gb/s Mini-SAS RAID HBAs: 400% more Storage Capacity and Scalable Performance. Best Cost/Performance Alternative for SAS Expander Solutions Rocket EJ340 paired with RocketRAID HBAs deliver a wide-range of SATA Storage Solutions suitable for any platform: from Professional Server & Workstation Applications to Entry-Level RAID Storage upgrades. Built-In Storage Management Capability The EJ340 delivers comprehensive enclosure management and monitoring features designed to simplify and streamline storage maintenance. Each EJ340 featured integrated temperature sensors and 3 fan ports with automated speed-control to help maintain a consistent temperature for the local storage environment. In addition, EJ340 Expander Modules provide connectors for up to 2 additional temperature sensors, an audible alarm, and LED pins for enclosure monitoring, error and warning notifications.

Hardware Specifications
Marvell 88SE9485
6Gb/s per Mini-SAS Port
1x External Mini-SAS Port (SFF-8088)
4x Internal Mini-SAS Ports (SFF-8087)
Up to 16 SATA devices
Centronics Form Factor
Module Dimensions: 4.13 L x 3.25 H x 0.06 W
Monitoring and Management Support
Status LEDs on Bracket: Power LED & Global (Storage) Fail LED
Drive LED connectors: Active/Failed LEDs connector (3.3V power pin Support)
Cooling Fan Ports: 3 connectors (4-pin supported)
Temperature Sensors: 1 x Built-in onboard, 2 additional Temperature Sensor Connectors
4x Voltage Monitors
Audible Alarm (alarm will trigger if temperature sensor detects overheating)
Enclosure Status Connectors: LED Power LED/Fail LED (fan, temp, power, voltage below) /Power TTL input

Staggered Drive Spinup
Hot-Plug and Hot-Swap Support
Larger than 2TB HDD support
Storage and Enclosure Management Suite

Tags de EJ340: EJ340, HBA EJ340, EJ340 HBA, HighPoint EJ340, HBA Highpoint EJ340, HBA Highpoint SAS, HIGH POINT, HIGH POINT
