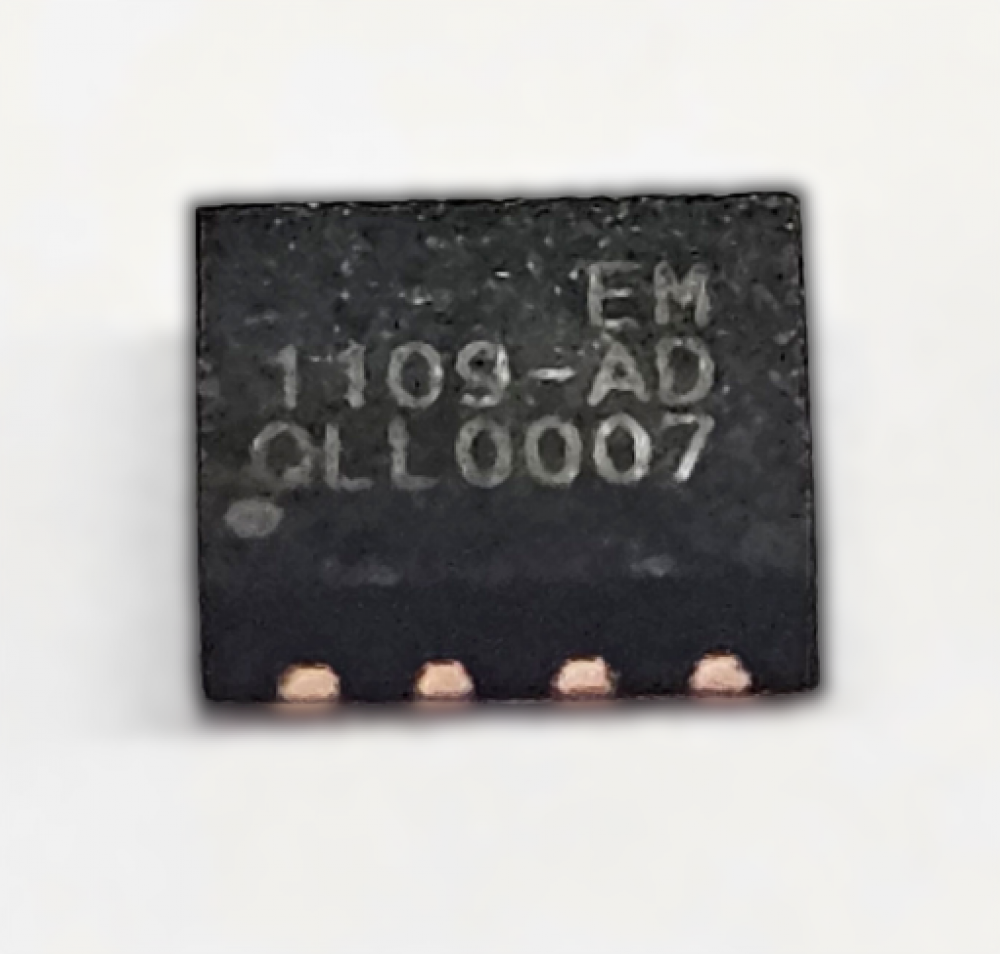

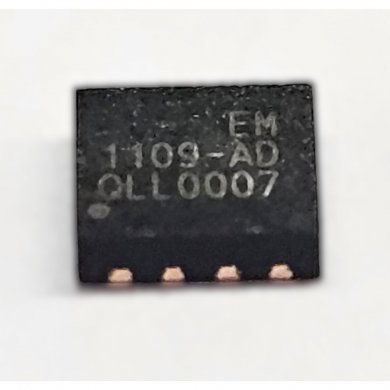

EM1109 Ci EM 1109-AD regulador LDO ajustavel DFN3X3-08L

EM1109 - M Excelliance MOS Corporation
EM1109 Ci EM 1109-AD regulador LDO ajustavel DFN3X3-08L
*As imagens podem ser ilustrativas
Ci EM 1109-AD regulador LDO ajustavel DFN3X3-08LCi EM 1109-AD regulador LDO ajustavel DFN3X3-08LCi EM 1109-AD regulador LDO ajustavel DFN3X3-08LCi EM 1109-AD regulador LDO ajustavel DFN3X3-08LCi EM 1109-AD regulador LDO ajustavel DFN3X3-08LCi EM 1109-AD regulador LDO ajustavel DFN3X3-08L

R$ 10,00

à vista no Pix ou Boleto

ou R$ 9,80 em 1x no cartão (via site)

ou R$ 10,35 no cartão em até 10x sem juros (apenas na loja física)

R$ 10,00

à vista no Pix ou Boleto

R$ 9,80
em 1x no cartão (via site)

R$ 10,35 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85423190

R$ 10,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE
EM1109 Ci EM 1109-AD regulador LDO ajustavel DFN3X3-08L

Condição de EM1109:    Novo em embalagem comercial

Garantia  de  EM1109:     3 meses direto com a Net Computadores



Applications
- Cellular Handsets
- Battery Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- PCMCIA Cards
- Portable Information Applications

Features
- Ultra Fast Response in Line/Load Transient
- Wide VIN Range from 2.5V to 5.5V
- Fixed Output Voltage from 1V to 3.3V
- Ultra Low Dropout Voltage: 450mV @1A
- Low Shutdown Current < 1uA
- Only 4.7uF Ceramic Capacitor required for stability
- Over Temperature Protection
- Current Limit Protection
- RoHS Compliant and 100% Lead (Pb)-Free

Tags de EM1109: EM1109, EM1109V-XX, EM1109V, Low Dropout Adjustable and Fixed Mode Regulator, LDO ajustavel, M Excelliance MOS Corporation

EM1109 Ci EM 1109-AD regulador LDO ajustavel DFN3X3-08L

Condição de EM1109:
Novo em embalagem comercial

Garantia  de  EM1109:
3 meses direto com a Net Computadores


Applications
- Cellular Handsets
- Battery Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- PCMCIA Cards
- Portable Information Applications

Features
- Ultra Fast Response in Line/Load Transient
- Wide VIN Range from 2.5V to 5.5V
- Fixed Output Voltage from 1V to 3.3V
- Ultra Low Dropout Voltage: 450mV @1A
- Low Shutdown Current < 1uA
- Only 4.7uF Ceramic Capacitor required for stability
- Over Temperature Protection
- Current Limit Protection
- RoHS Compliant and 100% Lead (Pb)-Free

Tags de EM1109: EM1109, EM1109V-XX, EM1109V, Low Dropout Adjustable and Fixed Mode Regulator, LDO ajustavel, M Excelliance MOS Corporation
