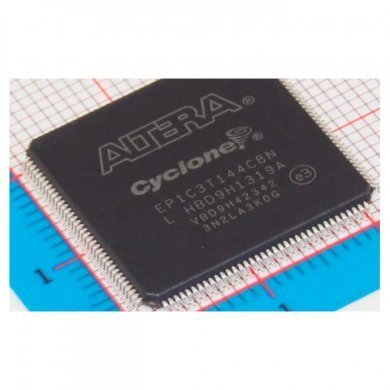

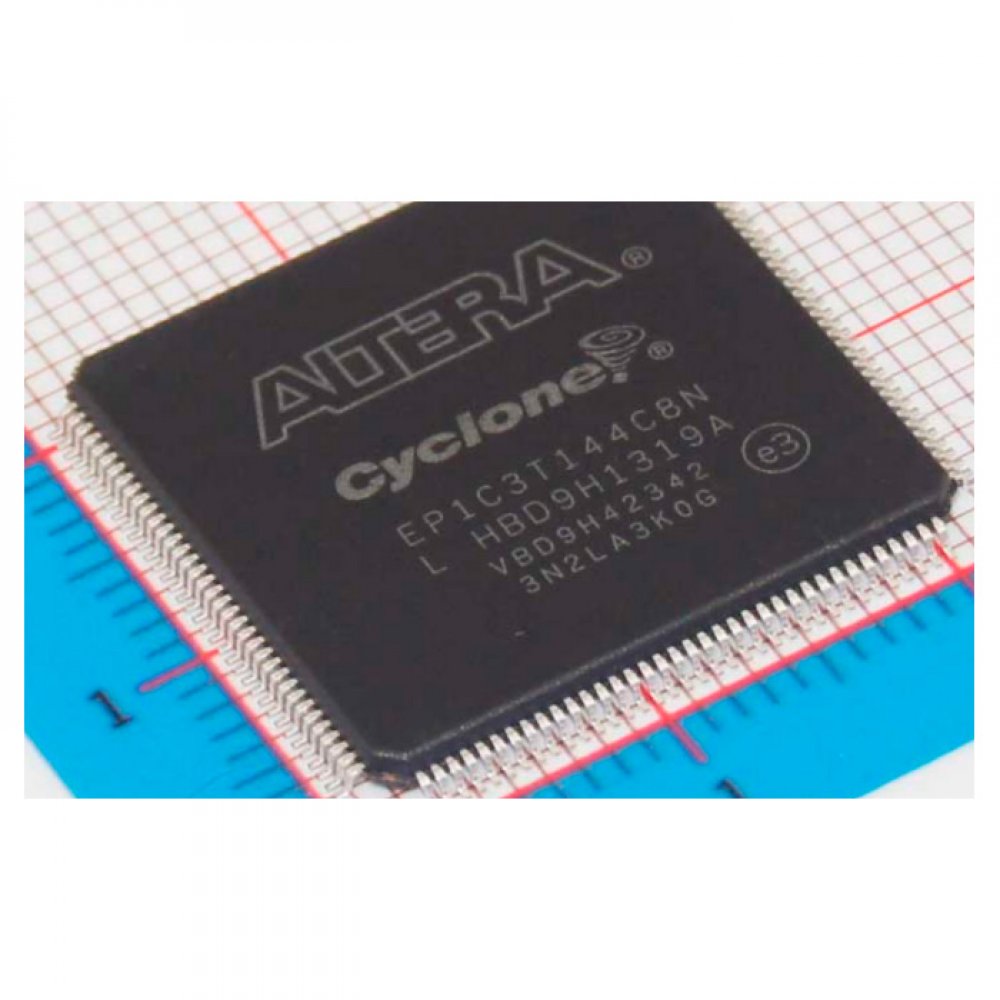

EP1C3T144C8N Intel Altera Cyclone IV FPGA 104 I/O 144TQFP

FPGA Cyclone Family 2910 Cells 275.03MHz 0.13um 1.5V

EP1C3T144C8N Intel Altera Cyclone IV FPGA 104 I/O 144TQFP

*As imagens podem ser ilustrativas

Intel Altera Cyclone IV FPGA 104 I/O 144TQFP

em estoque, envio imediato

R$ 147,00

à vista no Pix ou Boleto

ou R$ 154,21 em 1x no cartão (via site)

ou R$ 162,78 no cartão em até 10x sem juros (apenas na loja física)

R$ 147,00

à vista no Pix ou Boleto

R$ 154,21
em 1x no cartão (via site)

R$ 162,78 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 147,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre

Cotação PJ mais de uma unidade

Indicar EP1C3T144C8N

EP1C3T144C8N Intel Altera Cyclone IV FPGA 104 I/O 144TQFP
FPGA Cyclone Family 2910 Cells 275.03MHz 0.13um 1.5V

Condição de EP1C3T144C8N: Novo em embalagem comercial

Garantia de EP1C3T144C8N: 3 meses direto com a Net Computadores

Altera new Cyclone IV FPGA device family extends the Cyclone FPGA series leadership in providing the market-s lowest-cost, lowest-power FPGAs, now with a transceiver variant. Cyclone IV devices are targeted to high-volume, cost-sensitive applications, enabling system designers to meet increasing bandwidth requirements lowering costs.

Cyclone IV Device Family Features The Cyclone IV device family offers the following features:
- Low-cost, low-power FPGA fabric:
- 6K to 150K logic elements
- Up to 6.3 Mb of embedded memory
- Up to 360 18 × 18 multipliers for DSP processing intensive applications
- Protocol bridging applications for under 1.5 W total power
- Cyclone IV GX devices offer up to eight high-speed transceivers that provide:
- Data rates up to 3.125 Gbps
- 8B/10B encoder/decoder
- 8-bit or 10-bit physical media attachment (PMA) to physical coding sublayer (PCS) interface
- Byte serializer/deserializer (SERDES)
- Word aligner
- Rate matching FIFO
- TX bit slipper for Common Public Radio Interface (CPRI)
- Electrical idle
- Dynamic channel reconfiguration allowing you to change data rates andprotocols on-the-fly
- Static equalization and pre-emphasis for superior signal integrity
- 150 mW per channel power consumption
- Flexible clocking structure to support multiple protocols in a single transceiver block
- Cyclone IV GX devices offer dedicated hard IP for PCI Express (PIPE) (PCIe) Gen 1:
- ×1, ×2, and ×4 lane configurations
- End-point and root-port configurations
- Up to 256-byte payload
- One virtual channel
- 2 KB retry buffer
- 4 KB receiver (Rx) buffer
- Cyclone IV GX devices offer a wide range of protocol support:
- PCIe (PIPE) Gen 1 ×1, ×2, and ×4 (2.5 Gbps)
- Gigabit Ethernet (1.25 Gbps)
- CPRI (up to 3.072 Gbps)
- XAUI (3.125 Gbps)
- Triple rate serial digital interface (SDI) (up to 2.97 Gbps)
- Serial RapidIO (3.125 Gbps)
- Basic mode (up to 3.125 Gbps)
- V-by-One (up to 3.0 Gbps)
- DisplayPort (2.7 Gbps)
- Serial Advanced Technology Attachment (SATA) (up to 3.0 Gbps)
- OBSAI (up to 3.072 Gbps)
- Up to 532 user I/Os
- LVDS interfaces up to 840 Mbps transmitter (Tx), 875 Mbps Rx
- Support for DDR2 SDRAM interfaces up to 200 MHz
- Support for QDRII SRAM and DDR SDRAM up to 167 MHz
- Up to eight phase-locked loops (PLLs) per device
- Offered in commercial and industrial temperature grades

Specifications

Attribute	Attribute Value
Manufacturer	Intel / Altera
Product Category	IC Chips
Series	CycloneR IV E
Number-of-LABs-CLBs	7155
Number-of-Logic-Elements-Cells	114480
Total-RAM-Bits	3981312
Number-of-I-O	528
IC Number of Gates	-
Voltage-Supply	1.15 V ~ 1.25 V
Mounting-Type	Surface Mount
Operating-Temperature	0°C ~ 85°C (TJ)
Package-Case	780-BGA
Supplier-Device-Package	780-FBGA (29x29)
Product	Cyclone IV E
Number-of-Logic-Elements	114480
Number-of-Logic-Array-Blocks-LABs	7155
Input/output	528 I/O
Operating-Supply-Voltage	1 V to 1.2 V
Maximum Operating Temperature	70 C
Mounting-Style	SMD/SMT
Package-Case	FBGA-780
Maximum-Operating-Frequency	200 MHz
Operating temperature range	0 C
Packaging	Tray
Total-Memory	3888 kbit
Tradename	Cyclone IV

Product Category :
FPGA - Field Programmable Gate Array
Manufacturer :
Altera / Intel
Maximum Operating Temperature :
70 C
Minimum Operating Temperature :
0 C
Mounting Style :
SMD/SMT
Number of I/Os :
104 I/O
Number of Logic Array Blocks - LABs :
291
Number of Logic Elements :
2910
Operating Supply Voltage :
1.5 V to 3.3 V
Package / Case :
TQFP-144
Packaging :
Tray
Product :
Cyclone
