ERA-4+ MiniCircuits ERA-4+ monolithic amplifier

DC-4 GHz Wideband Amplifier

ERA-4+ - Mini-Circuits
ERA-4+ MiniCircuits ERA-4+ monolithic amplifier
*As imagens podem ser ilustrativas
MiniCircuits ERA-4+ monolithic amplifierMiniCircuits ERA-4+ monolithic amplifierMiniCircuits ERA-4+ monolithic amplifierMiniCircuits ERA-4+ monolithic amplifierMiniCircuits ERA-4+ monolithic amplifier

R$ 48,00

à vista no Pix ou Boleto

ou R$ 50,04 em 1x no cartão (via site)

ou R$ 52,82 no cartão em até 10x sem juros (apenas na loja física)

R$ 48,00

à vista no Pix ou Boleto

R$ 50,04
em 1x no cartão (via site)

R$ 52,82 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85044060

R$ 48,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85044060

ERA-4+ MiniCircuits ERA-4+ monolithic amplifier
DC-4 GHz Wideband Amplifier

Condição de ERA-4+:    Novo em embalagem comercial

Garantia  de  ERA-4+:     3 meses direto com a Net Computadores



Product Features
• DC-4 GHz
• Single voltage supply
• Internally matched to 50 ohms
• Low Performance variation over temperature
• Transient Protected
• Aqueous washable
• Protected By US Patent 6,943,629

Typical Applications
• Cellular/ PCS/ 3G Base Station
• CATV, Cable Modem & DBS
• Fixed Wireless & WLAN
• Microwave Radio & Test Equipment

General Description:

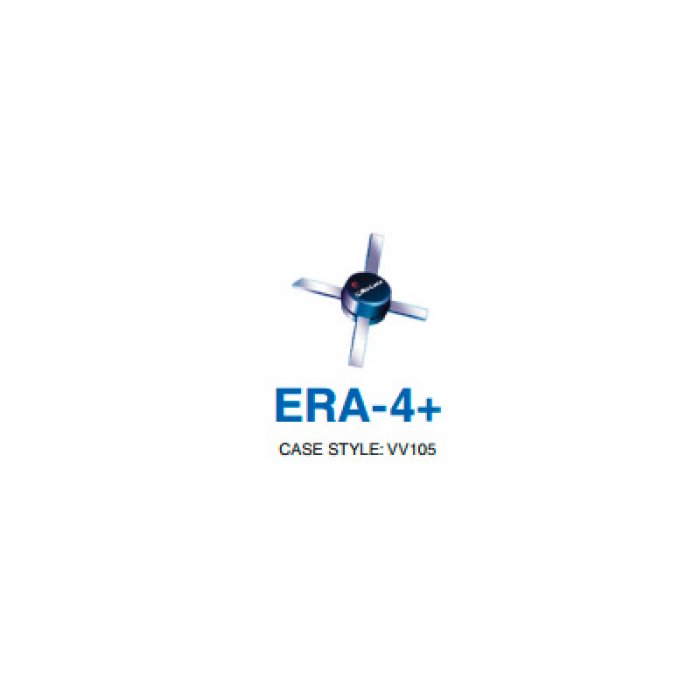

ERA-4+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot. It is enclosed in a Micro-X package.

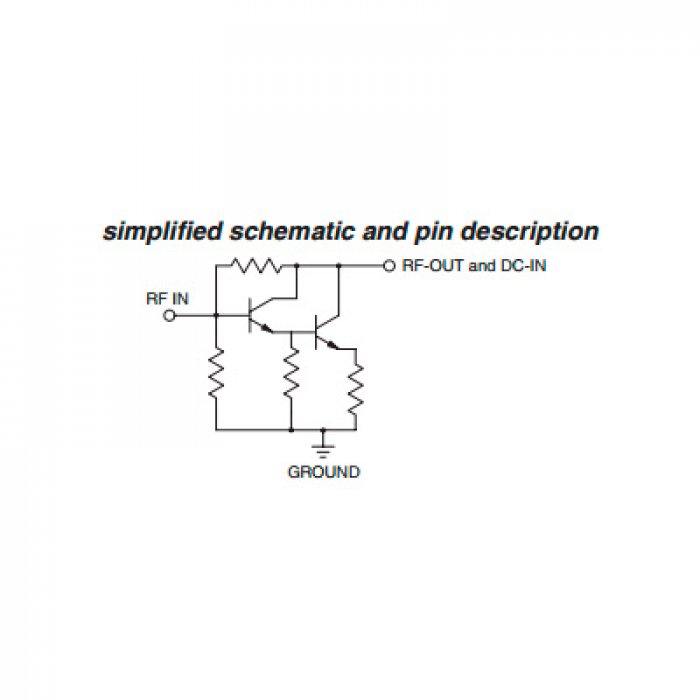

ERA-4+ uses Darlington configuration and is fabricated using InGaP HBT technology. Expected MTBF is 170 years at 85°C case temperature.


Maiores detalhes de ERA-4+ no site do fabricante:
https://www.minicircuits.com/pdfs/ERA-4+.pdf


Tags de ERA-4+: ERA-4+, ERA-4, MMIC Amplifier, ENV08T2, PL-261, TB-431-4+, CASE STYLE VV105, transistor Darlington, HBT technology, 3G Base Station, Microwave Radio, Mini-Circuits ERA-4 DC-4GHz, DC-4 GHz, Monolithic Amplifier, wideband amplifier, Amplificador de Banda Larga, RF Amplifier, Amplificador de RF, Mini-Circuits

ERA-4+ MiniCircuits ERA-4+ monolithic amplifier DC-4 GHz Wideband Amplifier

Condição de ERA-4+:
Novo em embalagem comercial

Garantia  de  ERA-4+:
3 meses direto com a Net Computadores


Product Features
• DC-4 GHz
• Single voltage supply
• Internally matched to 50 ohms
• Low Performance variation over temperature
• Transient Protected
• Aqueous washable
• Protected By US Patent 6,943,629

Typical Applications
• Cellular/ PCS/ 3G Base Station
• CATV, Cable Modem & DBS
• Fixed Wireless & WLAN
• Microwave Radio & Test Equipment

General Description:
ERA-4+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot. It is enclosed in a Micro-X package.
ERA-4+ uses Darlington configuration and is fabricated using InGaP HBT technology. Expected MTBF is 170 years at 85°C case temperature.


Maiores detalhes de ERA-4+ no site do fabricante:
https://www.minicircuits.com/pdfs/ERA-4+.pdf


Tags de ERA-4+: ERA-4+, ERA-4, MMIC Amplifier, ENV08T2, PL-261, TB-431-4+, CASE STYLE VV105, transistor Darlington, HBT technology, 3G Base Station, Microwave Radio, Mini-Circuits ERA-4 DC-4GHz, DC-4 GHz, Monolithic Amplifier, wideband amplifier, Amplificador de Banda Larga, RF Amplifier, Amplificador de RF, Mini-Circuits
