Fibra Óptica / MÓDULOS GBIC SFP / MULTIMODO ÓPTICO E RJ45 / eSFP-SX-MM850-A-HW

Fibra Óptica / MÓDULOS GBIC SFP

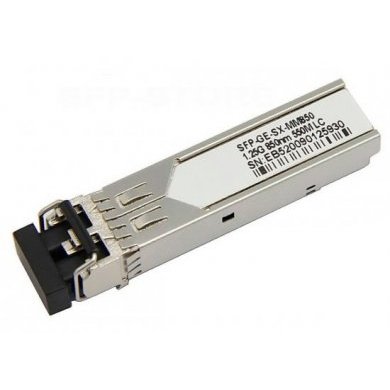

eSFP-SX-MM850-A-HW Mini Gbic 1000Mbps LC 1000Base-SX 850nm

Name: eSFP-SX-MM850-A-HW Mini Gbic 1000Mbps LC 1000Base-SX 850nm
Brand: OEM
SKU: eSFP-SX-MM850-A-HW
Price: 234.00 BRL
Availability: InStock

1.25GB/s 550 metros +3.3V - Compatível com CISCO MGBSX1

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 234,00

à vista no Pix ou Boleto

ou R$ 246,08 em 1x no cartão (via site)

ou R$ 259,75 no cartão em até 10x sem juros (apenas na loja física)

R$ 234,00

à vista no Pix ou Boleto

R$ 246,08
em 1x no cartão (via site)

R$ 259,75 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176259

R$ 234,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

Cotação PJ mais de uma unidade

Indicar eSFP-SX-MM850-A-HW

eSFP-SX-MM850-A-HW Mini Gbic 1000Mbps LC 1000Base-SX 850nm
1.25GB/s 550 metros +3.3V - Compatível com CISCO MGBSX1

Condição de eSFP-SX-MM850-A-HW: Novo em embalagem comercial

Garantia de eSFP-SX-MM850-A-HW: 12 meses direto com a Net Computadores

General Information

Product Type :	SFP (mini-GBIC)
Manufacturer Part Number :	eSFP-SX-MM850-A-HW
Manufacturer Website Address :
Marketing Information :	This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.
Manufacturer :	Linksys
Product Name :	Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Brand Name :	OEM

Interfaces/Ports

Interfaces/Ports :	1 x 1000Base-SX
Interfaces/Ports Details :	1 x LC 1000Base-SX

Media & Performance

Connectivity Media :	62.5/125 µm Multi-mode Fiber 50/125 µm Multi-mode Fiber
Distance Support :	721.78 ft 62.5/125 µm Fiber 902.23 ft 62.5/125 µm Fiber 1640.42 ft 50/125 µm Fiber 1804.46 ft 50/125 µm Fiber

Environmental Conditions

Humidity :	0% to 85% Non-condensing Operating 5% to 95% Non-condensing Storage
Temperature :	0 °C (32.0 °F) to 40 °C (104.0 °F) Operating -20 °C (-4.0 °F) to 70 °C (158.0 °F) Storage

Physical Characteristics

Weight :

0.04 lb

Miscellaneous

Additional Information :

Transmitter Spec: Power: -9.5 to -4 dBm
Reciever Spec: Sensitivity: -20 to -17dBm
Input Power: -20 to -17 dBm
Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
Wavelength: 850 nm (850nm TYP., 830-860nm) MMF Modular Bandwidth for MMF:
62.5/125um MMF at 160 MHz/km, up to 220m
62.5/125um MMF at 200 MHz/km, up to 275m
50/125um MMF at 400 MHz/km, up to 500m
50/125um MMF at 500 MHz/km, up to 550m

Compatibility :

SR2024 - 24-Port 10/100/1000 Gigabit Switch
SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView

Tags de eSFP-SX-MM850-A-HW: MGBLH1, SFP-GE-SX-MM850, eSFP-SX-MM850-A-HW, MGBSX1, SG100-24-NA, 1.25GB/s, 550m, Transceiver, OEM, OEM

eSFP-SX-MM850-A-HW Mini Gbic 1000Mbps LC 1000Base-SX 850nm 1.25GB/s 550 metros +3.3V - Compatível com CISCO MGBSX1

Condição de eSFP-SX-MM850-A-HW:
Novo em embalagem comercial

Garantia de eSFP-SX-MM850-A-HW:
12 meses direto com a Net Computadores

General Information

Product Type :	SFP (mini-GBIC)
Manufacturer Part Number :	eSFP-SX-MM850-A-HW
Manufacturer Website Address :
Marketing Information :	This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit ality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.
Manufacturer :	Linksys
Product Name :	Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Brand Name :	OEM

Interfaces/Ports

Interfaces/Ports :	1 x 1000Base-SX
Interfaces/Ports Details :	1 x LC 1000Base-SX

Media & Performance

Connectivity Media :	62.5/125 µm Multi-mode Fiber 50/125 µm Multi-mode Fiber
Distance Support :	721.78 ft 62.5/125 µm Fiber 902.23 ft 62.5/125 µm Fiber 1640.42 ft 50/125 µm Fiber 1804.46 ft 50/125 µm Fiber

Environmental Conditions

Humidity :	0% to 85% Non-condensing Operating 5% to 95% Non-condensing Storage
Temperature :	0 °C (32.0 °F) to 40 °C (104.0 °F) Operating -20 °C (-4.0 °F) to 70 °C (158.0 °F) Storage
