EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC

Até 450 metros utilizando fibra multimodo (50 µm ou 62.5 µm)

EXT-DVI-FM500 - Gefen
EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC
EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC
clique para ampliar
*As imagens podem ser ilustrativas
EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC
EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC
EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC

R$ 9.975,00

à vista no Pix ou Boleto

ou R$ 10.499,42 em 1x no cartão (via site)

ou R$ 11.082,72 no cartão em até 10x sem juros (apenas na loja física)

R$ 9.975,00

à vista no Pix ou Boleto

R$ 10.499,42
em 1x no cartão (via site)

R$ 11.082,72 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176259

R$ 9.975,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC
Até 450 metros utilizando fibra multimodo (50 µm ou 62.5 µm)

Condição de EXT-DVI-FM500:    Novo em embalagem comercial

Garantia  de  EXT-DVI-FM500:     12 meses direto com a Net Computadores



Painless, reliable DVI extension over fiber -- with built-in DVI-to-fiber signal converters and EDID storage, all in a tiny form factor!

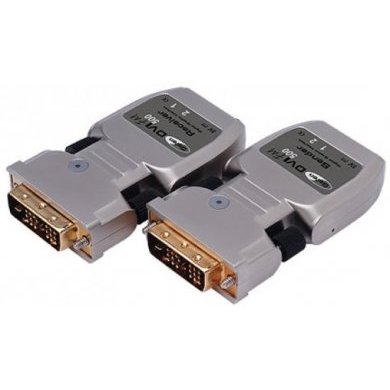

The Gefen  FM500  DVI Fiber Optic Extender allows DVI signal to be extended up to 5000 feet (1.5 km) away.  This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. Two strands of LC-terminated fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic  EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.
Video Support
Supports resolutions up to 1920 x 1200
Other Specifications
Maximum Pixel Clock:165MHz
Input Video Signal:1.2V p-p
Input DDC Signal:5V p-p (TTL)
Supported fiber types:single-mode 8/9 um (1500 meters / 5000 feet) or multi-mode 50/62.5 um (450 meters / 1500 feet)
Default EDID:UXGA (1600 x 1200)
Video Input Connector (Sender):(1) DVI-D (19 pin), male (digital only)
Video Output Connector (Receiver):(1) DVI-D (19 pin), male (digital only)
Link Connectors (Sender / Receiver):(2) Type LC (1 Duplex) fiber connectors
LED Indicators (Sender / Receiver):(1) EDID Status
Program Button (Sender):EDID Program (recessed)
Fiber Cable:Duplex, LC-terminated, Single-Mode or Multi-Mode (OM1 (62.5/125 m), or OM2/OM3/OM3e/OM4 (50/125 m))
Power Supply (Receiver):5V DC (Second power supply included for use if source does not provide 5V power for Sender over DVI connector)
Power Consumption:2.5W (max.)
Operating Temperature:0 C - 50 C
Storage Temperature:-10 C - 85 C
Operating Humidity:5% - 85%
Dimensions (Sender / Receiver):1.5 inches W x 2.5 inches D x 0.5 inches H

In The Box
1- DVI FM 500 Sender unit
1- DVI FM 500 Receiver unit
1- 5V DC Power Supply (EXT-PS51AIP-1.3)
1- User Manual


Maiores detalhes de EXT-DVI-FM500 no site do fabricante:
https://www.gefen.com/product/dvi-fm-500-extender-EXT-DVI-FM500


Tags de EXT-DVI-FM500: Gefen EXT-DVI-FM500 DVI FM 500 Extender, EXT-DVI-1CAT6, EXT-DVI-FM500, Extenção DVI, Extensao DVI, DVI over FC, DVI over Fibre Optic, Gefen

EXT-DVI-FM500 Gefen Extensão DVI sobre Fibra Óptica LC Até 450 metros utilizando fibra multimodo (50 µm ou 62.5 µm)

Condição de EXT-DVI-FM500:
Novo em embalagem comercial

Garantia  de  EXT-DVI-FM500:
12 meses direto com a Net Computadores


Painless, reliable DVI extension over fiber -- with built-in DVI-to-fiber signal converters and EDID storage, all in a tiny form factor!
The Gefen  FM500  DVI Fiber Optic Extender allows DVI signal to be extended up to 5000 feet (1.5 km) away.  This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. Two strands of LC-terminated fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic  EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.
Video Support
Supports resolutions up to 1920 x 1200
Other Specifications
Maximum Pixel Clock:165MHz
Input Video Signal:1.2V p-p
Input DDC Signal:5V p-p (TTL)
Supported fiber types:single-mode 8/9 um (1500 meters / 5000 feet) or multi-mode 50/62.5 um (450 meters / 1500 feet)
Default EDID:UXGA (1600 x 1200)
Video Input Connector (Sender):(1) DVI-D (19 pin), male (digital only)
Video Output Connector (Receiver):(1) DVI-D (19 pin), male (digital only)
Link Connectors (Sender / Receiver):(2) Type LC (1 Duplex) fiber connectors
LED Indicators (Sender / Receiver):(1) EDID Status
Program Button (Sender):EDID Program (recessed)
Fiber Cable:Duplex, LC-terminated, Single-Mode or Multi-Mode (OM1 (62.5/125 m), or OM2/OM3/OM3e/OM4 (50/125 m))
Power Supply (Receiver):5V DC (Second power supply included for use if source does not provide 5V power for Sender over DVI connector)
Power Consumption:2.5W (max.)
Operating Temperature:0 C - 50 C
Storage Temperature:-10 C - 85 C
Operating Humidity:5% - 85%
Dimensions (Sender / Receiver):1.5 inches W x 2.5 inches D x 0.5 inches H

In The Box
1- DVI FM 500 Sender unit
1- DVI FM 500 Receiver unit
1- 5V DC Power Supply (EXT-PS51AIP-1.3)
1- User Manual


Maiores detalhes de EXT-DVI-FM500 no site do fabricante:
https://www.gefen.com/product/dvi-fm-500-extender-EXT-DVI-FM500


Tags de EXT-DVI-FM500: Gefen EXT-DVI-FM500 DVI FM 500 Extender, EXT-DVI-1CAT6, EXT-DVI-FM500, Extenção DVI, Extensao DVI, DVI over FC, DVI over Fibre Optic, Gefen
