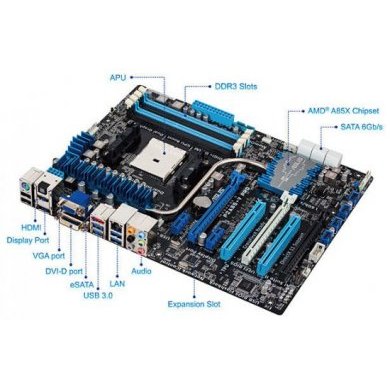

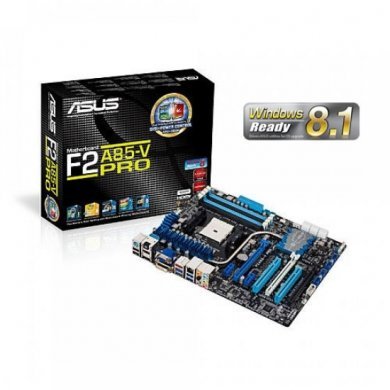

F2A85-V-PRO Placa Mãe Asus AMD FM2 F2A85-V PRO Chipeset AMD A85X, Memória DDR3, HD SATA3 6Gbs, USB 3.0, Vídeo AMD Radeon HD 7000, Som e Rede Gigab
Condição de F2A85-V-PRO:
Novo em embalagem comercial
Garantia de F2A85-V-PRO:
12 meses direto com a Net Computadores
CPU
AMD Socket FM2 Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
Chipset
AMD A85X FCH(Hudson D4)
Memory
4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
Graphic
Integrated AMD Radeon HD 7000/8000 Series Graphics in A-series APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
Supports DVI with max. resolution 2560 x 1600 @ Hz
Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support
Supports DirectX 11
Multi-GPU Support
Supports AMD 3-Way CrossFireX Technology
Supports LucidLogix Virtu™ MVP Technology
Expansion Slots
2 x PCIe 2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1
2 x PCI
Storage
AMD A85X FCH(Hudson D4) chipset :
7 x SATA 6Gb/s port(s), gray
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD
LAN
Realtek 8111F, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC892 8-Channel High Definition Audio CODEC
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
Optical S/PDIF out port(s) at back panel
USB Ports
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD A85X FCH(Hudson D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset :
10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board)
ROG Exclusive Features
Overclocking Protection :
ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
SMART DIGI+ :
Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior APU/DRAM overclocking performance with one click.
ASUS TPU :
Auto Tuning
TurboV
GPU Boost
TPU switch
ASUS EPU :
EPU
EPU switch
ASUS Digital Power Design :
Industry leading Digital 6 +2 Phase Power Design
CPU Power Utility
DRAM Power Utility
ASUS Exclusive Features :
Remote GO!
USB BIOS Flashback
MemOK!
AI Suite II
Ai Charger+
USB Charger+
Anti-Surge
ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
Network iControl
USB 3.0 Boost
Disk Unlocker
ASUS Quiet Thermal Solution :
Stylish Fanless Design Heat-pipe solution
ASUS Fan Xpert 2
ASUS EZ DIY :
DirectKey
Precision Tweaker 2
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
ASUS Q-Design :
ASUS Q-Shield
ASUS Q-Slot
ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 x -pin)
4 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x USB BIOS Flashback button(s)
Accessories
Users manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc
Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
