FAN5234 IC FAN5234MTCX Switch Controller PWM TSSOP-16

*As imagens podem ser ilustrativas

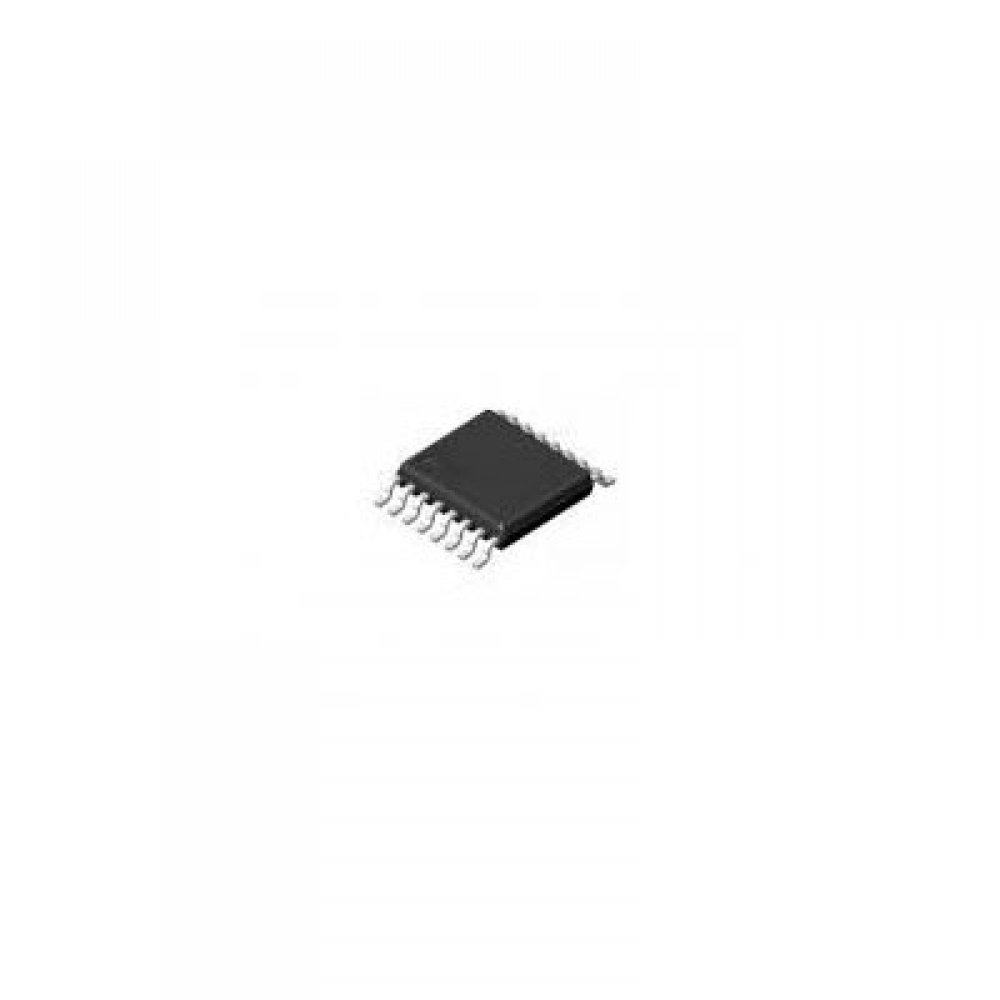

IC FAN5234MTCX Switch Controller PWM TSSOP-16

em estoque, envio imediato

R$ 11,00

à vista no Pix ou Boleto

ou R$ 11,05 em 1x no cartão (via site)

ou R$ 11,67 no cartão em até 10x sem juros (apenas na loja física)

R$ 11,00

à vista no Pix ou Boleto

R$ 11,05
em 1x no cartão (via site)

R$ 11,67 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 11,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar FAN5234

FAN5234 IC FAN5234MTCX Switch Controller PWM TSSOP-16

Condição de FAN5234: Novo em embalagem comercial

Garantia de FAN5234: 3 meses direto com a Net Computadores

Outros PNs para este item: MTC5234C

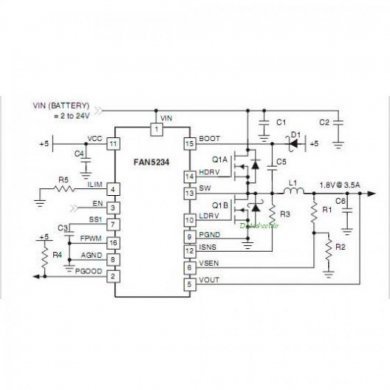

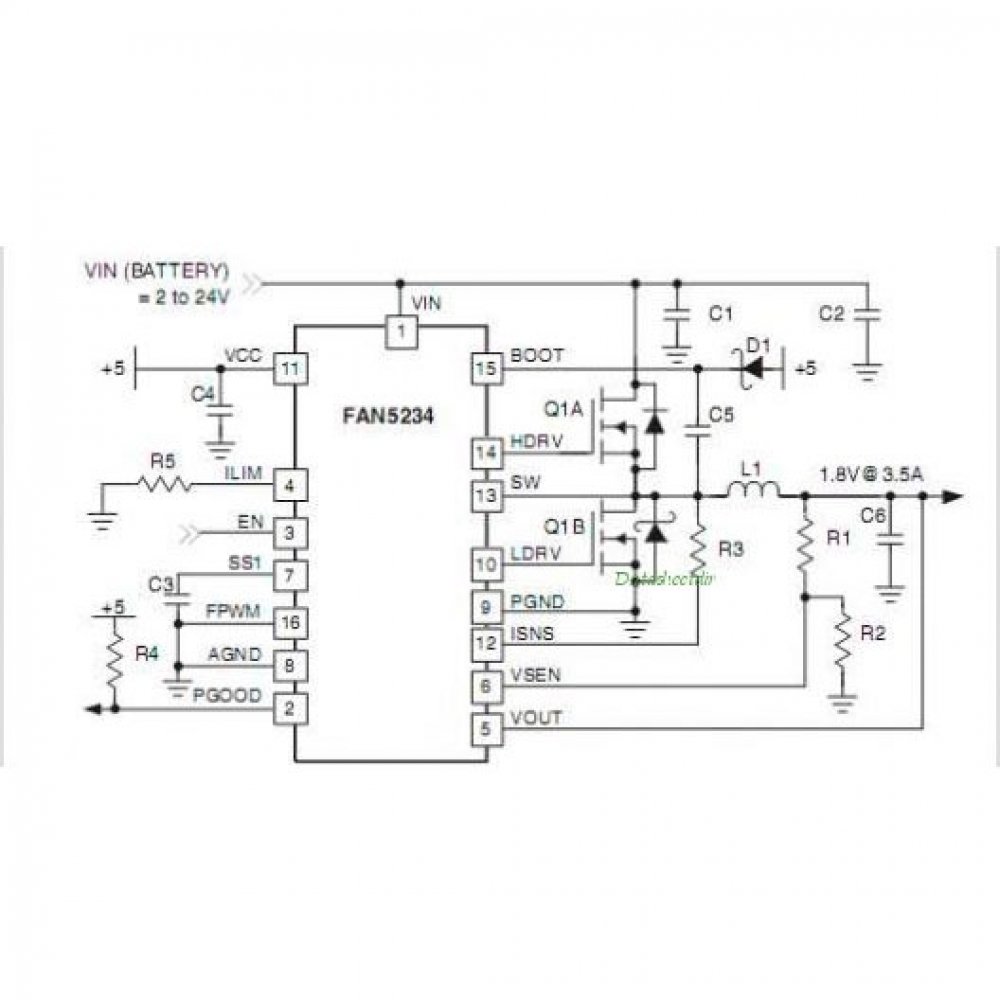

The FAN5234 PWM controller provides high efficiency and regulation with an adjustable output from 0.9 V to 5.5 V required to power I/O, chip-sets, memory banks, or peripherals in high-performance notebook computers, PDAs, and Internet appliances. Synchronous rectification and hysteretic operation at light loads contribute to a high efficiency over a wide range of loads. The Hysteretic Mode of operation can be disabled if PWM Mode is desired for all load levels. Efficiency is further enhanced by using the MOSFET-s RDS(ON) as a current-sense component. Feed-forward ramp modulation, average current mode control, and internal feedback compensation provide fast response to load transients.

The FAN5234 monitors these outputs and generates a PGOOD (power-good) signal when the soft-start is completed and the output is within 10% of its set point. A built-in over-voltage protection prevents the output voltage from going above 120% of the set point. Normal operation is automatically restored when the over-voltage conditions cease. Under-voltage protection latches the chip off when the output drops below 75% of its set value after the soft- start sequence is completed. An adjustable over-current monitors the output current by sensing the voltage drop across the lower MOSFET.

Features
- Wide Input Voltage Range for Mobile Systems: 2 V to 24V
- Excellent Dynamic Response with Voltage Feed-Forward and Average-Current-Mode Control
- Lossless Current Sensing on Low-Side MOSFET or Precision Over-Current via Sense Resistor
- VCC Under-Voltage Lockout
- Power-Good Signal
- Light-Load Hysteretic Mode Maximizes Efficiency
- 300 kHz or 600 kHz Operation
- Operating Temperature Range: -10C to 85C

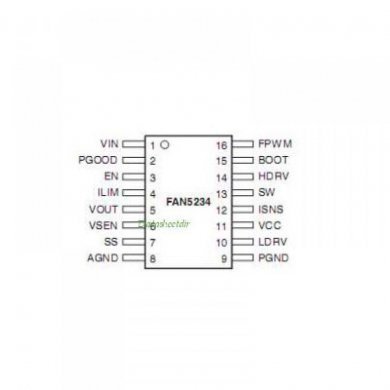

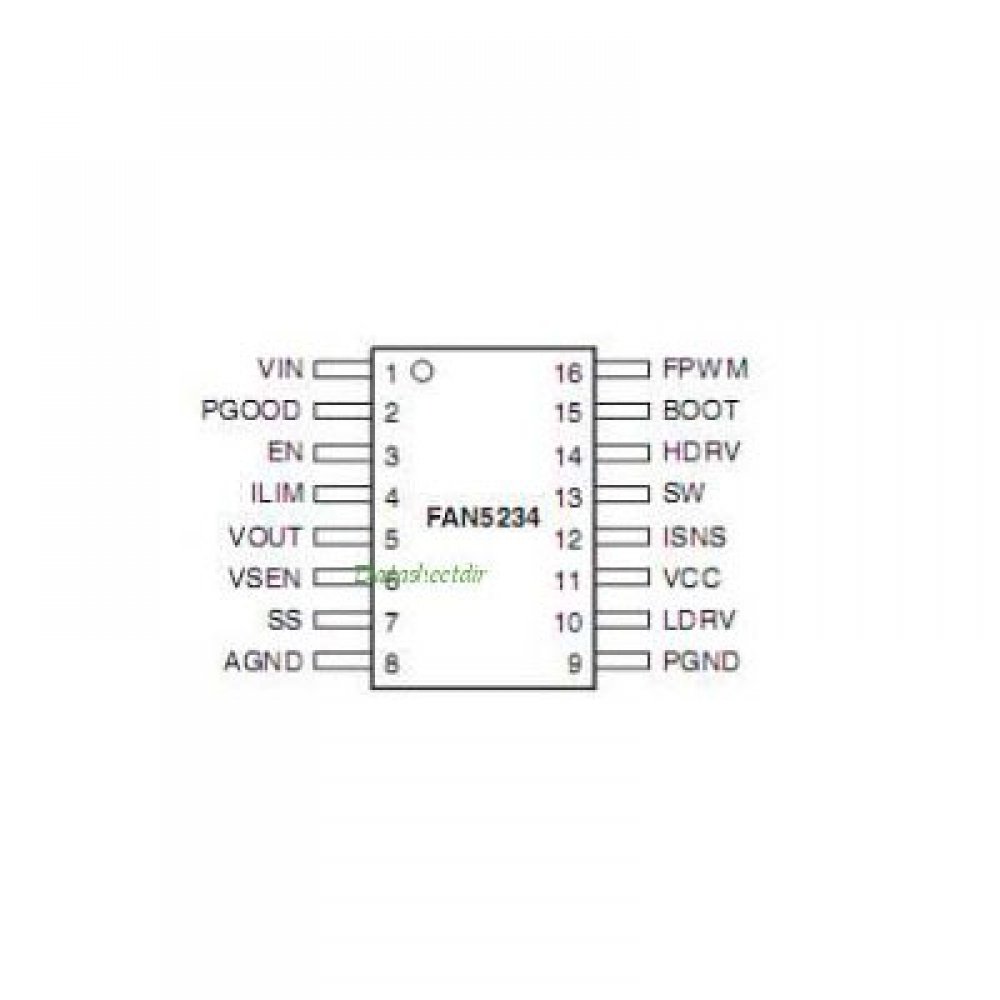

- TSSOP16 Package
- This is a Pb-Free Device Applications
- Mobile PC Regulator - Handheld PC Power

Manufacturer:	Fairchild
Product Category:	Switching Controllers

Topology:	Boost
Number of Outputs:	2 Output
Switching Frequency:	300 kHz to 600 kHz
Duty Cycle - Max:	87 %
Input Voltage:	2 V to 24 V
Output Voltage:	900 mV to 15 V
Output Current:	1.3 mA
Minimum Operating Temperature:	- 10 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	TSSOP-16
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Fairchild
Operating Supply Voltage:	2 V to 24 V
Product:	Voltage Controllers
Product Type:	Switching Controllers
Series:	FAN5234

Maiores detalhes de FAN5234 no site do fabricante:
https://www.onsemi.com/pdf/datasheet/fan5234-d.pdf

Tags de FAN5234: FAN5234MTCX, FAN5234MTC, MTC5234C, ci pwm, pwm controler, controlador PWM, MTC5234, Fairchild Semiconductor

FAN5234 IC FAN5234MTCX Switch Controller PWM TSSOP-16

Condição de FAN5234:
Novo em embalagem comercial

Garantia de FAN5234:
3 meses direto com a Net Computadores

Outros PNs para este componente: MTC5234C

Manufacturer:	Fairchild
Product Category:	Switching Controllers

Topology:	Boost
Number of Outputs:	2 Output
Switching Frequency:	300 kHz to 600 kHz
Duty Cycle - Max:	87 %
Input Voltage:	2 V to 24 V
Output Voltage:	900 mV to 15 V
Output Current:	1.3 mA
Minimum Operating Temperature:	- 10 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	TSSOP-16
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Fairchild
Operating Supply Voltage:	2 V to 24 V
Product:	Voltage Controllers
Product Type:	Switching Controllers
Series:	FAN5234
