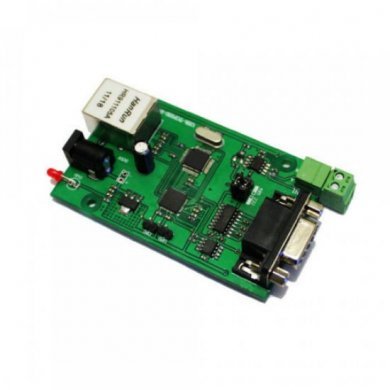

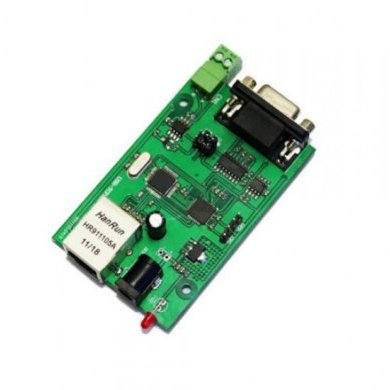

FB091A Conversor RS232 RS485 para LAN RJ45

RS232 RS485 to TCP/IP Ethernet Serial Device Server Module Support Reverse

FB091A - OEM
FB091A Conversor RS232 RS485 para LAN RJ45
FB091A Conversor RS232 RS485 para LAN RJ45
clique para ampliar
*As imagens podem ser ilustrativas
FB091A Conversor RS232 RS485 para LAN RJ45
FB091A Conversor RS232 RS485 para LAN RJ45

R$ 310,00

à vista no Pix ou Boleto

ou R$ 326,18 em 1x no cartão (via site)

ou R$ 344,30 no cartão em até 10x sem juros (apenas na loja física)

R$ 310,00

à vista no Pix ou Boleto

R$ 326,18
em 1x no cartão (via site)

R$ 344,30 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
6 meses direto com a Net Computadores

NCM:
84716052

Condição:
Novo em embalagem antiestática

Garantia:
6 meses direto com a Net Computadores

NCM: 84716052

FB091A Conversor RS232 RS485 para LAN RJ45
RS232 RS485 to TCP/IP Ethernet Serial Device Server Module Support Reverse

Condição de FB091A:    Novo em embalagem antiestática

Garantia  de  FB091A:     6 meses direto com a Net Computadores



32-bit ARM processor to automatically detect 10M/100m Ethernet. Support ETHERNET, ARP, IP, UDP, TCP, ICMP protocol, selectable operating modes: TCP Server, TCP Client, UDP Server, UDP Client mode, support for inter-gateway, cross-routing traffic.

Function:
100M high-speed LAN, 10/100M adaptive Ethernet interface;
Support AUTO MDI / MDIX, Use crossover cable or parallel network connection;
UART baud rate from 1200 bps to 4.6 Mbps can be set;
Work TCP Client, TCP Server, UDP mode, etc.;
Supports virtual serial port operating mode;
Across the gateway, across switches, routers;
Can work in the LAN, you can also work on the Internet;
Working port, destination IP address and port can be easily set up their own; (settings provided by our software settings can also be accessed via the web settings)
Network is disconnected automatically disconnected, ensure that the entire network and reliable TCP connection;
Flexible serial data sub-frame is set to meet user demand for subcontracting;

Parameter
LAN Ethernet: 10/100M bps;
Protection: Built-5KV electromagnetic isolation;
UART serial port * 1: TXD, RXD, GND;
Serial Baud Rate: Baud rate from 1200bps to 4.6Mbps can be set.
Network Protocol: ETHERNET, ARP, IP, UDP, TCP, ICMP;
Tools: Module configuration software, TCP / UDP test tools, serial debugging software;
Configuration: cable, serial, IE page;
Power supply: 5V, 500MA
Mechanical parameters: Module Size (L * W) 80 * 50 (MM) that PCB size;
Operating temperature: Industrial grade -45 ~ 85 C
Preservation of the environment: -40 ~ 85 C, 5 ~ 95% RH.

Opering Mode
Tcp Client
TCP Server
UDP
UDP Server

Tags de FB091A: FB091A, serial lan, lan serial, converdor rs232 lan, rs232 rj45, rs232 para lan, rs232 rj45, lan para rs485, rs485 to lan, RS232 To RS485, RS232 para RS485, RS-422, RS-232, RS-422, RS-485, RS422, HXSP-09F69, Conversor RS232 RS485, RS232 RS485 to TCP/IP, Controladora Serial, USR-TCP232-24, TCP232, OEM, OEM

FB091A Conversor RS232 RS485 para LAN RJ45 RS232 RS485 to TCP/IP Ethernet Serial Device Server Module Support Reverse

Condição de FB091A:
Novo em embalagem antiestática

Garantia  de  FB091A:
6 meses direto com a Net Computadores


32-bit ARM processor to automatically detect 10M/100m Ethernet. Support ETHERNET, ARP, IP, UDP, TCP, ICMP protocol, selectable operating modes: TCP Server, TCP Client, UDP Server, UDP Client mode, support for inter-gateway, cross-routing traffic.

Function:
100M high-speed LAN, 10/100M adaptive Ethernet interface;
Support AUTO MDI / MDIX, Use crossover cable or parallel network connection;
UART baud rate from 1200 bps to 4.6 Mbps can be set;
Work TCP Client, TCP Server, UDP mode, etc.;
Supports virtual serial port operating mode;
Across the gateway, across switches, routers;
Can work in the LAN, you can also work on the Internet;
Working port, destination IP address and port can be easily set up their own; (settings provided by our software settings can also be accessed via the web settings)
Network is disconnected automatically disconnected, ensure that the entire network and reliable TCP connection;
Flexible serial data sub-frame is set to meet user demand for subcontracting;

Parameter
LAN Ethernet: 10/100M bps;
Protection: Built-5KV electromagnetic isolation;
UART serial port * 1: TXD, RXD, GND;
Serial Baud Rate: Baud rate from 1200bps to 4.6Mbps can be set.
Network Protocol: ETHERNET, ARP, IP, UDP, TCP, ICMP;
Tools: Module configuration software, TCP / UDP test tools, serial debugging software;
Configuration: cable, serial, IE page;
Power supply: 5V, 500MA
Mechanical parameters: Module Size (L * W) 80 * 50 (MM) that PCB size;
Operating temperature: Industrial grade -45 ~ 85 C
Preservation of the environment: -40 ~ 85 C, 5 ~ 95% RH.

Opering Mode
Tcp Client
TCP Server
UDP
UDP Server

Tags de FB091A: FB091A, serial lan, lan serial, converdor rs232 lan, rs232 rj45, rs232 para lan, rs232 rj45, lan para rs485, rs485 to lan, RS232 To RS485, RS232 para RS485, RS-422, RS-232, RS-422, RS-485, RS422, HXSP-09F69, Conversor RS232 RS485, RS232 RS485 to TCP/IP, Controladora Serial, USR-TCP232-24, TCP232, OEM, OEM
