R$ 10,00
à vista no Pix ou Boleto
ou R$ 10,53 em 1x no cartão (via site)
ou R$ 11,11 no cartão em até 10x sem juros (apenas na loja física)
R$ 10,00
à vista no Pix ou Boleto
R$ 10,53
em 1x no cartão (via site)
R$ 11,11 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 10,00
à vista no pix
Condição de FDB7030BL: Novo em embalagem comercial
Garantia de FDB7030BL: 3 meses direto com a Net Computadores
| Part Number FDB7030BL |
| Category Transistors - FETs, MOSFETs - Single |
| Manufacturer ON Semiconductor |
| Description MOSFET N-CH 30V 60A TO263AB |
| Package Tape e Reel (TR) |
| Series PowerTrench |
| Operating Temperature -65C ~ 175C (TJ) |
| Mounting Type Surface Mount |
| Package / Case TO-263-3, D²Pak (2 Leads Tab), TO-263AB |
| Supplier Device Package D²PAK (TO-263) |
| Technology MOSFET (Metal Oxide) |
| Power Dissipation (Max) 60W (Tc) |
| FET Type N-Channel |
| Drain to Source Voltage (Vdss) 30 V |
| Current - Continuous Drain (Id) @ 25C 60A (Ta) |
| Rds On (Max) @ Id, Vgs 9mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id 3V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs 24 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds 1760 pF @ 15 V |
| Vgs (Max) 20V |
| Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V |
| Package_case TO-263-3, D²Pak (2 Leads Tab), TO-263AB |
Tags de FDB7030BL: FDP7030BL, FDB7030BL, FDB-7030BL, mosfet 7030BL, mosfet 30V 60A, mosfet 60A, Fairchild Semiconductor

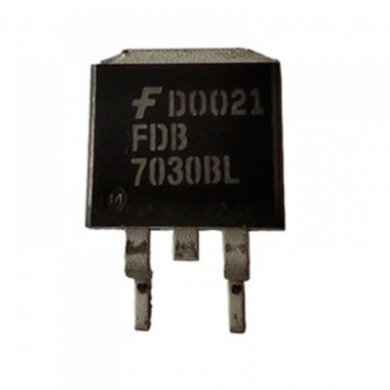

FDB7030BL Transistor MOSFET N-CH 30V 60A 9mOhm TO263AB
Condição de FDB7030BL:
Novo em embalagem comercial
Garantia de FDB7030BL:
3 meses direto com a Net Computadores
| Part Number FDB7030BL |
| Category Transistors - FETs, MOSFETs - Single |
| Manufacturer ON Semiconductor |
| Description MOSFET N-CH 30V 60A TO263AB |
| Package Tape e Reel (TR) |
| Series PowerTrench |
| Operating Temperature -65C ~ 175C (TJ) |
| Mounting Type Surface Mount |
| Package / Case TO-263-3, D²Pak (2 Leads Tab), TO-263AB |
| Supplier Device Package D²PAK (TO-263) |
| Technology MOSFET (Metal Oxide) |
| Power Dissipation (Max) 60W (Tc) |
| FET Type N-Channel |
| Drain to Source Voltage (Vdss) 30 V |
| Current - Continuous Drain (Id) @ 25C 60A (Ta) |
| Rds On (Max) @ Id, Vgs 9mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id 3V @ 250A |
| Gate Charge (Qg) (Max) @ Vgs 24 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds 1760 pF @ 15 V |
| Vgs (Max) 20V |
| Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V |
| Package_case TO-263-3, D²Pak (2 Leads Tab), TO-263AB |
Tags de FDB7030BL: FDP7030BL, FDB7030BL, FDB-7030BL, mosfet 7030BL, mosfet 30V 60A, mosfet 60A, Fairchild Semiconductor
