Cotações
e dúvidas
e dúvidas
R$ 11,00
à vista no Pix ou Boleto
ou R$ 10,83 em 1x no cartão (via site)
ou R$ 11,44 no cartão em até 10x sem juros (apenas na loja física)
R$ 11,00
à vista no Pix ou Boleto
R$ 10,83
em 1x no cartão (via site)
R$ 11,44 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 11,00
à vista no pix
Condição de FDP047AN08A0: Novo em embalagem comercial
Garantia de FDP047AN08A0: 3 meses direto com a Net Computadores
| Manufacturer: | onsemi |
| Product Category: | MOSFET |
| RoHS: | |
| Technology: | Si |
| Mounting Style: | Through Hole |
| Package / Case: | TO-220-3 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 75 V |
| Id - Continuous Drain Current: | 80 A |
| Rds On - Drain-Source Resistance: | 4 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 4 V |
| Qg - Gate Charge: | 92 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 175 C |
| Pd - Power Dissipation: | 310 W |
| Channel Mode: | Enhancement |
| Packaging: | Tube |
| Brand: | onsemi / Fairchild |
| Configuration: | Single |
| Fall Time: | 45 ns |
| Height: | 16.3 mm |
| Length: | 10.67 mm |
| Product Type: | MOSFET |
| Rise Time: | 88 ns |
| Series: | FDP047AN08A0 |
Maiores detalhes de FDP047AN08A0 no site do fabricante:
https://www.onsemi.com/pdf/datasheet/fdh047an08a0-d.pdf
Vídeo de FDP047AN08A0 N-Channel PowerTrench MOSFET 75V 80A TO-220-3
Tags de FDP047AN08A0: 47AN08, fdp047an, FDP047AN08A0, FDP047AN08A0, mosfet de potencia 80A, mosfet canal N 75V 80A, ON Semiconductor
FDP047AN08A0 N-Channel PowerTrench MOSFET 75V 80A TO-220-3
Condição de FDP047AN08A0:
Novo em embalagem comercial
Garantia de FDP047AN08A0:
3 meses direto com a Net Computadores
| Manufacturer: | onsemi |
| Product Category: | MOSFET |
| RoHS: | |
| Technology: | Si |
| Mounting Style: | Through Hole |
| Package / Case: | TO-220-3 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 75 V |
| Id - Continuous Drain Current: | 80 A |
| Rds On - Drain-Source Resistance: | 4 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 4 V |
| Qg - Gate Charge: | 92 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 175 C |
| Pd - Power Dissipation: | 310 W |
| Channel Mode: | Enhancement |
| Packaging: | Tube |
| Brand: | onsemi / Fairchild |
| Configuration: | Single |
| Fall Time: | 45 ns |
| Height: | 16.3 mm |
| Length: | 10.67 mm |
| Product Type: | MOSFET |
| Rise Time: | 88 ns |
| Series: | FDP047AN08A0 |
Maiores detalhes de FDP047AN08A0 no site do fabricante:
https://www.onsemi.com/pdf/datasheet/fdh047an08a0-d.pdf
Vídeo de FDP047AN08A0 N-Channel PowerTrench MOSFET 75V 80A TO-220-3
Tags de FDP047AN08A0: 47AN08, fdp047an, FDP047AN08A0, FDP047AN08A0, mosfet de potencia 80A, mosfet canal N 75V 80A, ON Semiconductor
Semelhantes

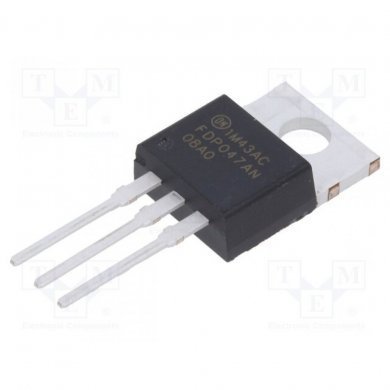

FDP047AN08A0 N-Channel PowerTrench MOSFET 75V 80A TO-220-3
