+ 2 Portas 10/100TX
R$ 1.034,00
à vista no Pix ou Boleto
ou R$ 1.088,02 em 1x no cartão (via site)
ou R$ 1.148,47 no cartão em até 10x sem juros (apenas na loja física)
R$ 1.034,00
à vista no Pix ou Boleto
R$ 1.088,02
em 1x no cartão (via site)
R$ 1.148,47 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 1.034,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses Assist. Técnica do Fabricante
NCM: 85176254
Condição de FSD-1008HP: Novo em embalagem comercial
Garantia de FSD-1008HP: 12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Thermal Fan | Fanless |
| Copper Port | 10 10/100BASE-TX MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 2Gbps/non-blocking |
| Switch Throughput@64 bytes | 1.48Mpps@64 bytes |
| MAC Address Table | 8K entries, automatic source address learning and aging |
| Maximum Frame Size | 1522 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED | System:
10/100BASE-TX RJ45 interfaces:
PoE interfaces:
|
| DIP Switch | Selectable operation mode
|
| Dimensions (W x D x H) | 220 x 150 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1230 g |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation | System On: Max. 2.4 watts/8.1 BTU Ethernet Full Loading: Max. 5 watts/10.2 BTU PoE Full Loading: Max. 129 watts/440.1 BTU |
| ESD Protection | Contact discharge of 4KV DC Air discharge of 6KV DC |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 55V DC, 540mA. max. 30 watts |
| Power Pin Assignment | 1/2( ), 3/6(-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
| FSD-1008HP | 8-Port 10/100TX 802.3at PoE 2-Port 10/100TX Desktop Switch (120 watts) |
Tags de FSD-1008HP: FSD-1008HP, Planet FSD-1008HP, Switch Planet FSD-1008HP, Switch FSD-1008HP, Switch Planet 8 Portas, Switch 8 Portas, Switch Poe Planet, Switch Planet POE, Switch POE, Switch Poe 10/100, PLANET Technology, PLANET Technology

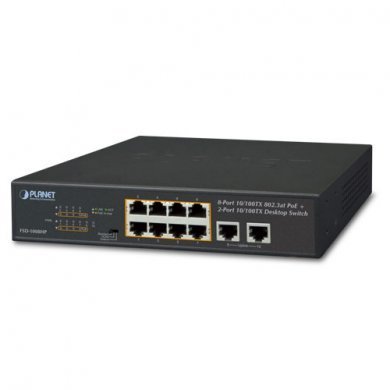

FSD-1008HP Planet Switch 8 Portas POE 10/100TX 802.3at + 2 Portas 10/100TX
Condição de FSD-1008HP:
Novo em embalagem comercial
Garantia de FSD-1008HP:
12 meses Assist. Técnica do Fabricante
| Hardware Specifications | |
|---|---|
| Thermal Fan | Fanless |
| Copper Port | 10 10/100BASE-TX MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3at/af PoE injector with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 2Gbps/non-blocking |
| Switch Throughput@64 bytes | 1.48Mpps@64 bytes |
| MAC Address Table | 8K entries, automatic source address learning and aging |
| Maximum Frame Size | 1522 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED | System:
10/100BASE-TX RJ45 interfaces:
PoE interfaces:
|
| DIP Switch | Selectable operation mode
|
| Dimensions (W x D x H) | 220 x 150 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1230 g |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation | System On: Max. 2.4 watts/8.1 BTU Ethernet Full Loading: Max. 5 watts/10.2 BTU PoE Full Loading: Max. 129 watts/440.1 BTU |
| ESD Protection | Contact discharge of 4KV DC Air discharge of 6KV DC |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 55V DC, 540mA. max. 30 watts |
| Power Pin Assignment | 1/2( ), 3/6(-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information | |
|---|---|
| FSD-1008HP | 8-Port 10/100TX 802.3at PoE 2-Port 10/100TX Desktop Switch (120 watts) |
Tags de FSD-1008HP: FSD-1008HP, Planet FSD-1008HP, Switch Planet FSD-1008HP, Switch FSD-1008HP, Switch Planet 8 Portas, Switch 8 Portas, Switch Poe Planet, Switch Planet POE, Switch POE, Switch Poe 10/100, PLANET Technology, PLANET Technology
