FSP300-601U Fonte Supermicro Sparkle 300W 1U

20 Pinos, 2 Fans (Item Semi- Novo)

FSP300-601U - SUPERMICRO

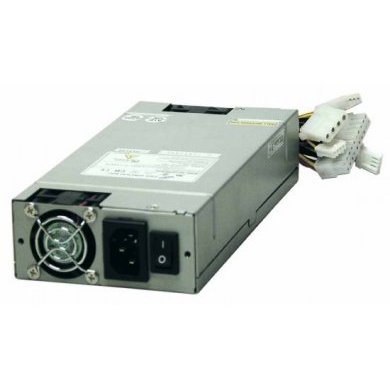

FSP300-601U Fonte Supermicro Sparkle 300W 1U
*As imagens podem ser ilustrativas
Fonte Supermicro Sparkle 300W 1UFonte Supermicro Sparkle 300W 1U

R$ 1.296,00

à vista no Pix ou Boleto

ou R$ 1.364,11 em 1x no cartão (via site)

ou R$ 1.439,90 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.296,00

à vista no Pix ou Boleto

R$ 1.364,11
em 1x no cartão (via site)

R$ 1.439,90 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85044090

Condição:
Seminovo testado e pronto para uso!

Garantia:
3 meses direto com a Net Computadores

NCM: 85044090

FSP300-601U Fonte Supermicro Sparkle 300W 1U
20 Pinos, 2 Fans (Item Semi- Novo)

Condição de FSP300-601U:    Seminovo testado e pronto para uso!

Garantia  de  FSP300-601U:     3 meses direto com a Net Computadores



SPARKLE
Model
FSP300-601U

Details
Type
Complied with ATX and ATX12Vstandard
Single/Redundant
Single
Maximum Power
300W
Main Connector
20Pin
Output
+3.3V@20A; +5V@25A; +12V@16A; -5V@0.3A; -12V@0.8A; +5SB@2A
Input Voltage
90 - 264 V
Input Frequency Range
47 - 63 Hz
Input Current
6A @ 115V, 3A @ 230V
Fans
2
MTBF
100,000 hours on maximum load at +25° C degree
Efficiency
68% at minimum measured at nominal AC main voltage and frequency with maximum load on all output
Hold-up Time
17ms min.

Features
Features
Active Power Factor Correction Meeting with EN61000-3-2
High efficiency and reliability
Remote On/Off function
Internal 12V DC fan included
Noise Killer (Thermal fan speed control function)
Low noise and ripple
Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Approved by UL 60950, CSA C22.2 Level 3, TUV EN60950, NEMKO EN60950 (CB Report), CE

Dimensions & Weight
Dimensions
3.9 x 1.6 x 8.0

Environmental
Humidity
5~95% on operating and storage
Temperature
0° C ~ 40° C on full load

Tags de FSP300-601U: FSP300-601U, FSP300601U, FSP300-60, Fonte Supermicro FSP300-60 1U, Fonte Supermicro FSP300, usado, seminovo, SUPERMICRO

FSP300-601U Fonte Supermicro Sparkle 300W 1U 20 Pinos, 2 Fans (Item Semi- Novo)

Condição de FSP300-601U:
Seminovo testado e pronto para uso!

Garantia  de  FSP300-601U:
3 meses direto com a Net Computadores


SPARKLE
Model
FSP300-601U

Details
Type
Complied with ATX and ATX12Vstandard
Single/Redundant
Single
Maximum Power
300W
Main Connector
20Pin
Output
+3.3V@20A; +5V@25A; +12V@16A; -5V@0.3A; -12V@0.8A; +5SB@2A
Input Voltage
90 - 264 V
Input Frequency Range
47 - 63 Hz
Input Current
6A @ 115V, 3A @ 230V
Fans
2
MTBF
100,000 hours on maximum load at +25° C degree
Efficiency
68% at minimum measured at nominal AC main voltage and frequency with maximum load on all output
Hold-up Time
17ms min.

Features
Features
Active Power Factor Correction Meeting with EN61000-3-2
High efficiency and reliability
Remote On/Off
Internal 12V DC fan included
Noise Killer (Thermal fan speed control )
Low noise and ripple
Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Approved by UL 60950, CSA C22.2 Level 3, TUV EN60950, NEMKO EN60950 (CB Report), CE

Dimensions & Weight
Dimensions
3.9 x 1.6 x 8.0

Environmental
Humidity
5~95% on operating and storage
Temperature
0° C ~ 40° C on full load

Tags de FSP300-601U: FSP300-601U, FSP300601U, FSP300-60, Fonte Supermicro FSP300-60 1U, Fonte Supermicro FSP300, usado, seminovo, SUPERMICRO
