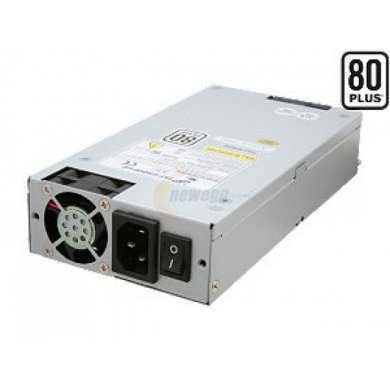

FSP300-701UH Fonte 1U FSP Group 300W 80 PLus Server

Supply Input voltage 90 - 264 V, Input frequency: 47 Hz TO 63 Hz, input current: 5.0, Amps maximum/

FSP300-701UH - OEM
FSP300-701UH Fonte 1U FSP Group 300W 80 PLus Server
*As imagens podem ser ilustrativas
Fonte 1U FSP Group 300W 80 PLus ServerFonte 1U FSP Group 300W 80 PLus ServerFonte 1U FSP Group 300W 80 PLus ServerFonte 1U FSP Group 300W 80 PLus Server

R$ 1.697,00

à vista no Pix ou Boleto

ou R$ 1.786,16 em 1x no cartão (via site)

ou R$ 1.885,39 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.697,00

à vista no Pix ou Boleto

R$ 1.786,16
em 1x no cartão (via site)

R$ 1.885,39 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85043119

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85043119

FSP300-701UH Fonte 1U FSP Group 300W 80 PLus Server
Supply Input voltage 90 - 264 V, Input frequency: 47 Hz TO 63 Hz, input current: 5.0, Amps maximum/

Condição de FSP300-701UH:    Novo em embalagem comercial

Garantia  de  FSP300-701UH:     12 meses direto com a Net Computadores



Features

80 PLUS
Low Ripple & Noise
Output over voltage protection
Short circuit protection on all outputs
Resettable power shut down
INTERNAL 4 cm fan
Dual +12V output (+12V/1,+12V/2)
100% burn-in under high ambient temperature(50℃)
Vacuum-impregnated transformer
MTBF:100K hours at 25℃
100% Hi-pot tested
Line input fuse protection

Specifications

INPUT SPECIFICATIONS
Input voltage:
90 - 264 V
Input frequency: 47 Hz TO 63 Hz
Input current: 5.0 Amps maximum/115 Vrms,60 Hz;
3.0 Amps maximum/230 Vrms,50 Hz;

OUTPUT SPECIFICATIONS
       ˙Over voltage protection: +5V output: 5.85V min, 6.82V max;
+3.3V output: 3.5V min, 4.5V max;
+12V output: 13.4V min, 15.6V max;
       ˙Overload protection: See specification for the detail

GENERAL SPECIFICATIONS
       ˙Hold-up time: 115V/60Hz 17mSec. Minimum@ Full Load
230V/50Hz 17mSec. Minimum@ Full Load
       ˙Efficiency: 80%
       ˙MTBF: 100,000 hours at full load at 25℃
       ˙Power good signal: Turn on delay time 100ms to 500 ms

ENVIRONMENTAL SPECIFICATIONS

      ˙Operating temperature: 0℃ to +50℃
      ˙Storage temperature: -20℃ to +80℃
      ˙Relative humidity: 5% to 95% RH non-condensing

Tags de FSP300-701UH: FSP300701UH, FSP 300 701UH, Fonte 1U 300W, 80 PLus, Fonte Redundante, Fonte DELL, Fonte HP, Fonte IBM, Fonte Proliant, Fonte Server, Fonte de Alimentação, Fonte de servidor, Fonte para Servidor, OEM, =FSP300-701UH, OEM

FSP300-701UH Fonte 1U FSP Group 300W 80 PLus Server Supply Input voltage 90 - 264 V, Input frequency: 47 Hz TO 63 Hz, input current: 5.0, Amps maximum/

Condição de FSP300-701UH:
Novo em embalagem comercial

Garantia  de  FSP300-701UH:
12 meses direto com a Net Computadores


Features

80 PLUS
Low Ripple & Noise
Output over voltage protection
Short circuit protection on all outputs
Resettable power shut down
INTERNAL 4 cm fan
Dual +12V output (+12V/1,+12V/2)
100% burn-in under high ambient temperature(50℃)
Vacuum-impregnated transformer
MTBF:100K hours at 25℃
100% Hi-pot tested
Line input fuse protection

Specifications

INPUT SPECIFICATIONS
Input voltage:
90 - 264 V
Input frequency: 47 Hz TO 63 Hz
Input current: 5.0 Amps maximum/115 Vrms,60 Hz;
3.0 Amps maximum/230 Vrms,50 Hz;

OUTPUT SPECIFICATIONS
       ˙Over voltage protection: +5V output: 5.85V min, 6.82V max;
+3.3V output: 3.5V min, 4.5V max;
+12V output: 13.4V min, 15.6V max;
       ˙Overload protection: See specification for the detail

GENERAL SPECIFICATIONS
       ˙Hold-up time: 115V/60Hz 17mSec. Minimum@ Full Load
230V/50Hz 17mSec. Minimum@ Full Load
       ˙Efficiency: 80%
       ˙MTBF: 100,000 hours at full load at 25℃
       ˙Power good signal: Turn on delay time 100ms to 500 ms

ENVIRONMENTAL SPECIFICATIONS

      ˙Operating temperature: 0℃ to +50℃
      ˙Storage temperature: -20℃ to +80℃
      ˙Relative humidity: 5% to 95% RH non-condensing

Tags de FSP300-701UH: FSP300701UH, FSP 300 701UH, Fonte 1U 300W, 80 PLus, Fonte Redundante, Fonte DELL, Fonte HP, Fonte IBM, Fonte Proliant, Fonte Server, Fonte de Alimentação, Fonte de servidor, Fonte para Servidor, OEM, =FSP300-701UH, OEM
