10/100Base-TX para 100Base-FX Conector SC
R$ 865,00
à vista no Pix ou Boleto
ou R$ 910,53 em 1x no cartão (via site)
ou R$ 961,11 no cartão em até 10x sem juros (apenas na loja física)
R$ 865,00
à vista no Pix ou Boleto
R$ 910,53
em 1x no cartão (via site)
R$ 961,11 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 865,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176294
Condição de FT-802S15: Novo em embalagem comercial
Garantia de FT-802S15: 12 meses direto com a Net Computadores
|
Product |
|
|
Protocol |
IEEE 802.3, 10BASET IEEE 802.3u, 100BASETX IEEE 802.3u, 100BASEFX IEEE 802.3x, Flow Control |
|
Dimensions (W x D x H) |
97 x 69 x 26 mm |
|
Weight |
0.2kg |
|
Power Input |
5V DC, 2A, max. |
|
Power Supply |
AC Adapter 100240VAC Frequency: 5060Hz |
|
Enclosure |
Compactsized metal housing Case with anticorrosion treatment Electrostatic paint |
|
Connectors and Cables |
|
|
Shielded Twistedpair |
RJ45, Category 5 (EIA/TIA 568) |
|
Fiberoptic |
FT801 : ST / Multimode / 2km FT802 : SC / Multimode / 2km FT803: MTRJ / Multimode / 2km FT802S15 : SC / Single mode / 15km FT802S35 : SC / Single mode / 35km FT802S50 : SC / Single mode / 50km FT806A20: WDM SC / Single mode / 20km FT806B20: WDM SC / Single mode / 20km FT806A60: WDM SC / Single mode / 60km FT806B60: WDM SC / Single mode / 60km |
|
Multimode Cable |
50/125, 62.5/125 m |
|
Singlemode (SM) Cable |
9/125 m |
|
Optic Wavelength |
FT801: 1310nm FT802: 1310nm FT803: 1310nm FT802S15: 1310nm FT802S35: 1310nm FT802S50: 1310nm FT806A20: TX: 1310nm; RX: 1550nm FT806B20: TX: 1550nm; RX: 1310nm FT806A60: TX: 1310nm; RX: 1550nm FT806B60: TX: 1550nm; RX: 1310nm |
|
Max. Launch Power (dBm) |
FT801: 14 FT802: 14 FT803: 14 FT802S15:0 FT802S35:8 FT802S50:0 FT806A20:8 FT806B20:8 FT806A60:0 FT806B60:0 |
|
Min. Launch Power (dBm) |
FT801: 20 (62.5/125m), 23.5 (50/125m) FT802: 20 (62.5/125m), 23.5 (50/125m) FT803: 20 (62.5/125m), 23.5 (50/125m) FT802S15: 20 FT802S35: 15 FT802S50:5 FT806A20:14 FT806B20:14 FT806A60:5 FT806B60:5 |
|
Receive Sensitivity (dBm) |
FT801: 31.8 FT802: 31.8 FT803: 31.8 FT802S15: 32 FT802S35:34 FT802S50: 35 FT806A20:31 FT806B20:31 FT806A60:34 FT806B60:34 |
|
Maximum Input Power (dBm) |
FT801: 14 FT802: 14 FT803: 14 FT802S15:0 FT802S35:0 FT802S50:0 FT806A20:0 FT806B20:0 FT806A60:0 FT806B60:0 |
|
Supported Distances and Functions |
|
|
Shielded Twistedpair |
100m (328 ft.) |
|
Multimode Fiber Optic |
412m (1,350 ft.) (halfduplex) 2km (1.2 miles) (fullduplex) |
|
Singlemode (SM) |
412m (1,350 ft.) (halfduplex) 15km (9 miles) (fullduplex) 20km (12 miles) (fullduplex) 35km (21 miles) (fullduplex) 50km (31 miles) (fullduplex) 60km (37 miles) (fullduplex) |
|
Port Mode |
TP: Half and full duplex, autonegotiation FX: Half and full duplex via DIP switch |
|
Environment e Emissions |
|
|
Operating Environment |
Temperature: 0~50 degrees C Humidity: 5~90% noncondensing |
|
Storage Environment |
Temperature: 40~70 degrees C Humidity: 5~90% noncondensing |
|
Emissions |
FCC Class A, CE Class A |
Maiores detalhes de FT-802S15 no site do fabricante:
http://www.planet.com.br/index.php?option=com_k2&view=item&id=260:ft-80x-series&
Tags de FT-802S15: FT-802S15, FT802S15, midea, media, media converter, MC110CS, FT-802-S-15, Conversor de midia, planet, conversor midia, conversor de midia monomodo, conversor 15KM planet, PLANET Technology, FT-802-S15, =FT-802S15, PLANET Technology

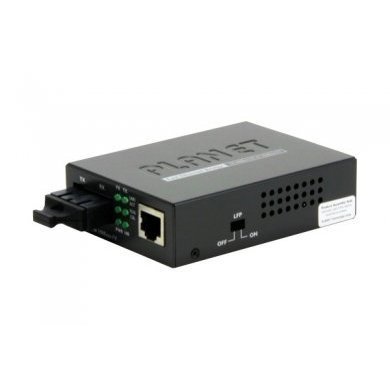

FT-802S15 Planet Conversor de Mídia 10/100 SC 15KM 10/100Base-TX para 100Base-FX Conector SC
Condição de FT-802S15:
Novo em embalagem comercial
Garantia de FT-802S15:
12 meses direto com a Net Computadores
|
Product |
|
|
Protocol |
IEEE 802.3, 10BASET IEEE 802.3u, 100BASETX IEEE 802.3u, 100BASEFX IEEE 802.3x, Flow Control |
|
Dimensions (W x D x H) |
97 x 69 x 26 mm |
|
Weight |
0.2kg |
|
Power Input |
5V DC, 2A, max. |
|
Power Supply |
AC Adapter 100240VAC Frequency: 5060Hz |
|
Enclosure |
Compactsized metal housing Case with anticorrosion treatment Electrostatic paint |
|
Connectors and Cables |
|
|
Shielded Twistedpair |
RJ45, Category 5 (EIA/TIA 568) |
|
Fiberoptic |
FT801 : ST / Multimode / 2km FT802 : SC / Multimode / 2km FT803: MTRJ / Multimode / 2km FT802S15 : SC / Single mode / 15km FT802S35 : SC / Single mode / 35km FT802S50 : SC / Single mode / 50km FT806A20: WDM SC / Single mode / 20km FT806B20: WDM SC / Single mode / 20km FT806A60: WDM SC / Single mode / 60km FT806B60: WDM SC / Single mode / 60km |
|
Multimode Cable |
50/125, 62.5/125 m |
|
Singlemode (SM) Cable |
9/125 m |
|
Optic Wavelength |
FT801: 1310nm FT802: 1310nm FT803: 1310nm FT802S15: 1310nm FT802S35: 1310nm FT802S50: 1310nm FT806A20: TX: 1310nm; RX: 1550nm FT806B20: TX: 1550nm; RX: 1310nm FT806A60: TX: 1310nm; RX: 1550nm FT806B60: TX: 1550nm; RX: 1310nm |
|
Max. Launch Power (dBm) |
FT801: 14 FT802: 14 FT803: 14 FT802S15:0 FT802S35:8 FT802S50:0 FT806A20:8 FT806B20:8 FT806A60:0 FT806B60:0 |
|
Min. Launch Power (dBm) |
FT801: 20 (62.5/125m), 23.5 (50/125m) FT802: 20 (62.5/125m), 23.5 (50/125m) FT803: 20 (62.5/125m), 23.5 (50/125m) FT802S15: 20 FT802S35: 15 FT802S50:5 FT806A20:14 FT806B20:14 FT806A60:5 FT806B60:5 |
|
Receive Sensitivity (dBm) |
FT801: 31.8 FT802: 31.8 FT803: 31.8 FT802S15: 32 FT802S35:34 FT802S50: 35 FT806A20:31 FT806B20:31 FT806A60:34 FT806B60:34 |
|
Maximum Input Power (dBm) |
FT801: 14 FT802: 14 FT803: 14 FT802S15:0 FT802S35:0 FT802S50:0 FT806A20:0 FT806B20:0 FT806A60:0 FT806B60:0 |
|
Supported Distances and Functions |
|
|
Shielded Twistedpair |
100m (328 ft.) |
|
Multimode Fiber Optic |
412m (1,350 ft.) (halfduplex) 2km (1.2 miles) (fullduplex) |
|
Singlemode (SM) |
412m (1,350 ft.) (halfduplex) 15km (9 miles) (fullduplex) 20km (12 miles) (fullduplex) 35km (21 miles) (fullduplex) 50km (31 miles) (fullduplex) 60km (37 miles) (fullduplex) |
|
Port Mode |
TP: Half and full duplex, autonegotiation FX: Half and full duplex via DIP switch |
|
Environment e Emissions |
|
|
Operating Environment |
Temperature: 0~50 degrees C Humidity: 5~90% noncondensing |
|
Storage Environment |
Temperature: 40~70 degrees C Humidity: 5~90% noncondensing |
|
Emissions |
FCC Class A, CE Class A |
Maiores detalhes de FT-802S15 no site do fabricante:
http://www.planet.com.br/index.php?option=com_k2&view=item&id=260:ft-80x-series&
Tags de FT-802S15: FT-802S15, FT802S15, midea, media, media converter, MC110CS, FT-802-S-15, Conversor de midia, planet, conversor midia, conversor de midia monomodo, conversor 15KM planet, PLANET Technology, FT-802-S15, =FT-802S15, PLANET Technology
