G7931D51U IC Two Remote and One Local Temperature Sensors

and 3/4 Fan Controllers with SMBus Interface / TSSOP-20

G7931D51U - Global Mixed-Mode Technology

G7931D51U IC Two Remote and One Local Temperature Sensors

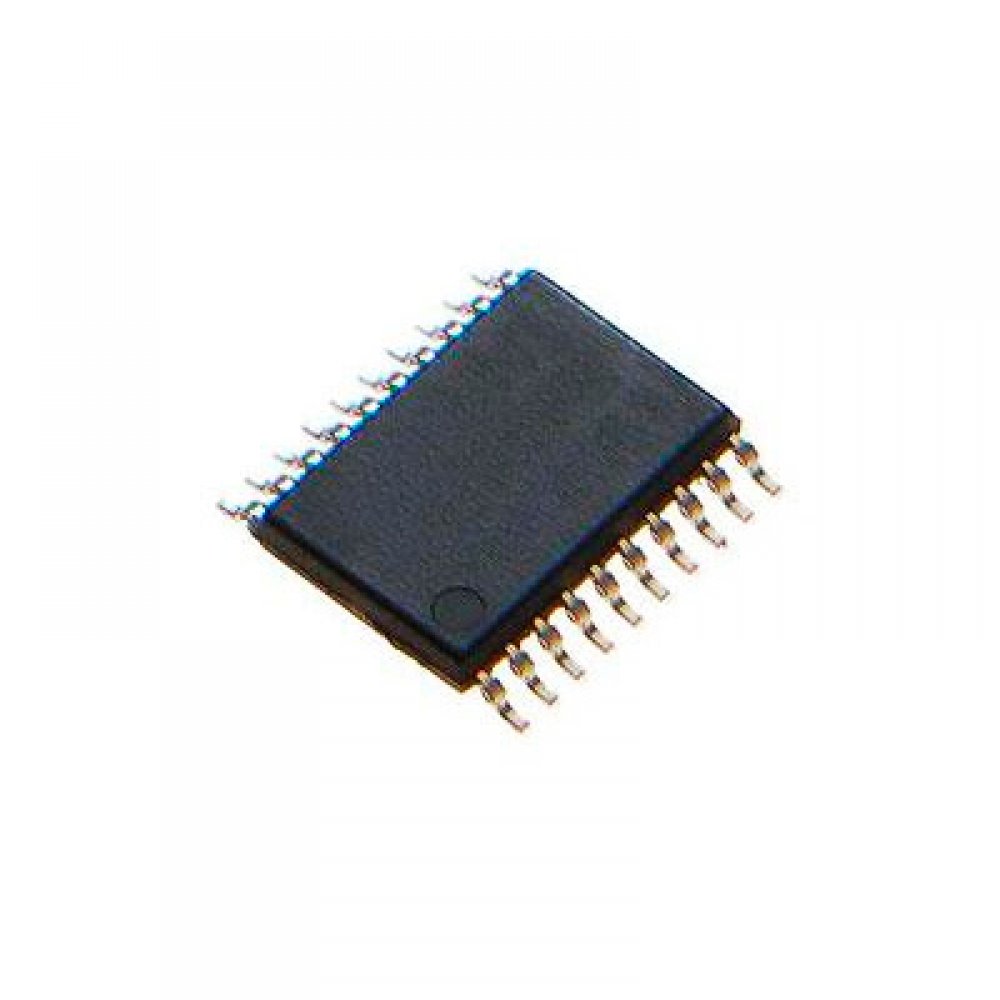

*As imagens podem ser ilustrativas

IC Two Remote and One Local Temperature Sensors

em estoque, envio imediato

R$ 41,00

à vista no Pix ou Boleto

ou R$ 42,63 em 1x no cartão (via site)

ou R$ 45,00 no cartão em até 10x sem juros (apenas na loja física)

R$ 41,00

à vista no Pix ou Boleto

R$ 42,63
em 1x no cartão (via site)

R$ 45,00 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 41,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar G7931D51U

G7931D51U IC Two Remote and One Local Temperature Sensors
and 3/4 Fan Controllers with SMBus Interface / TSSOP-20

Condição de G7931D51U: Novo em embalagem comercial

Garantia de G7931D51U: 3 meses direto com a Net Computadores

Features
- Measures Two Remote and One Local Temperatures
- Adjustable Offset for Each Sensor via SMBus
- Accuracy: Remote ±1°C ( 20°C to 80°C) ±3°C (-10°C to 120°C) 4.5V to 5.5V Supply Range
- Alert Signal for Diode Fault, Fan Fail, and Fan Out of Control
- Supports SMBus Alert Response
- Fan Drivers Using Linear Control Algorithm
- Closed Loop Speed Control and programmable 8 Bits Open Loop Voltage Control for Fan
- Wide speed control range for Fan, Accuracy within 2%, when FANx_SET_CNT > 50
- Internal Current-limit and Over-temperature Protection for the Fan Controllers
- Build-In Inverters for Driving Crystal
- Optional Internal Clock Accuracy ±3% from 20°C to 80°C at 5V VCC 20-Pin TSSOP Package

Applications
- Projector, LCD TV, PDP TV
- Desktop and Notebook
- Central Office Computers
- Telecom Equipments
- Industrial Controls
- LAN Servers

General Description
The G7931/G7932 contains 3 precise digital thermometers, 3/4 fan controllers, fan failure detection. The thermometers report the temperature of 2 remote sensors and 1 local sensor. The remote sensors are diode-connected transistors typically a low-cost, easily mounted 2N3904 NPN type or the diode built-in in CPU. Remote accuracy is ±1°C for multiple transistor manufacturer.

Local accuracy is ±3°C. The G7931/G7932 also support offset adjust function via SMBus to fix the error due to different CPU diode or parasitic resistors. The 2-wire serial interface accepts standard System Management Bus (SMBusTM) Write Byte, Read Byte, Send Byte, and Receive Byte commands. The SMBus address is 70h 72h for write and 7173hh for read for G7932.For G7931, ADD0 pin selects 3 different SMBus addresses. (see ? SMBus Digital Interface? section) G7931/G7932 contains 3/4 fan controllers which perform closed-loop and open-loop control.

G7931/ G7932 determines the current fan speed based on the FG inputs and an externally supplied 32.768kHz clock. The driving ability is 5mA. G7931/G7932 also provides ALERT for fan fail and out of control event.

Maiores detalhes de G7931D51U no site do fabricante:
https://www.datasheets360.com/pdf/4708627088451061454

Tags de G7931D51U: G7931D51U, G7931, G7931D, G7931, G7932, G7932D51U, PDSO20, R-PDSO-G20, Two Remote and One Local Temperature Sensors and 3/4 Fan Controllers with SMBus Interface, TSSOP-20, Global Mixed-Mode Technology
