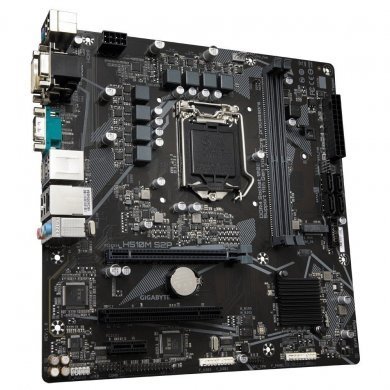

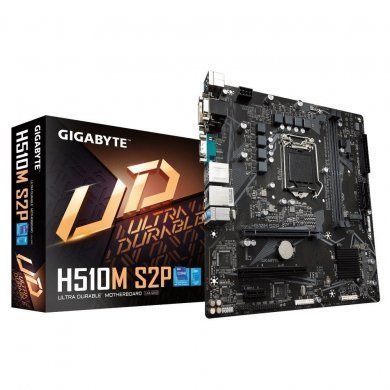

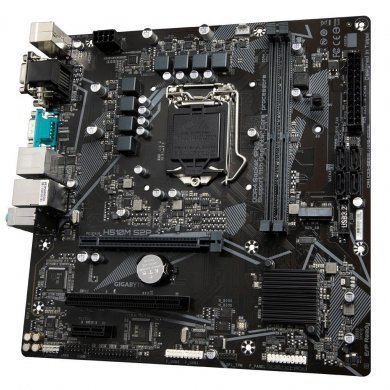

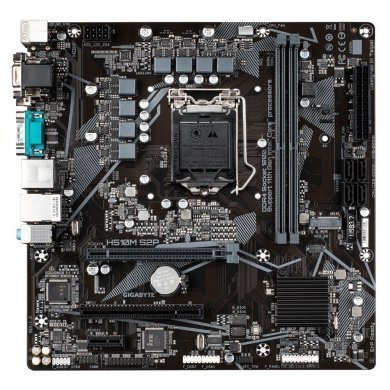

GA-H510M-S2P Gigabyte Placa Mãe H510M S2P para Intel LGA 1200

GA-H510M-S2P Gigabyte Placa Mãe H510M S2P para Intel LGA 1200 3200Mhz mATX VGA/HDMI para Intel de 10ª e 11ª geração

Condição de GA-H510M-S2P:
Novo em embalagem comercial

Garantia  de  GA-H510M-S2P:
12 meses direto com a Net Computadores

1. 11th Generation Intel® Core- i9 processors / Intel® Core- i7 processors / Intel® Core- i5 processors
2. 10th Generation Intel® Core- i9 processors / Intel® Core- i7 processors / Intel® Core- i5 processors / Intel® Core- i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
   * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
3. L3 cache varies with CPU

1. Intel® H510 Express Chipset

1. 11th Generation Intel® Core- i9/i7/i5 processors:
   Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel® Core- i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel® Core- i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software.

1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
   * Supported by 11th Generation processors only.
2. 1 x PCI Express x1 slot (PCIEX1)
   (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
3. 1 x PCI slot

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x2 SSD support)
2. 4 x SATA 6Gb/s connectors
   * Refer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors.

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header)
3. 3 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x parallel port header
14. 1 x Clear CMOS jumper

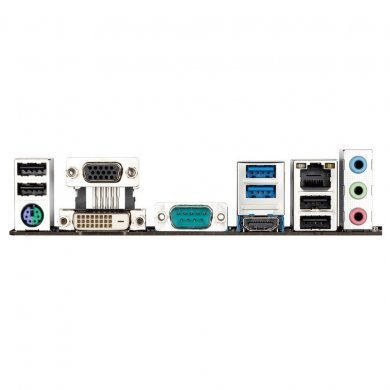

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x serial port
5. 1 x HDMI port
6. 2 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
   * Whether the fan speed control is supported will depend on the cooler you install.

1. Use of licensed AMI UEFI BIOS
2. Support for DualBIOS-
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported s of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

• Pacote de Software

  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Sistema Operacional

  1. Support for Windows 10 64-bit
• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm

Maiores detalhes de GA-H510M-S2P no site do fabricante:
https://www.gigabyte.com/br/Motherboard/H510M-S2P-rev-10/sp#sp
