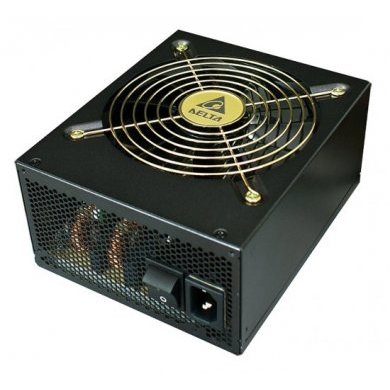

GPS-750ABA Fonte Delta Eletronics Server 750W ATX12

GPS-750ABA Fonte Delta Eletronics Server 750W ATX12 80 PLUS certified

Condição de GPS-750ABA:
Novo em embalagem comercial

Garantia  de  GPS-750ABA:
12 meses direto com a Net Computadores

Features





80 PLUS certified power supply helps reduce the power consumption





Support ATX12V V2.3 and EPS12V V2.92





Active Power Factor Correction with PF>0.9 helps reduce the line loss and improve the voltage stability





+5Vsb rail with 3.5A offers the abundant power for USB charging





Quad 6-Pin PCI-E connectors support dual extreme-edition graphics card





13.5cm fan moves more air quietly to improve the heat dissipaion over the components





Support OCP/OVP/Short Circuit/No Load Protection






MTBF : >=100,000 hours at ambient temperature









SPECIFICATIONS


Model
GPS-750AB A


Dimension
150(W) x 180(D) x 86(H) mm


Fan Size
135mm


Power Efficiency
>80% at 20%, 50% and 100% load; 80+ certified


Power Factor
Active PFC, PF>0.9 at 100% load


AC Input Voltage
Voltage Range: 90-264V; 11-5.5A; Nomial Voltage: 100-120V/200-240V


DC Output

+3.3V


+5V


+12V1


+12V2


+12V3


+12V4


-12V


+5Vsb



Max Current

30A


30A


18A


18A


18A


18A


0.6A


3.5A



Max Combined Power

160W


648W


7.2W


17.5W




727.8W



Max Continuous Power

750W








Maiores detalhes de GPS-750ABA no site do fabricante:
