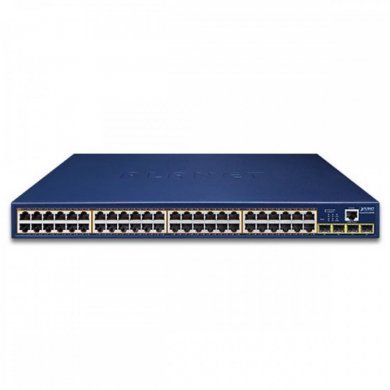

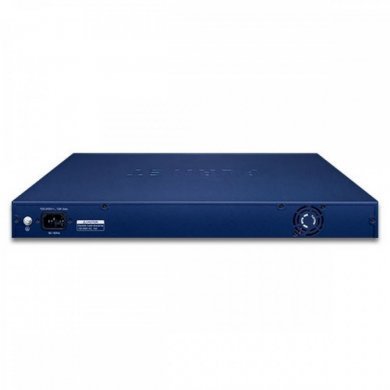

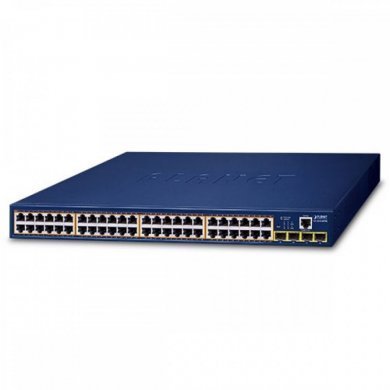

GS-4210-48P4S Planet Switch 48 portas Gigabit 4 portas SFP 10/100/1000T 802.3at PoE
Condição de GS-4210-48P4S:
Novo em embalagem comercial
Garantia de GS-4210-48P4S:
12 meses Assist. Técnica do Fabricante
Hardware Specifications
Hardware Version 3
Copper Ports 48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP/mini-GBIC Slots 4 x 100/1000BASE-X SFP interface
Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 48 ports with 802.3at/af PoE injector
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED System:
-PWR (Power) (Green)
-SYS (System) (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 48):
-10/100/1000Mbps, LNK/ACT (Green)
-PoE-in-Use (Amber)
100/1000Mbps SFP Interfaces (Port 49 to Port 52):
-1000Mbps, LNK/ACT (Green)
-100Mbps, LNK/ACT (Green)
Power Requirements 100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H) 440 x 330 x 44.5 mm, 1U height
ESD Protection 6KV DC
Enclosure Metal
Weight 4872g
Power Consumption 663 watts (max.)/2262 BTU
Fan 4 x fan
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 104Gbps, non-blocking
Switch Throughput@64Bytes 77.38Mpps
Address Table 16K entries
Shared Data Buffer 12 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at PoE PSE
PoE Power Supply Type End-span
PoE Power Output Per port 53V DC, 36 watts (max.)
Power Pin Assignment 1/2( ), 3/6(-)
PoE Power Budget 600 watts (max.) @ 25 degrees C
500 watts (max.) @ 50 degrees C
PoE Ability PD @ 9 watts 48 units
PoE Ability PD @ 15 watts 40 units
PoE Ability PD @ 30 watts 20 units
Layer 2 Functions
Port Mirroring TX/RX / both
Many-to-1 monitor
Up to 4 sessions
VLAN 802.1Q tag-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
STP BPDU Guard, BPDU filtering and BPDU forwarding
IGMP Snooping IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping MLD (v1/v2) snooping, up to 256 multicast groups
QoS 8 mapping IDs to 8 level priority queues
-Port number
-802.1p priority
-802.1Q VLAN tag
-DSCP field in IP packet
Traffic classification based, strict priority and WRR
Ring Supports ERPS, and complies with ITU-T G.8032
Security Functions
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
Port Security IEEE 802.1X Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces Web browser/Telnet/SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE, LVD
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
