8 Portas POE+ 802.3AF/AT 120W (não gerenciável)
R$ 1.235,00
à vista no Pix ou Boleto
ou R$ 1.299,00 em 1x no cartão (via site)
ou R$ 1.371,16 no cartão em até 10x sem juros (apenas na loja física)
R$ 1.235,00
à vista no Pix ou Boleto
R$ 1.299,00
em 1x no cartão (via site)
R$ 1.371,16 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 1.235,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176234
Condição de GSD-1008HP: Novo em embalagem comercial
Garantia de GSD-1008HP: 12 meses direto com a Net Computadores
| Hardware Specifications | |
|---|---|
| Copper Port | 10 10/100/1000BASE-T MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3af/at PoE injector with Port-1 to Port-8 |
| LED Indicators | System:
10/100/1000BASE-T RJ45 interfaces:
PoE interfaces:
|
| DIP Switch | Selectable operation mode
|
| Dimensions (W x D x H) | 220 x 150 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1205 g |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation | System On: Max. 4.1 watts/13.9 BTU PoE Full Loading: Max. 124 watts/423.1 BTU |
| ESD Protection | Contact discharge of 6KV DC Air discharge of 8KV DC |
| Thermal Fan | 1 |
| Switching Specification | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps |
| Switch Throughput@64 bytes | 13.4Mpps@64 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Maximum Frame Size | 9K bytes |
| Buffer Memory | 1Mbits |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 600mA. max. 32 watts |
| Power Pin Assignment | 1/2 ( ), 3/6 (-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Tags de GSD-1008HP: GSD-1008HP, GSD 1008HP, GSD1008HP, switch planet poe, switch planet 8 portas poe+ 2 portas gigabit, switch planet 10 portas poe, switch planet GSD-1008HP, switch planet GSD 1008HP, switch planet GSD1008HP, switch 8 portas poe 120w, switch 10 portas poe 120w, switch 8 portas gigabit poe não gerenciável, switch 10 portas gigabit poe não gerenciável, 10/100/1000mbps, poe+, 802.3af, poe 802.3af, 802.3at, poe 802.3at, poe 120w,, PLANET Technology

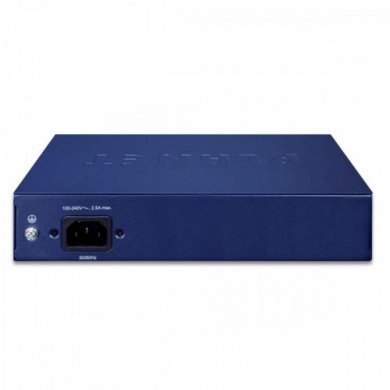

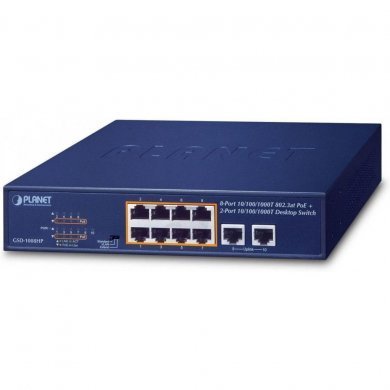

GSD-1008HP Planet Switch 10 Portas RJ45 10/100/1000Mbps 8 Portas POE+ 802.3AF/AT 120W (não gerenciável)
Condição de GSD-1008HP:
Novo em embalagem comercial
Garantia de GSD-1008HP:
12 meses direto com a Net Computadores
| Hardware Specifications | |
|---|---|
| Copper Port | 10 10/100/1000BASE-T MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3af/at PoE injector with Port-1 to Port-8 |
| LED Indicators | System:
10/100/1000BASE-T RJ45 interfaces:
PoE interfaces:
|
| DIP Switch | Selectable operation mode
|
| Dimensions (W x D x H) | 220 x 150 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1205 g |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation | System On: Max. 4.1 watts/13.9 BTU PoE Full Loading: Max. 124 watts/423.1 BTU |
| ESD Protection | Contact discharge of 6KV DC Air discharge of 8KV DC |
| Thermal Fan | 1 |
| Switching Specification | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps |
| Switch Throughput@64 bytes | 13.4Mpps@64 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Maximum Frame Size | 9K bytes |
| Buffer Memory | 1Mbits |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 600mA. max. 32 watts |
| Power Pin Assignment | 1/2 ( ), 3/6 (-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Tags de GSD-1008HP: GSD-1008HP, GSD 1008HP, GSD1008HP, switch planet poe, switch planet 8 portas poe+ 2 portas gigabit, switch planet 10 portas poe, switch planet GSD-1008HP, switch planet GSD 1008HP, switch planet GSD1008HP, switch 8 portas poe 120w, switch 10 portas poe 120w, switch 8 portas gigabit poe não gerenciável, switch 10 portas gigabit poe não gerenciável, 10/100/1000mbps, poe+, 802.3af, poe 802.3af, 802.3at, poe 802.3at, poe 120w,, PLANET Technology
