0/100/1000T + 2-Port 1000X SFP Ethernet Switch with PoE LCD Monitor
R$ 2.407,00
à vista no Pix ou Boleto
ou R$ 2.533,55 em 1x no cartão (via site)
ou R$ 2.674,31 no cartão em até 10x sem juros (apenas na loja física)
R$ 2.407,00
à vista no Pix ou Boleto
R$ 2.533,55
em 1x no cartão (via site)
R$ 2.674,31 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 2.407,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176259
Condição de GSD-1222VHP: Novo em embalagem comercial
Garantia de GSD-1222VHP: 12 meses direto com a Net Computadores
| Hardware Specifications | |
|---|---|
| 802.3af/802.3at PoE Injector Port | 8 |
| 10/100/1000BASE-T MDI/MDIX Ports | 8 |
| 10/100/1000BASE-T MDI/MDIX Ports | 2 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 24Gbps/non-blocking |
| Switch Throughput@64 bytes | 18Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Maximum Frame Size | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| LED | System: Power (Green) PoE interfaces: PoE-in-Use (Orange) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Red) 1000Mbps LNK/ACT (Green) 1000BASE-X SFP Interfaces: LNK/ACT (Green) |
| LCD Monitor (W x D) | 40.6mm x 30.5mm, 2-inch |
| Buttons | Menu, Enter, Back, Up and Down |
| Dimensions (W x D x H) | 180 x 280 x 44mm (1U height) |
| Enclosure | Metal |
| Weight | 1.8kg |
| Power Requirements | 100~240V AC, 50/60Hz, 2.5A max. |
| Power Consumption/Dissipation | Max. 130watts/446 BTU |
| Thermal Fan | 1 |
| ESD Protection | Contact discharge of 6KV DC Air discharge of 8KV DC |
| Surge Protection | 6KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2 ( ), 3/6 (-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 10 ~ 90% (non-condensing) * Temperature<40 degrees C; Humidity<90% Temperature>40 degrees C; Humidity<50% |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Maiores detalhes de GSD-1222VHP no site do fabricante:
http://www.planet.com.br/lan-switches/unmanaged-switch/item/135-gsd-802ps
Tags de GSD-1222VHP: GSD-1222VHP, GSD1222VHP, GSD 1222VHP, Switch POE + SFP, Switch rack de 19, Switch para cameras, Switch WEB Smart com Capacidade para Fibra, Entrada 2 mini-GBIC, Switch POE, Hub 8 portas, Switch Planet, Monitoramento, PLANET Technology

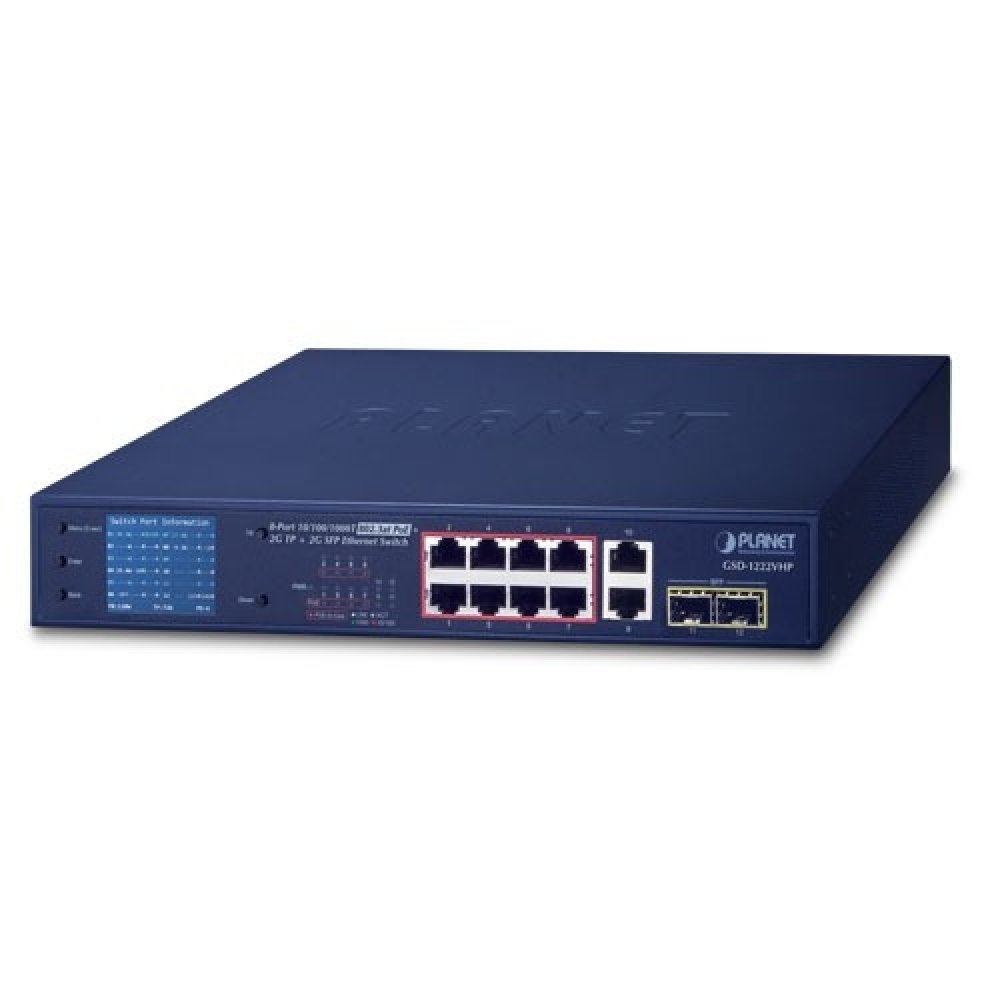

GSD-1222VHP Planet 8-Port 10/100/1000T 802.3at PoE + 2-Port 0/100/1000T + 2-Port 1000X SFP Ethernet Switch with PoE LCD Monitor
Condição de GSD-1222VHP:
Novo em embalagem comercial
Garantia de GSD-1222VHP:
12 meses direto com a Net Computadores
| Hardware Specifications | |
|---|---|
| 802.3af/802.3at PoE Injector Port | 8 |
| 10/100/1000BASE-T MDI/MDIX Ports | 8 |
| 10/100/1000BASE-T MDI/MDIX Ports | 2 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 24Gbps/non-blocking |
| Switch Throughput@64 bytes | 18Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Maximum Frame Size | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| LED | System: Power (Green) PoE interfaces: PoE-in-Use (Orange) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Red) 1000Mbps LNK/ACT (Green) 1000BASE-X SFP Interfaces: LNK/ACT (Green) |
| LCD Monitor (W x D) | 40.6mm x 30.5mm, 2-inch |
| Buttons | Menu, Enter, Back, Up and Down |
| Dimensions (W x D x H) | 180 x 280 x 44mm (1U height) |
| Enclosure | Metal |
| Weight | 1.8kg |
| Power Requirements | 100~240V AC, 50/60Hz, 2.5A max. |
| Power Consumption/Dissipation | Max. 130watts/446 BTU |
| Thermal Fan | 1 |
| ESD Protection | Contact discharge of 6KV DC Air discharge of 8KV DC |
| Surge Protection | 6KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2 ( ), 3/6 (-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 10 ~ 90% (non-condensing) * Temperature<40 degrees C; Humidity<90% Temperature>40 degrees C; Humidity<50% |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Maiores detalhes de GSD-1222VHP no site do fabricante:
http://www.planet.com.br/lan-switches/unmanaged-switch/item/135-gsd-802ps
Tags de GSD-1222VHP: GSD-1222VHP, GSD1222VHP, GSD 1222VHP, Switch POE + SFP, Switch rack de 19, Switch para cameras, Switch WEB Smart com Capacidade para Fibra, Entrada 2 mini-GBIC, Switch POE, Hub 8 portas, Switch Planet, Monitoramento, PLANET Technology
