Fibra Óptica / CONVERSORES DE MÍDIA / MULTIMODO / GST-802

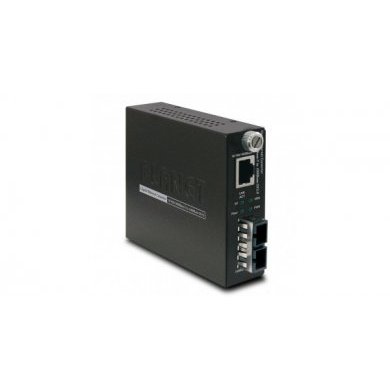

GST-802 Planet Conversor de Midia 550m Multimodo

Name: GST-802 Planet Conversor de Midia 550m Multimodo
Brand: PLANET Technology
SKU: GST-802
Price: 1029.00 BRL
Availability: InStock

10/100/1000Base-T to 1000SX Gigabit Media Converter-550m (SC,MM) Multi-Mode, 850nm

clique para ampliar

*As imagens podem ser ilustrativas

envio de 3 a 9 dias uteis

R$ 1.029,00

à vista no Pix ou Boleto

ou R$ 1.082,86 em 1x no cartão (via site)

ou R$ 1.143,02 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.029,00

à vista no Pix ou Boleto

R$ 1.082,86
em 1x no cartão (via site)

R$ 1.143,02 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176294

R$ 1.029,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176294

Cotação PJ mais de uma unidade

Indicar GST-802

GST-802 Planet Conversor de Midia 550m Multimodo
10/100/1000Base-T to 1000SX Gigabit Media Converter-550m (SC,MM) Multi-Mode, 850nm

Condição de GST-802: Novo em embalagem comercial

Garantia de GST-802: 12 meses direto com a Net Computadores

Hardware Version 3

Standards IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX/LX

Ports 1 x 10/100/1000Base-T port,
1 x 1000Base-SX/LX port

Copper Interface RJ-45 port (Auto-MDI/MDI-X) Twisted Pair

Optic Interface GT-802/GT-802S: SC
GT-805A: SFP
GT-806A15/GT-806B15/GT-806A60/GT-806B60: WDM

Fiber Maximum Distance GT-802: 220 / 550m
GT-802S: 10km
GT-805A: N/A
GT-806A15: 15km
GT-806B15: 15km
GT-806A60: 60km
GT-806B60: 60km

Optic Wavelength GT-802: 850nm
GT-802S: 1310nm
GT-805A: N/A
GT-806A15:
TX:1310nm
RX:1550nm
GT-806B15:
TX:1550nm
RX:1310nm
GT-806A60:
TX:1310nm
RX:1550nm
GT-806B60:
TX:1550nm
RX:1310nm

Max. Optical Launch Power GT-802: -4dBm
GT-802S: -3dBm
GT-805A: N/A
GT-806A15: -3dBm
GT-806B15: -3dBm
GT-806A60: 5dBm
GT-806B60: 4dBm

Min. Optical Launch Power GT-802: -9.5dBm
GT-802S: -9.5dBm
GT-805A: N/A
GT-806A15: -9dBm
GT-806B15: -9dBm
GT-806A60: 0dBm
GT-806B60: -1dBm

Max. Input Power GT-802: N/A
GT-802S: -3
GT-805A: N/A
GT-806A15: -3
GT-806B15: -3
GT-806A60: -2
GT-806B60: -2

Min. Input Power GT-802: -18
GT-802S: -20
GT-805A: N/A
GT-806A15: -21
GT-806B15: -21
GT-806A60: -25
GT-806B60: -25

Optical Link Budget GT-802:
3dB(62.5/125-m)
4dB(50/125-m)
GT-802S: 4.9dB
GT-805A: N/A
GT-806A15: 12dB
GT-806B15: 12dB
GT-806A60: 25dB
GT-806B60: 24dB

Speed Twisted-pair:
10/20Mbps for half/full-duplex
100/200Mbps for half/full duplex
2000Mbps for full-duplex
Fiber-optic: 2000Mbps for full-duplex

Cable Twisted-pair
10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m
100Base-TX: 2-pair UTP Cat. 5, up to 100m
1000Base-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable
50/125-m or 62.5/125-m multi-mode fiber cable, up to
220/550m.
9/125-m single-mode cable, providing long distance for
10/15/20/30/40/50/60/70/120km (vary on fiber transceiver
or SFP module)

LED Indicator â-§PWR
â-§TP LINK/ACT, 1000
â-§Fiber LINK/ACT

DIP Switch LFP (Disable / Enable) setting

OAM TS-1000 and IEEE 802.3ah Terminal mode supported

Jumbo Packet Size 9K

Power Consumption 4.6 watts / 15 BTU (maximum)

Power Input DC 5V / 2A

Dimensions (W x D x H) 26 x 70 x 97 mm

Weight 0.2kg

Operating Environment Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing

Storage Environment storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing

Emissions FCC Class A, CE Class A
