HG5158-28D Antena Hyperlink 28dBi 5.8GHz

Name: HG5158-28D Antena Hyperlink 28dBi 5.8GHz
Brand: HyperLink Technologies
SKU: HG5158-28D
Price: 930.00 BRL
Availability: InStock

Polarização Horizontal ou Vertical, Conector N-Fêmea, Impedância 50 Ohm

clique para ampliar

*As imagens podem ser ilustrativas

envio de 20 a 40 dias uteis

R$ 930,00

à vista no Pix ou Boleto

ou R$ 978,65 em 1x no cartão (via site)

ou R$ 1.033,02 no cartão em até 10x sem juros (apenas na loja física)

R$ 930,00

à vista no Pix ou Boleto

R$ 978,65
em 1x no cartão (via site)

R$ 1.033,02 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85177190

R$ 930,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85177190

Cotação PJ mais de uma unidade

Indicar HG5158-28D

HG5158-28D Antena Hyperlink 28dBi 5.8GHz
Polarização Horizontal ou Vertical, Conector N-Fêmea, Impedância 50 Ohm

Condição de HG5158-28D: Novo em embalagem comercial

Garantia de HG5158-28D: 12 meses Assist. Técnica do Fabricante

Superior Design-Braodband Performance

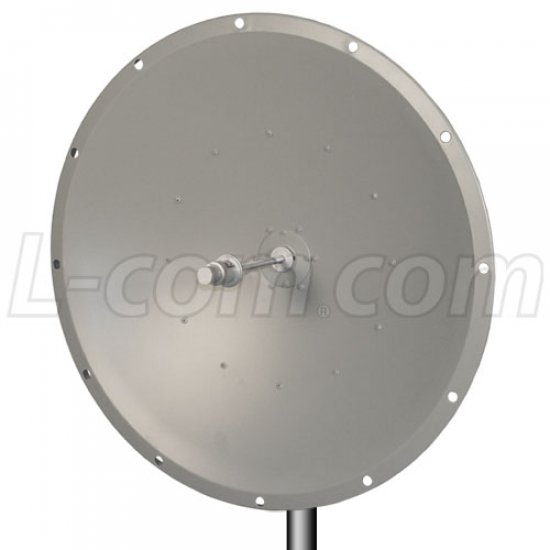

The HyperGain model HG5158-28D is a high performance broadband solid dish antenna designed to operate from 5.1 GHz to 5.8 GHz (5125-5850 MHz). The wide band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplified installations since the same antenna can be used for a wide array of wireless applications. This antenna features 28 dBi of gain with a 6° beam-width. It can be oriented for either vertical or horizontal polarization.
Rugged and Weatherproof
The reflector dish of these antennas are constructed from high quality aluminum which gives them superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. Perforated holes in the dish helps minimize wind loading.

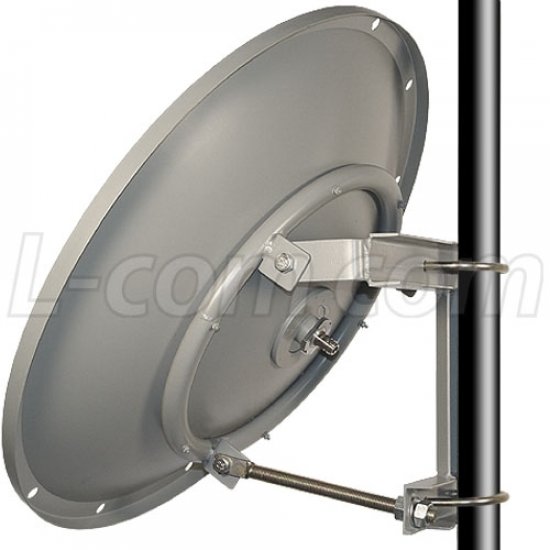

These antennas are supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 30°.
Radome Cover Kits
HyperGain Radome Covers are an ideal way to provide additional protection to our parabolic dish antennas. These light weight radome kits feature fiberglass construction and UV stable gray finish. Drain holes are provided on the radome cover to help prevent moisture build-up inside the dish antenna.
These radome kits bolt directly to the dish antennas with the provided stainless steel hardware. Drilling mountingholes in the antenna is not required. The radome cover can be attached to existing antennas already mounted inthe field or pre-assemble to the antenna before mounting.

Applications

• 5.3 GHz Band, 5.4 GHz Band, 5.8GHz UNII & 5.8GHz ISM applications
• IEEE 802.11a Wireless LAN & Unlicensed European 5.4 GHz Band Applications
• WiMAX Technology & Long-range Directional Applications
• Point to Point, Point to Multi-point Systems & Wireless Bridges
• Backhaul Applications & 5.8 GHz Wireless Video Systems
Especificações
• Frequência: 5150-5850 MHz
• Largura de banda: 700 MHz
• Ganho: 28 dBi
• Polarização: Horizontal ou Vertical
• Largura do feixe horizontal: 6 °
• Largura do feixe vertical: 6 °
• De frente para trás Ratio: ≥ 35 dB
• Isolamento: ≥ 28 dB
• Impedância: 50 Ohm
• Max. Poder de entrada: 100 Watts

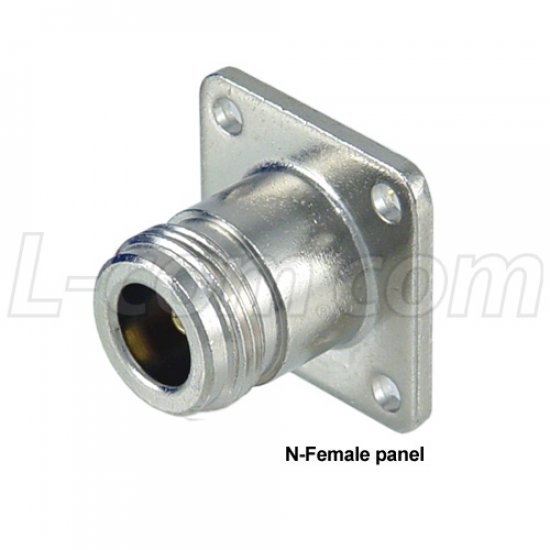

• Conectores: N-Fêmea
• RoHS Compliant: Sim
