HIN202EIBN-ND Intersil IC TX-RX Transceiver Full RS232

5V ESD 16-SOIC

HIN202EIBN-ND Intersil IC TX-RX Transceiver Full RS232

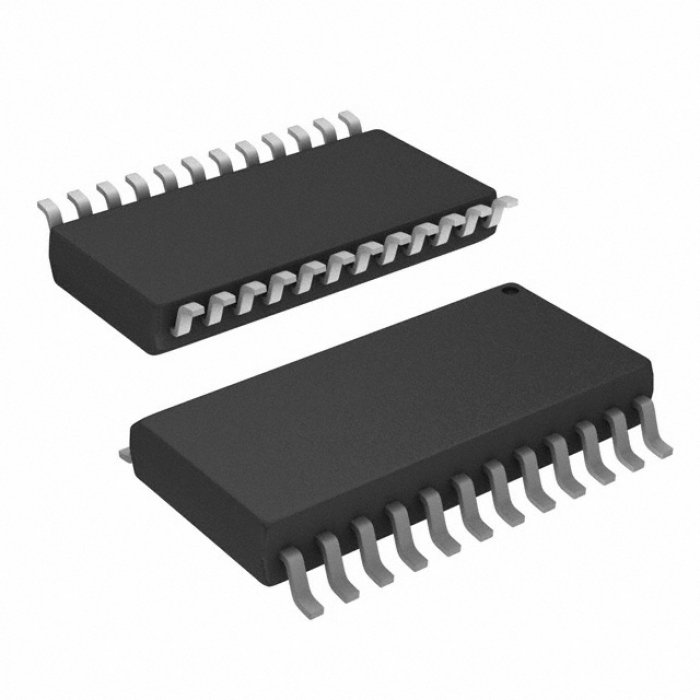

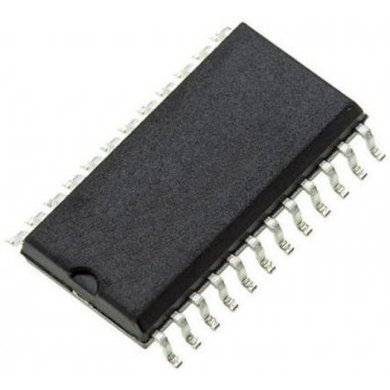

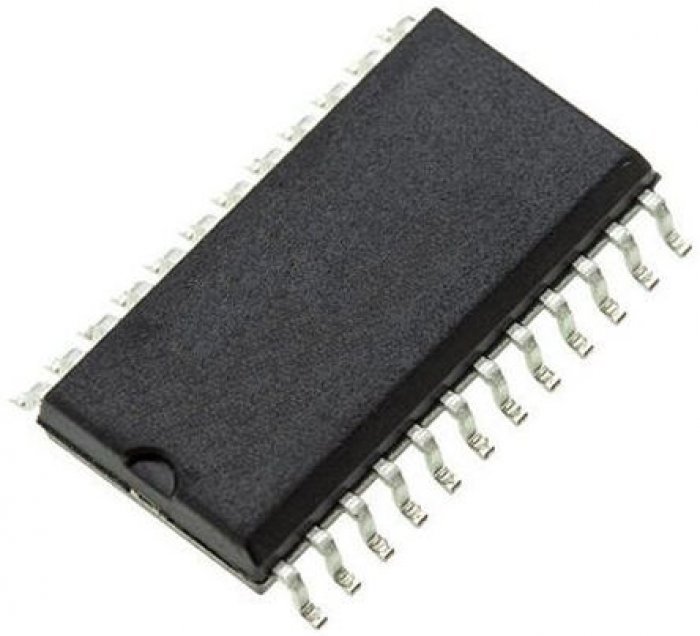

*As imagens podem ser ilustrativas

Intersil IC TX-RX Transceiver Full RS232

Você pode comprar e retirar este item na loja física da Net Computadores ou também pelo site, entregamos em todo Brasil

em estoque, envio imediato

R$ 11,27

à vista no Pix ou Boleto

ou R$ 11,87 em 1x no cartão (via site)

ou R$ 12,52 no cartão em até 10x sem juros (apenas na loja física)

R$ 11,27

à vista no Pix ou Boleto

R$ 11,87
em 1x no cartão (via site)

R$ 12,52 no cartão
em até 10x sem juros
(apenas na loja física)

Adicionar ao carrinho

Condição:

novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85044060

cotar HIN202EIBN-ND

indicar HIN202EIBN-ND

R$ 11,27

à vista no pix

Comprar

Condição:
novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85044060

HIN202EIBN-ND Intersil IC TX-RX Transceiver Full RS232
5V ESD 16-SOIC

Condição de HIN202EIBN-ND: novo em embalagem comercial

Garantia de HIN202EIBN-ND: 3 meses direto com a Net Computadores

The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where 12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to 15kV ESD (Electrostatic Discharge). They require a single 5V power supply and feature onboard charge pump voltage converters which generate 10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of high-speed RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table).
Features
Pb-Free Plus Anneal Available (RoHS Compliant)
High Speed ISDN Compatible . . . . . . . . . . . . . 230kbits/s
ESD Protection for RS-232 I/O Pins to 15kV (IEC61000)
Meets All RS-232E and V.28 Specifications
Requires Only 0.1F or Greater External Capacitors
Two Receivers Active in Shutdown Mode (HIN213E)
Requires Only Single 5V Power Supply
Onboard Voltage Doubler/Inverter
Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA
Low Power Shutdown Function (Typ) . . . . . . . . . . . . .1A
Three-State TTL/CMOS Receiver Outputs

Multiple Drivers
   - 10V Output Swing for 5V Input
   - 300 Power-Off Source Impedance
   - Output Current Limiting
   - TTL/CMOS Compatible
Multiple Receivers
   - 30V Input Voltage Range
   - 3k to 7k Input Impedance
   - 0.5V Hysteresis to Improve Noise Rejection

Applications
Any System Requiring High-Speed RS-232 Communications Port
   - Computer - Portable, Mainframe, Laptop
   - Peripheral - Printers and Terminals
   - Instrumentation, UPS
   - Modems, ISDN Terminal Adaptors

Maiores detalhes de HIN202EIBN-ND no site do fabricante:
http://www.semictrade.com/_obchody/semic.obchodak.net/prilohy/6614/hin202eibn-il

Tags de HIN202EIBN-ND: HIN202EIBN, HIN202EIBN-ND, IC TXRX RS-232 5V ESD 16-SOIC, RS-232 Communications Port, RS232, Driver RS232, Driver RS-232, Chip RS-232, IC RS232, HIN202EIBN-T-ND, HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E, Intersil Corporation, Intersil Corporation
